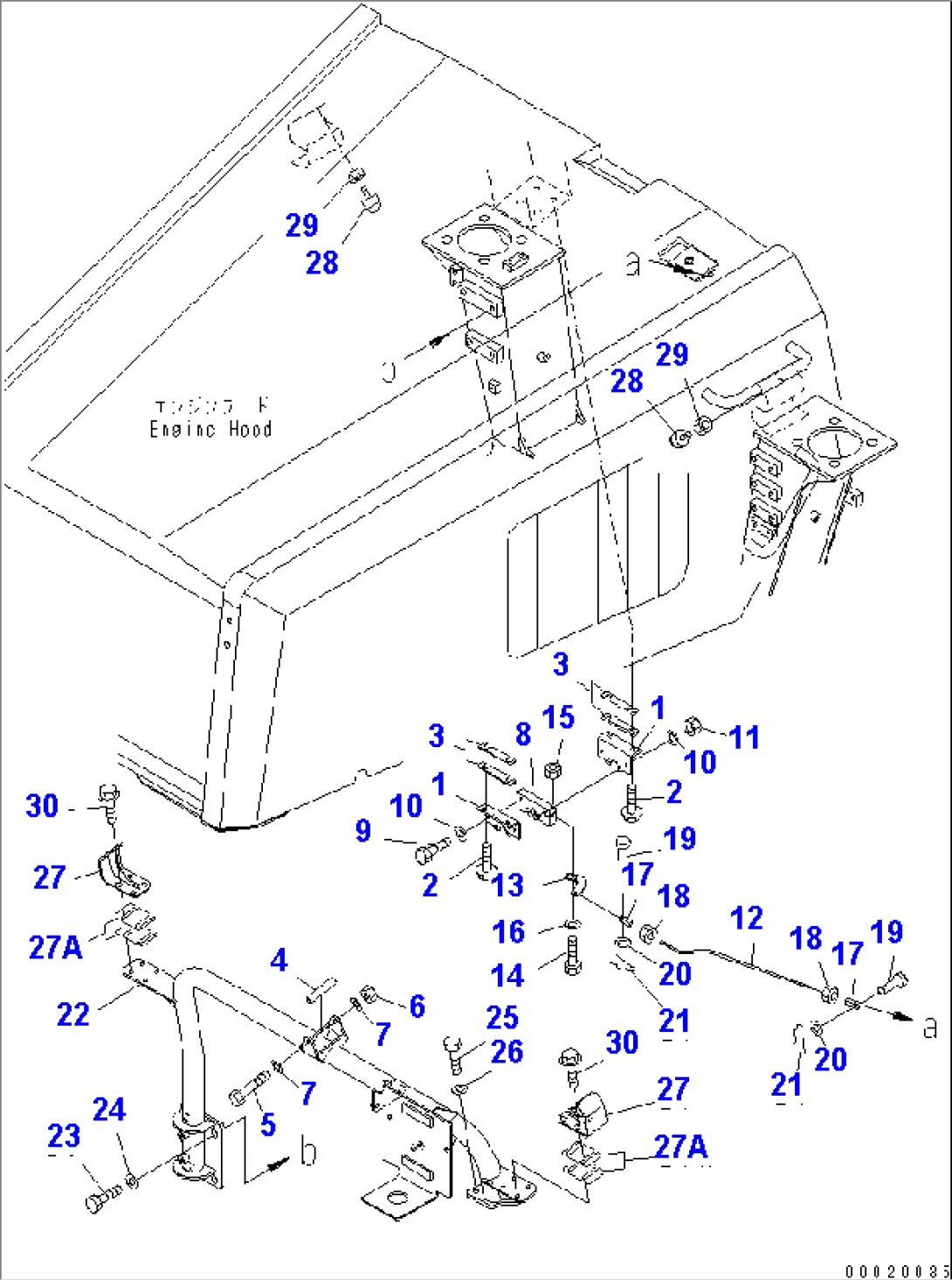

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-54-11550 | PLATE | 1001-1172 | |
| 2 | 01435-00825 | BOLT | 1001-1172 | |
| 3 | 56B-54-11640 | SHIM, 2.3MM | 1001-1172 | |
| 3 | 56B-54-11650 | SHIM, 4.5MM | 1001-1172 | |
| 4 | 56B-54-11520 | TUBE | 1001-@ | |
| 5 | 01011-81020 | BOLT | 1001-@ | |
| 6 | 01580-11008 | NUT | 1001-@ | |
| 7 | 01643-31032 | WASHER | 1001-@ | |
| 8 | 56B-54-11540 | LOCK ASS'Y | 1001-1172 | |
| 9 | 01010-80640 | BOLT | 1001-1172 | |
| 10 | 01643-30623 | WASHER | 1001-1172 | |
| 11 | 01580-10605 | NUT | 1001-1172 | |
| 12 | 56D-54-11530 | ROD | 1001-1172 | |
| 13 | 56B-54-11660 | PLATE | 1001-1172 | |
| 14 | 01010-80625 | BOLT | 1001-1172 | |
| 15 | 01580-10605 | NUT | 1001-1172 | |
| 16 | 01643-30623 | WASHER | 1001-1172 | |
| 17 | 1B0-43-16140 | YOKE | 1001-1172 | |
| 18 | 01580-10806 | NUT | 1001-1172 | |
| 19 | 04205-10622 | PIN | 1001-@ | |
| 20 | 01640-20610 | WASHER | 1001-@ | |
| 21 | 04052-10633 | PIN,SNAP | 1001-@ | |
| 22 | 56D-54-11482 | BRACKET | 1001-@ | |
| 23 | 01010-81635 | BOLT | 1001-@ | |
| 24 | 01643-31645 | WASHER | 1001-@ | |
| 25 | 01010-81230 | BOLT | 1001-@ | |
| 26 | 01643-31232 | WASHER | 1001-@ | |
| 27 | 56B-54-11491 | BRACKET | 1001-@ | |
| 27A | 56D-54-11410 | SHIM, 1.2MM | 1001-@ | |
| 28 | 09453-00002 | STOPPER | 1001-1172 | |
| 29 | 01580-11210 | NUT | 1001-1172 | |
| 30 | 01435-00820 | BOLT | 1001-@ |
