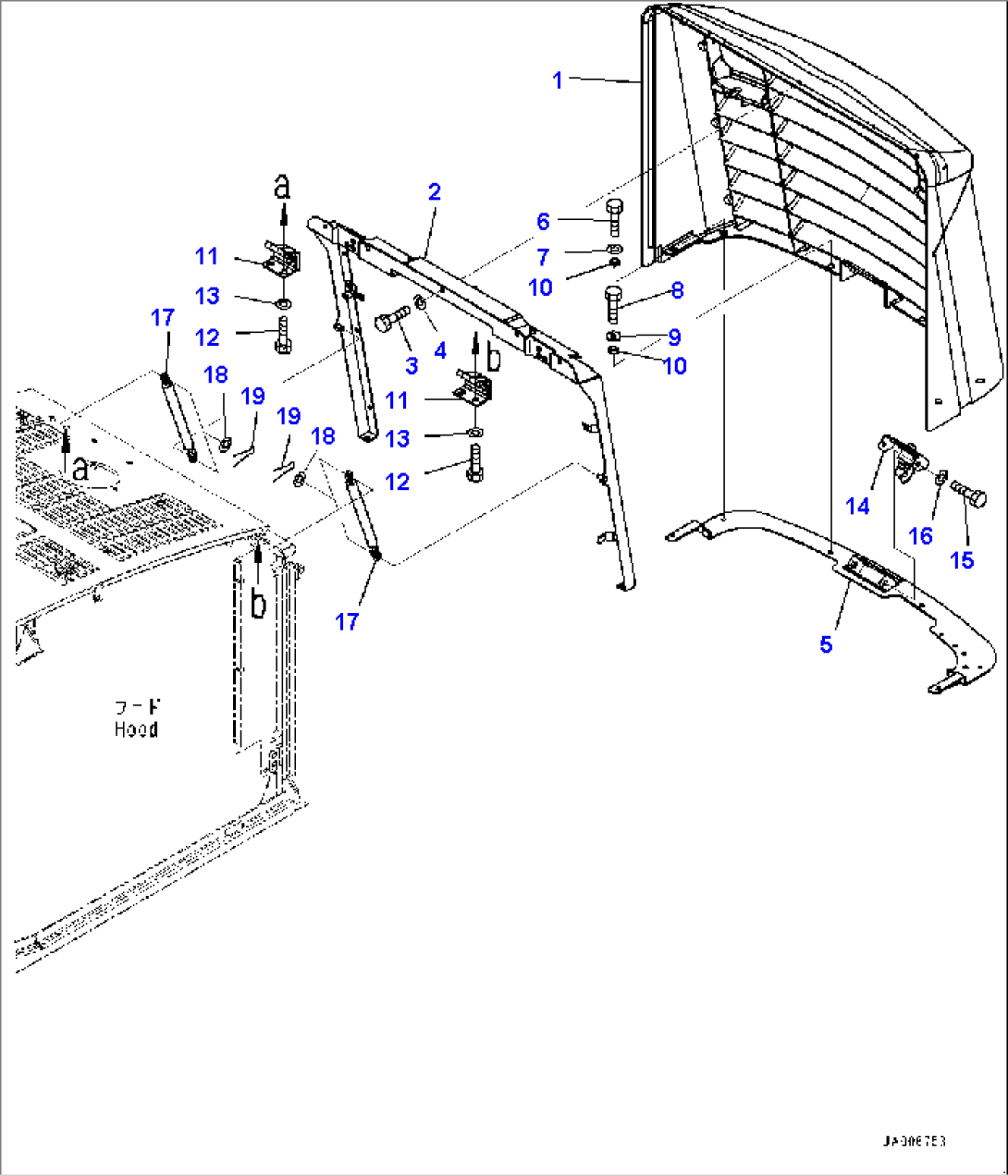

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-54-31142 | Grille | 75750-@ | |
| 2 | 418-54-41150 | Bracket | 75750-@ | |
| 3 | 01010-80820 | Bolt | 75750-@ | |
| 4 | 01643-30823 | Washer | 75750-@ | |
| 5 | 417-54-41160 | Bracket | 76045-76083 | |
| 6 | 01010-D0820 | Bolt | 75750-@ | |
| 7 | 01643-70823 | Washer | 75750-@ | |
| 8 | 01010-D0820 | Bolt | 75750-@ | |
| 9 | 418-54-35450 | Washer | 75750-@ | |
| 10 | 418-54-31970 | Spacer | 75750-@ | |
| 11 | 418-54-31172 | Hinge | 75750-@ | |
| 12 | 01010-81020 | Bolt | 75750-@ | |
| 13 | 01643-31032 | Washer | 75750-@ | |
| 14 | 416-54-33170 | Lock Assembly | 76045-@ | |
| 15 | 01252-70816 | Bolt | 75750-@ | |
| 16 | 01643-30823 | Washer | 75750-@ | |
| 17 | 418-54-31281 | Spring, Gas | 75750-@ | |
| 18 | 01640-20816 | Washer | 75750-@ | |
| 19 | 04050-12015 | Pin, Cotter | 75750-@ |
