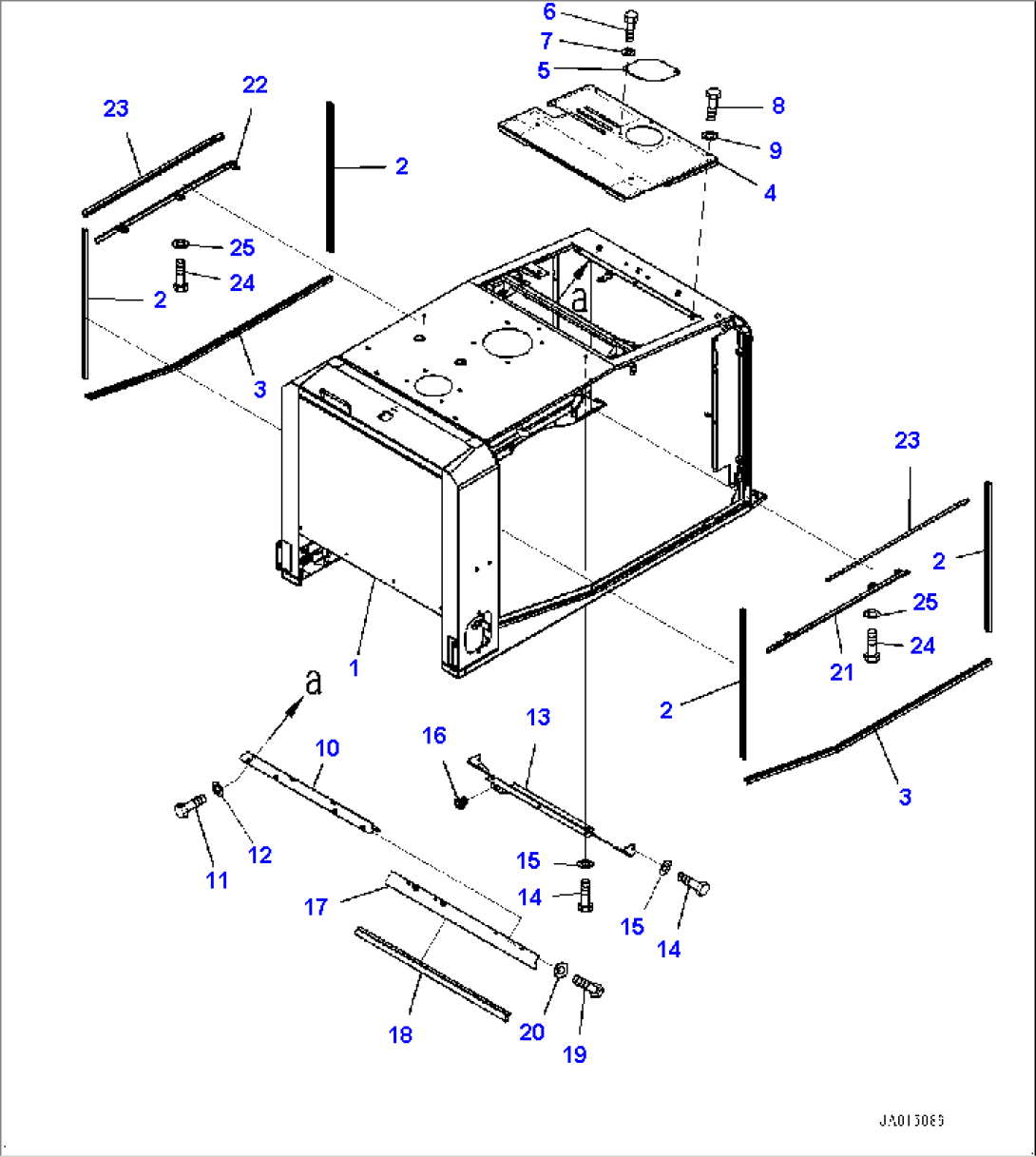

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-54-52112 | Hood | 80310- | |
| 1 | 417-54-52111 | Hood | 80001-80309 | |
| 2 | 417-54-52481 | Seal | 80001- | |
| 3 | 417-54-52512 | Seal | 80001- | |
| 4 | 417-54-52170 | Cover | 80001- | |
| 5 | 419-54-48411 | Plate | 80001- | |
| 6 | 01010-80816 | Bolt | 80310- | |
| 6 | 01010-81016 | Bolt | 80001-80309 | |
| 7 | 01643-30823 | Washer | 80310- | |
| 7 | 01643-31032 | Washer | 80001-80309 | |
| 8 | 01010-81020 | Bolt | 80001- | |
| 9 | 01643-31032 | Washer | 80001- | |
| 10 | 417-54-51570 | Bracket | 80001- | |
| 11 | 01010-80816 | Bolt | 80001- | |
| 12 | 01643-30823 | Washer | 80001- | |
| 13 | 417-54-51560 | Bracket | 80001- | |
| 14 | 01010-80816 | Bolt | 80001- | |
| 15 | 01643-30823 | Washer | 80001- | |
| 16 | 08037-11825 | Grommet | 80001- | |
| 17 | 417-54-51170 | Plate | 80001- | |
| 18 | 417-54-51630 | Seal | 80001- | |
| 19 | 01010-80816 | Bolt | 80001- | |
| 20 | 01643-30823 | Washer | 80001- | |
| 21 | 417-54-51711 | Bracket | 80001- | |
| 22 | 417-54-51721 | Bracket | 80001- | |
| 23 | 417-54-51730 | Seal | 80001- | |
| 24 | 01010-81020 | Bolt | 80001- | |
| 25 | 01643-31032 | Washer | 80001- |
