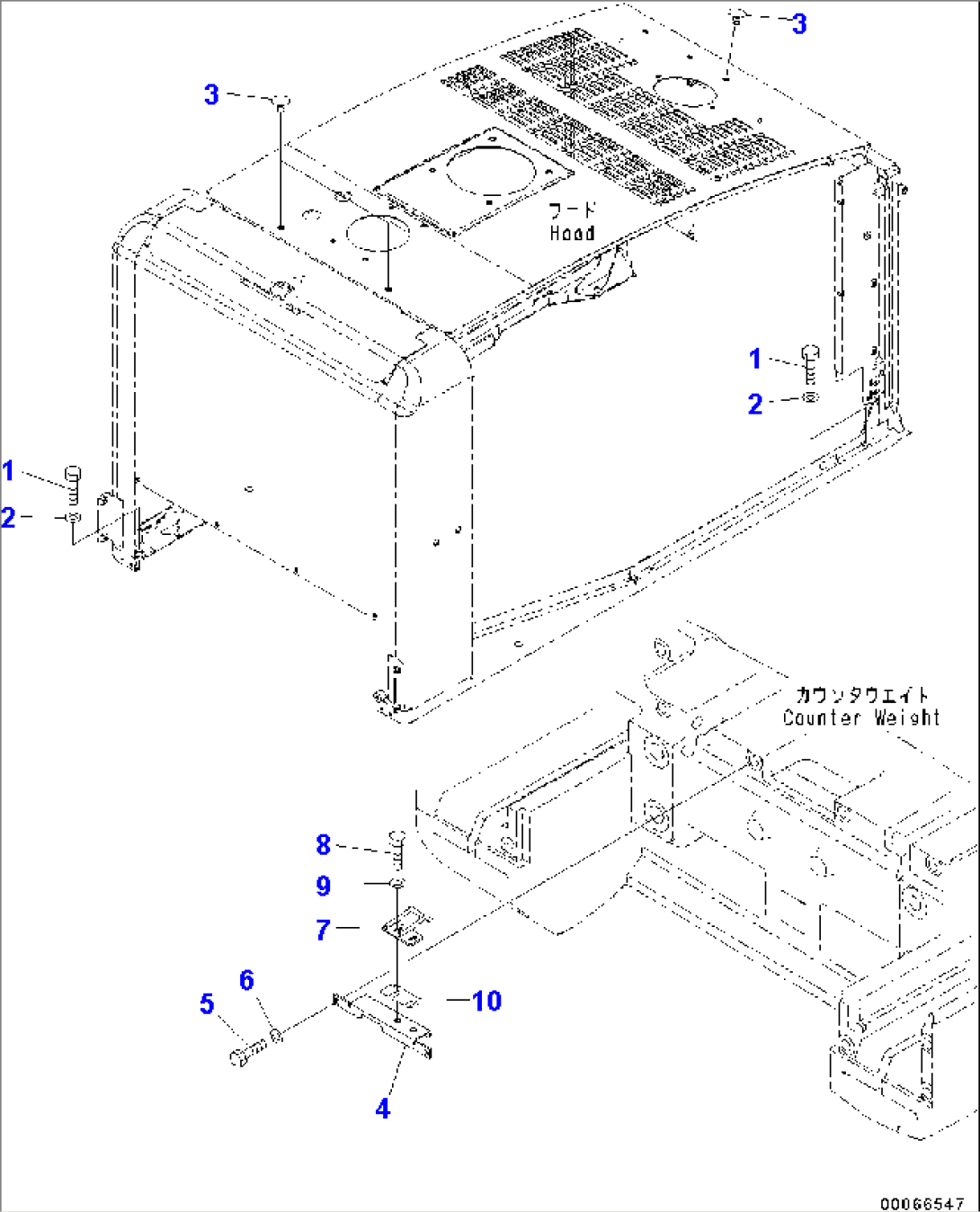

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81230 | Bolt | C10001- | |
| 2 | 01643-31232 | Washer | C10001- | |
| 3 | 416-54-21710 | Plug | C10001- | |
| 4 | 418-54-31253 | Bracket | C10001- | |
| 5 | 01010-81020 | Bolt | C10001- | |
| 6 | 01643-31032 | Washer | C10001- | |
| 7 | 418-54-31264 | Striker | C10001- | |
| 8 | 01010-81025 | Bolt | C10001- | |
| 9 | 01643-31032 | Washer | C10001- | |
| 10 | 418-54-34151 | Shim | C10001- |
