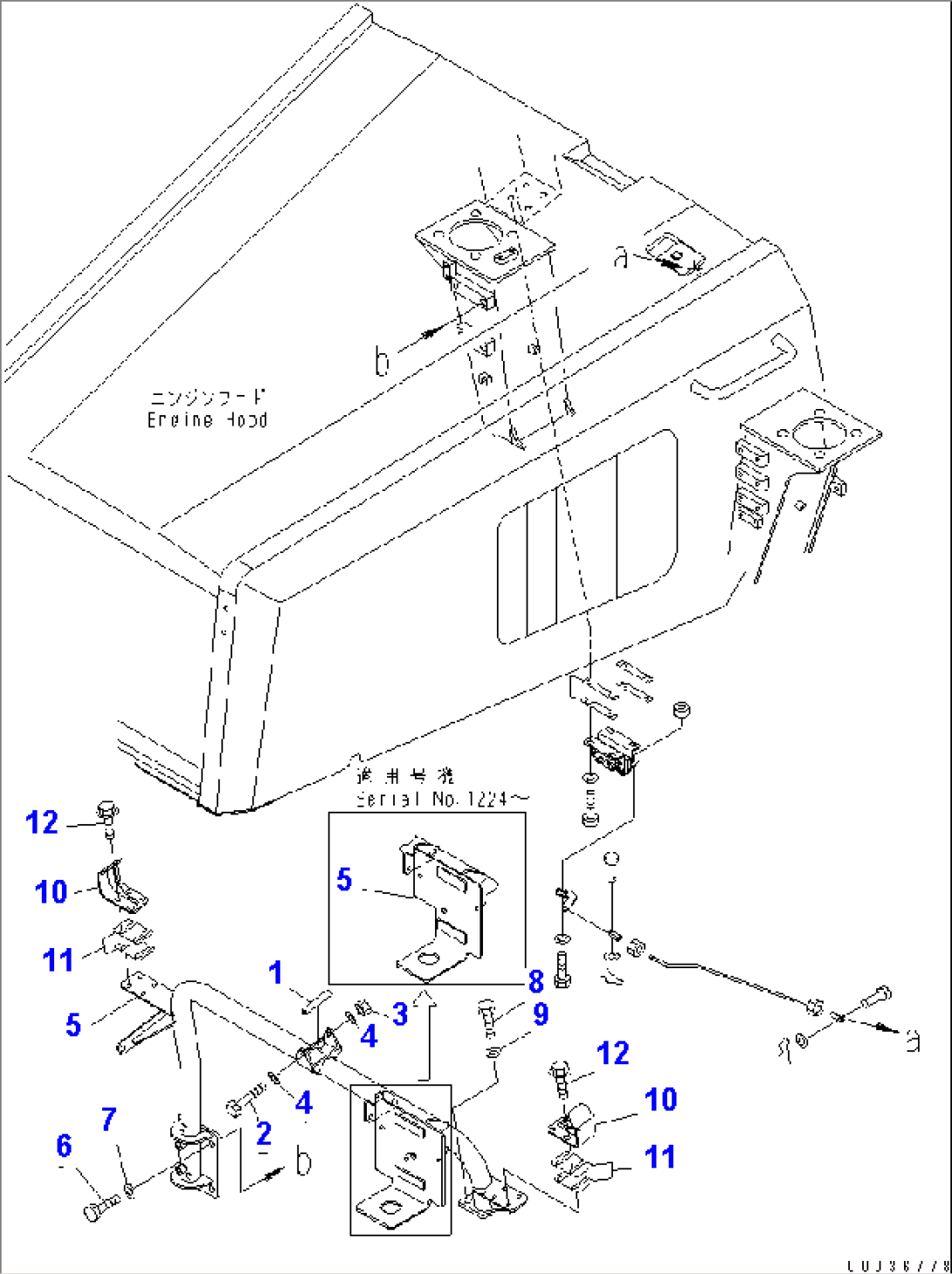

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-54-11521 | TUBE | 1629- | |
| 1 | 56B-54-11520 | TUBE | 1001-1628 | |
| 2 | 01011-81020 | BOLT | 1001- | |
| 3 | 01580-11008 | NUT | 1001- | |
| 4 | 01643-31032 | WASHER | 1629- | |
| 4 | 01643-31032 | WASHER | 1001-1628 | |
| 5 | 56D-54-11483 | BRACKET | 1224- | |
| 5 | 56D-54-11482 | BRACKET | 1001-1223 | |
| 6 | 01010-81635 | BOLT | 1001- | |
| 7 | 01643-31645 | WASHER | 1001- | |
| 8 | 01010-81230 | BOLT | 1001- | |
| 9 | 01643-31232 | WASHER | 1001- | |
| 10 | 56B-54-11491 | BRACKET | 1001- | |
| 11 | 56D-54-11410 | SHIM, 1.2MM | 1001- | |
| 12 | 01435-00820 | BOLT | 1001- |
