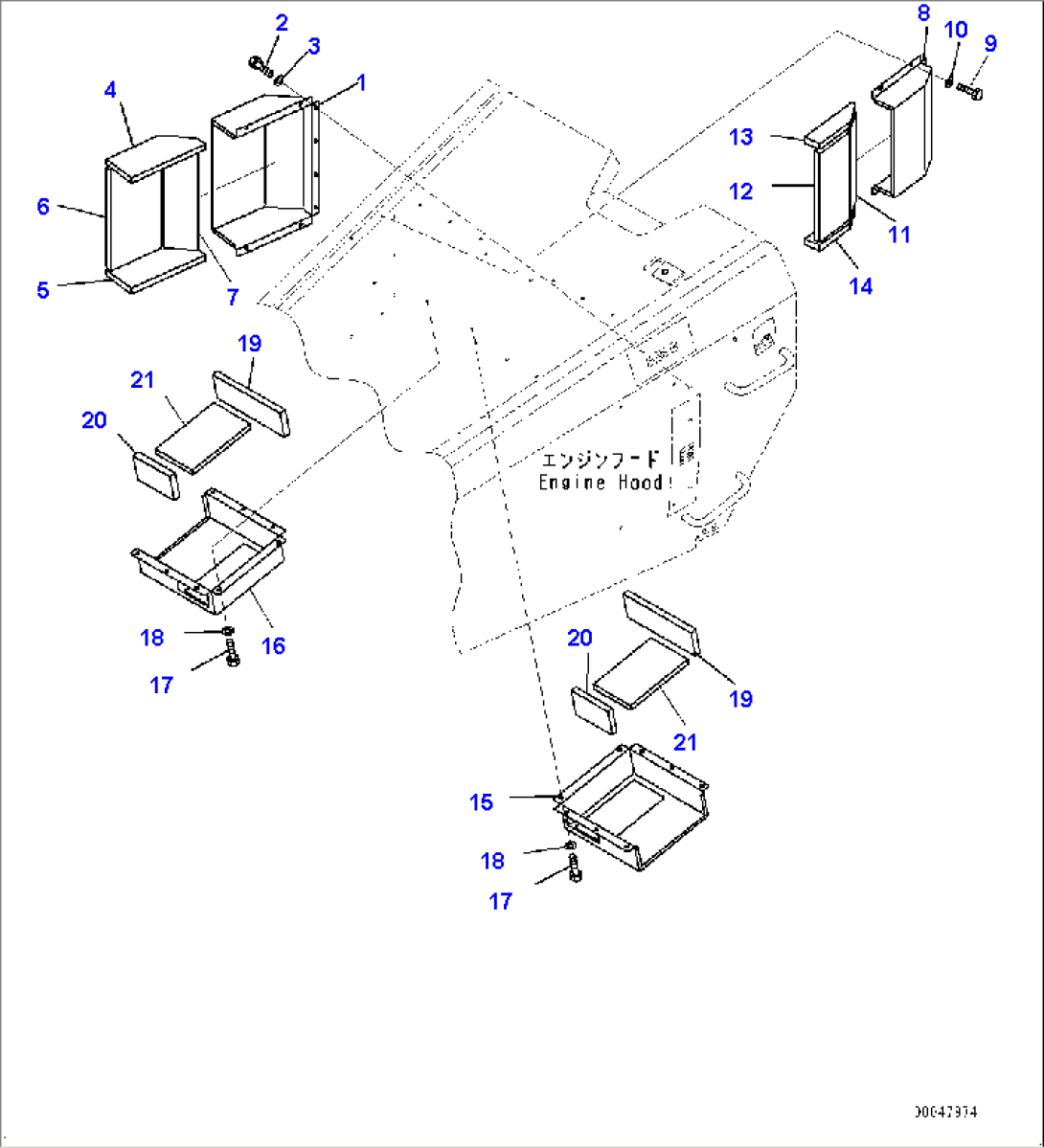

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-54-11521 | Tube | 2930- | |
| 2 | 01011-81020 | Bolt | 2785- | |
| 3 | 01580-11008 | Nut | 2785- | |
| 4 | 01643-31032 | Washer | 2930- | |
| 5 | 56D-54-21481 | Bracket | 2785- | |
| 6 | 01010-81635 | Bolt | 2785- | |
| 7 | 01643-31645 | Washer | 2785- | |
| 8 | 01010-81230 | Bolt | 2785- | |
| 9 | 01643-31232 | Washer | 2785- | |
| 10 | 56E-54-28410 | Bracket | 2785- | |
| 11 | 56B-54-21980 | Striker | 2785- | |
| 12 | 01010-81095 | Bolt | 2785- | |
| 13 | 01643-31032 | Washer | 2785- | |
| 14 | 56B-54-11491 | Bracket | 2785- | |
| 15 | 56D-54-11410 | Shim | 2785- | |
| 16 | 01010-80860 | Bolt | 2785- | |
| 17 | 01643-30823 | Washer | 2785- | |
| 18 | 01010-80825 | Bolt | 2785- | |
| 19 | 01643-30823 | Washer | 2785- | |
| 20 | 01010-80830 | Bolt | 2785- | |
| 21 | 01643-30823 | Washer | 2785- | |
| 22 | 56B-54-21880 | Cover | 2785- | |
| 23 | 01010-81020 | Bolt | 2785- | |
| 24 | 01643-31032 | Washer | 2785- | |
| 24 | 56E-54-28400 | Lock Assembly | 2785- | |
| 25 | 56E-54-28440 | Bracket | 2785- | |
| 26 | 56E-54-28430 | Lever | 2785- | |
| 27 | 56B-54-21930 | Plate | 2785- | |
| 28 | 56B-54-21940 | Holder | 2785- | |
| 29 | 56E-54-28420 | Spring | 2785- | |
| 30 | 01310-20606 | Screw | 2785- | |
| 31 | 04025-00420 | Pin, Spring | 2785- | |
| 32 | 09304-00835 | Knob, Black | 2785- | |
| 33 | 01010-81025 | Bolt | 2785- | |
| 34 | 01643-31032 | Washer | 2785- | |
| 35 | 56B-54-11710 | Stopper | 2906- | |
| 36 | 01010-81230 | Bolt | 2906- | |
| 37 | 01643-31232 | Washer | 2906- | |
| 38 | 56D-54-21510 | Stay, L.H. | 2785- | |
| 39 | 56D-54-21520 | Stay, R.H. | 2785- | |
| 40 | 01010-81230 | Bolt | 2785- | |
| 41 | 01643-31232 | Washer | 2785- | |
| 42 | 23W-P86-2890 | Mirror, Rearview | 2785- | |
| 43 | (56D-54-22522) | Cover | - | |
| (56D-54-22522) | Cover | - |
