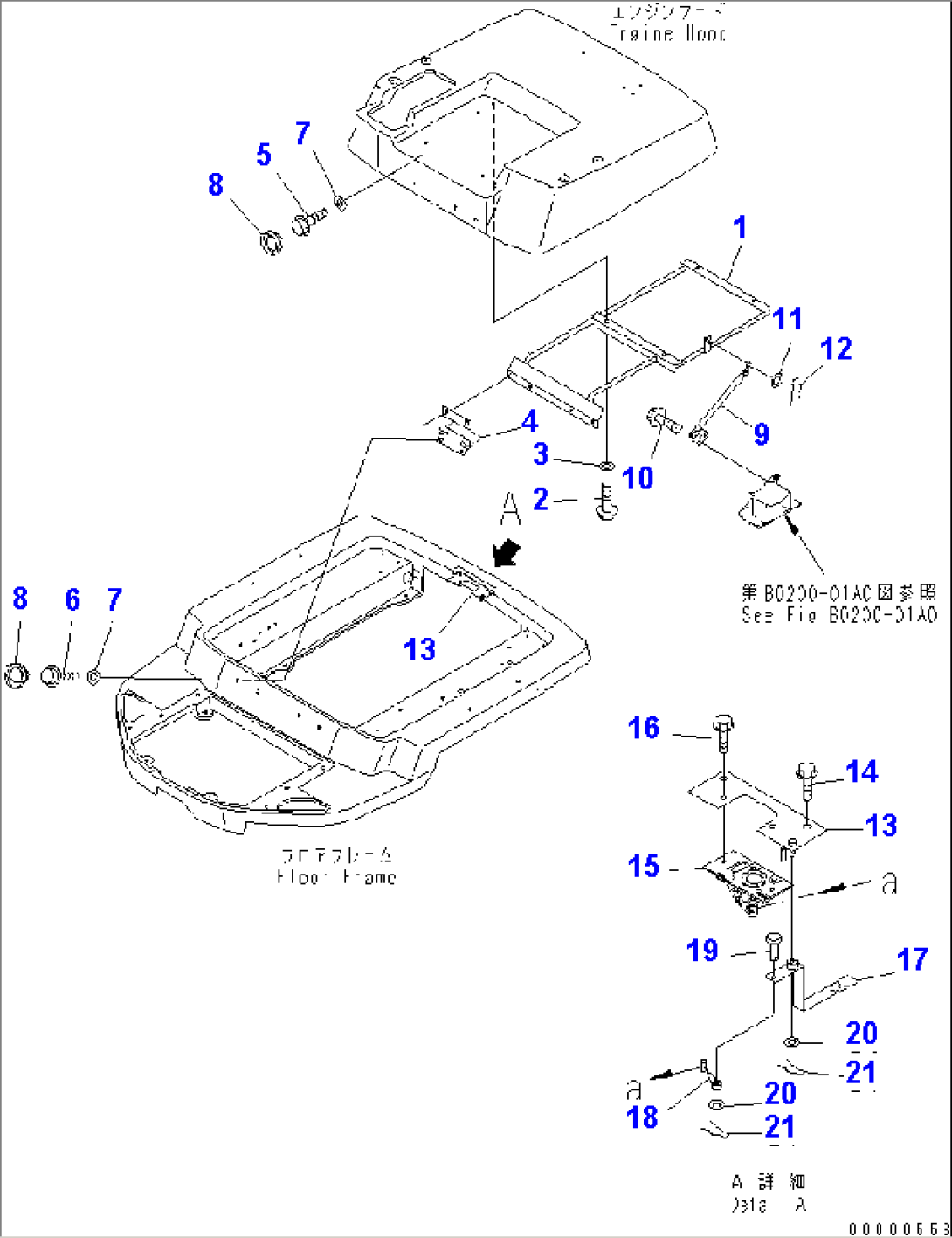

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 363-962-3180 | STAY | 20001-21836 | |
| 2 | 01435-01020 | BOLT | 20001-@ | |
| 3 | 01643-31032 | WASHER | 20001-@ | |
| 4 | 363-54-31390 | HINGE | 20001-21836 | |
| 5 | 01435-01035 | BOLT | 20001-21836 | |
| 6 | 01435-01030 | BOLT | 20001-21836 | |
| 7 | 01643-31232 | WASHER | 20001-@ | |
| 8 | 363-54-31450 | CAP,BOLT | 20001-@ | |
| 9 | 363-54-31211 | SPRING,GAS | 20001-21836 | |
| 10 | 01435-00612 | BOLT | 20001-21836 | |
| 11 | 01643-30823 | WASHER | 20001-@ | |
| 12 | 04052-10833 | PIN,SNAP | 20001-@ | |
| 13 | 363-54-31270 | BRACKET | 20001-21836 | |
| 14 | 01435-00816 | BOLT | 20001-@ | |
| 15 | 363-54-31260 | LOCK | 20001-@ | |
| 16 | 01435-00612 | BOLT | 20001-@ | |
| 17 | 363-54-31291 | PLATE | 20001-@ | |
| 18 | 363-54-31280 | CABLE | 20001-@ | |
| 19 | 04205-10618 | PIN | 20001-@ | |
| 20 | 01641-20608 | WASHER | 20001-@ | |
| 21 | 04052-10633 | PIN,SNAP | 20001-@ |
