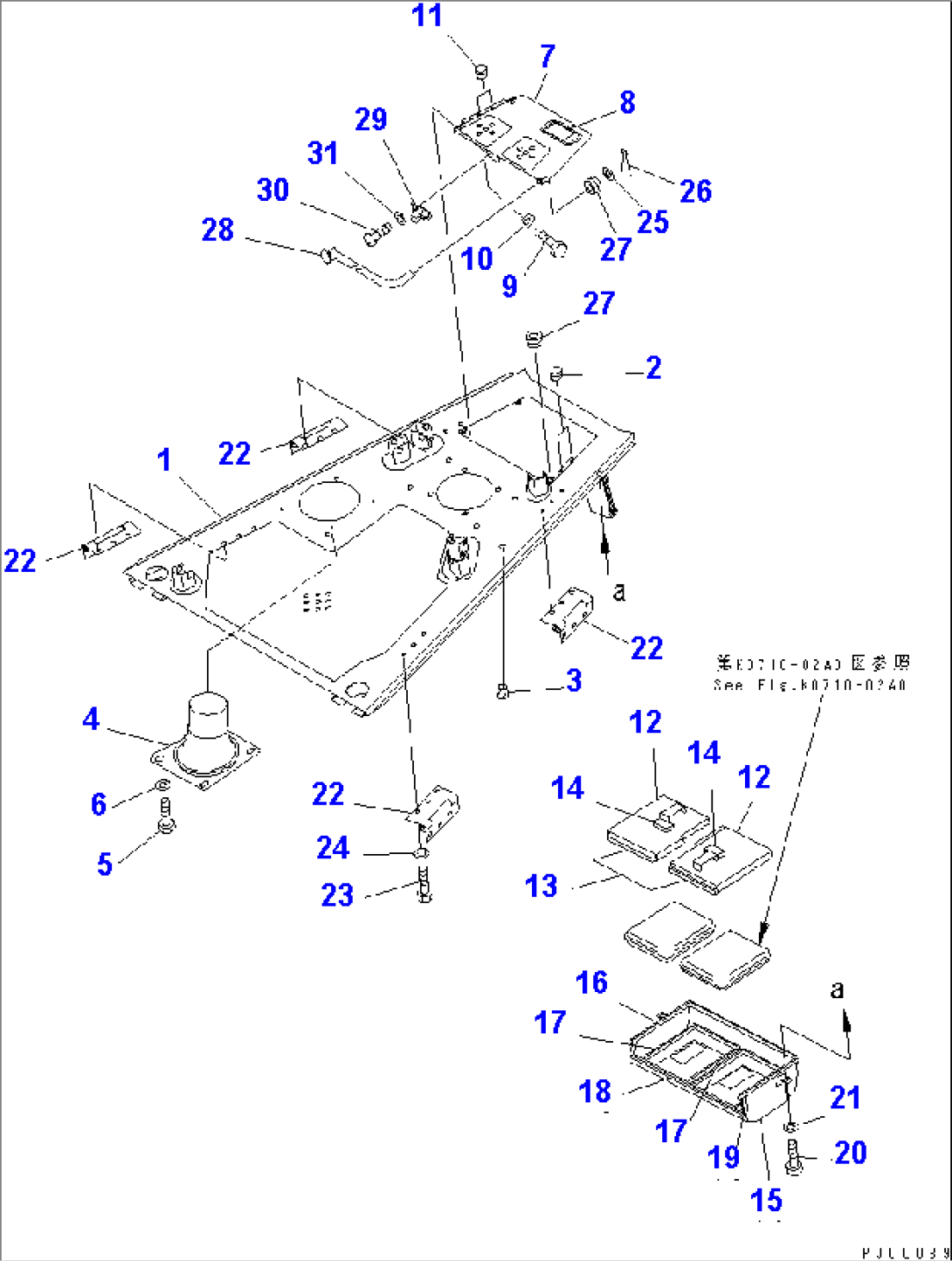

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-54-12491 | HOOD | 3034-4000 | |
| 2 | 09415-00506 | CAP | 3034-4000 | |
| 3 | 07049-01215 | PLUG | 3034-@ | |
| 4 | 14X-54-12810 | PIPE | 3034-@ | |
| 5 | 01010-81220 | BOLT | 3034-@ | |
| 6 | 130-43-64260 | COLLAR | 3034-@ | |
| 7 | 14X-911-8413 | COVER | 3034-4000 | |
| 8 | 14X-911-8421 | LOCK (WELDED) | 3034-4000 | |
| 9 | 01010-80820 | BOLT | 3034-4000 | |
| 10 | 01643-30823 | WASHER | 3034-4000 | |
| 11 | 09415-00506 | CAP | 3034-4000 | |
| 12 | 14X-911-8431 | COVER ASS'Y | 3034-4000 | |
| 13 | 14X-911-8510 | SEAL | 3034-4000 | |
| 14 | 14X-911-8520 | SEAL | 3034-@ | |
| 15 | 14X-911-8451 | DUCT ASS'Y | 3034-4000 | |
| 16 | 14X-911-8470 | SEAL | 3034-4000 | |
| 17 | 14X-911-8480 | SEAL | 3034-@ | |
| 18 | 14X-911-8490 | SEAL | 3034-@ | |
| 19 | 14X-911-8550 | SEAL | 3034-@ | |
| 20 | 01010-81220 | BOLT | 3034-@ | |
| 21 | 01643-31232 | WASHER | 3034-@ | |
| 22 | 14X-911-1330 | HINGE | 3034-@ | |
| 23 | 01010-81025 | BOLT | 3034-@ | |
| 24 | 01643-31032 | WASHER | 3034-@ | |
| 25 | 01643-30823 | WASHER | 3034-4000 | |
| 26 | 04050-12015 | PIN | 3034-4000 | |
| 27 | 08037-01008 | GROMMET | 3034-4000 | |
| 28 | 14X-911-8570 | ROD | 3034-4000 | |
| 29 | 20B-54-12210 | SPRING | 3034-4000 | |
| 30 | 01220-40406 | SCREW | 3034-4000 | |
| 31 | 01641-20405 | WASHER | 3034-4000 |
