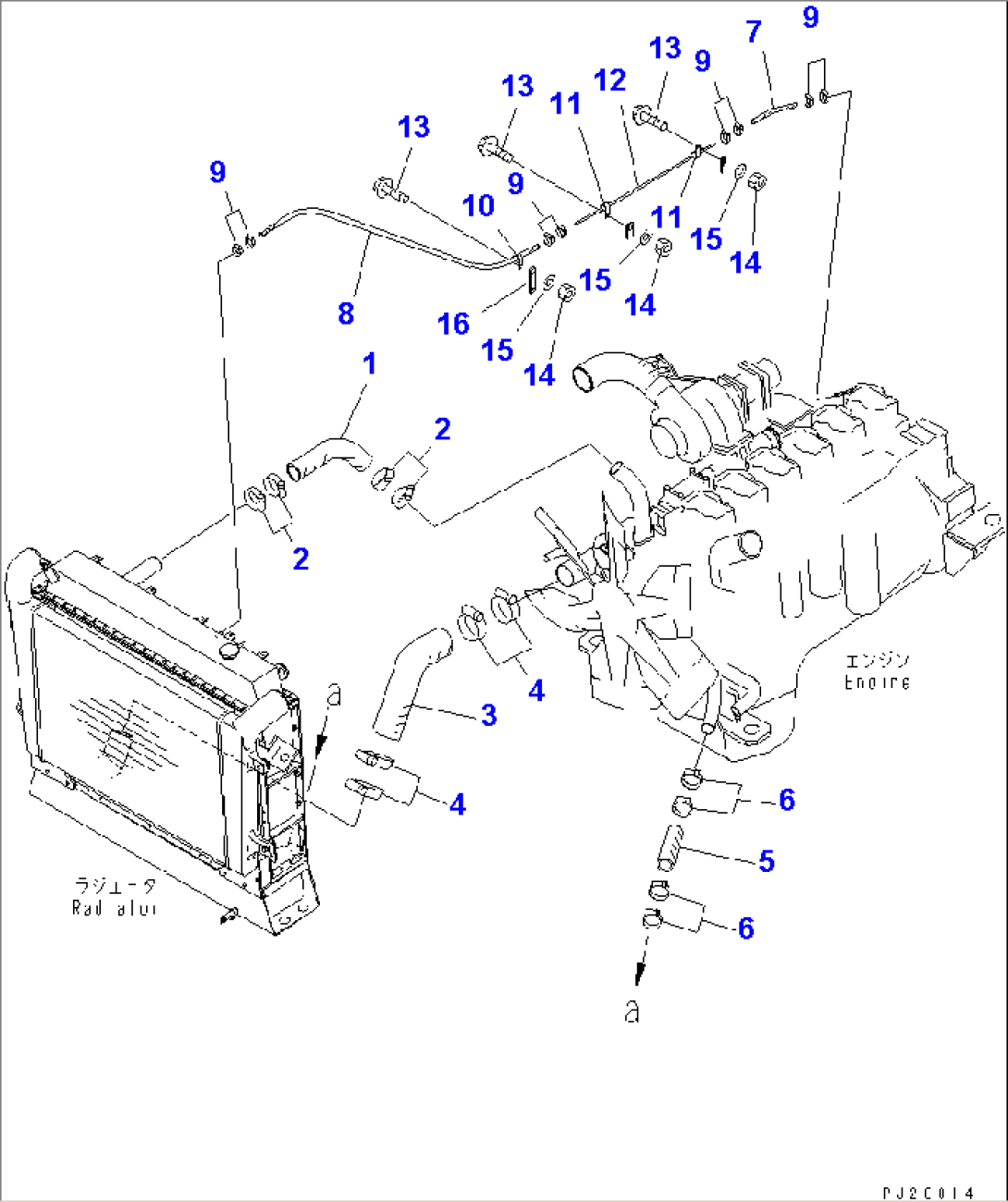

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-03-11612 | HOSE | A10001- | |
| 2 | 07299-00070 | CLAMP | A10001- | |
| 3 | 56B-03-11621 | HOSE | A10001- | |
| 4 | 07299-00105 | CLAMP | A10001- | |
| 5 | 07260-24722 | HOSE | A10001- | |
| 6 | 07299-00055 | CLAMP | A10001- | |
| 7 | 09483-40302 | HOSE | A10001- | |
| 8 | 09483-40312 | HOSE | A10001- | |
| 9 | 07281-10197 | CLAMP | A10001- | |
| 10 | 04434-51710 | CLIP | A10001- | |
| 11 | 04434-51010 | CLIP | A10001- | |
| 12 | 56B-03-11750 | TUBE | A10001- | |
| 13 | 01435-01020 | BOLT | A10001- | |
| 14 | 01580-01008 | NUT | A10001- | |
| 15 | 01643-31032 | WASHER | A10001- | |
| 16 | 56B-03-11920 | PLATE | A10001- |
