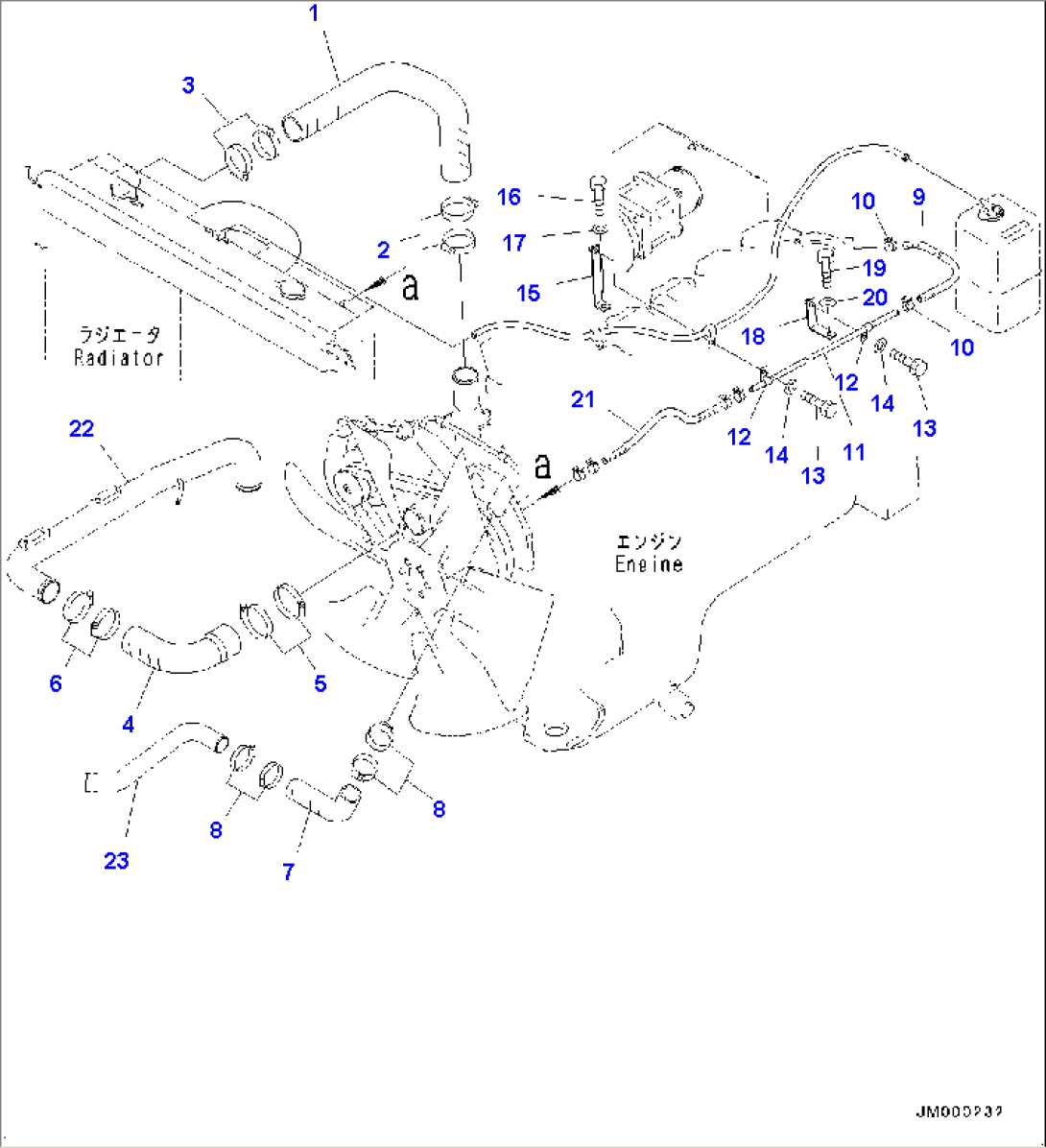

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-03-21610 | Hose | 2785- | |
| 2 | 07299-00070 | Clamp | 2785- | |
| 3 | 07299-00070 | Clamp | 2785- | |
| 4 | 56D-03-11621 | Hose | 2785- | |
| 5 | 07299-00080 | Clamp, Hose | 2785- | |
| 6 | 07299-00070 | Clamp | 2785- | |
| 7 | 56D-03-11632 | Hose | 2785- | |
| 8 | 07299-00055 | Clamp | 2785- | |
| 9 | 09483-40304 | Hose | 2785- | |
| 10 | 11Y-09-11140 | Clip | 2785- | |
| 11 | 56D-03-11920 | Tube | 2785- | |
| 12 | 04434-51010 | Clip | 2785- | |
| 13 | 01010-81020 | Bolt | 2785- | |
| 14 | 01643-31032 | Washer | 2785- | |
| 15 | 56D-03-11941 | Bracket | 2785- | |
| 16 | 01011-81065 | Bolt | 2785- | |
| 17 | 01643-31032 | Washer | 2785- | |
| 18 | 56D-03-11951 | Bracket | 2785- | |
| 19 | 01010-81025 | Bolt | 2785- | |
| 20 | 01643-31032 | Washer | 2785- | |
| 21 | (09483-10305) | Hose | - | |
| (09483-10305) | Hose | - | ||
| (09483-10305) | Hose | - | ||
| (09483-10305) | Hose | - | ||
| 22 | (56D-03-21680) | Tube | - | |
| 23 | (56D-03-11890) | Tube | - |
