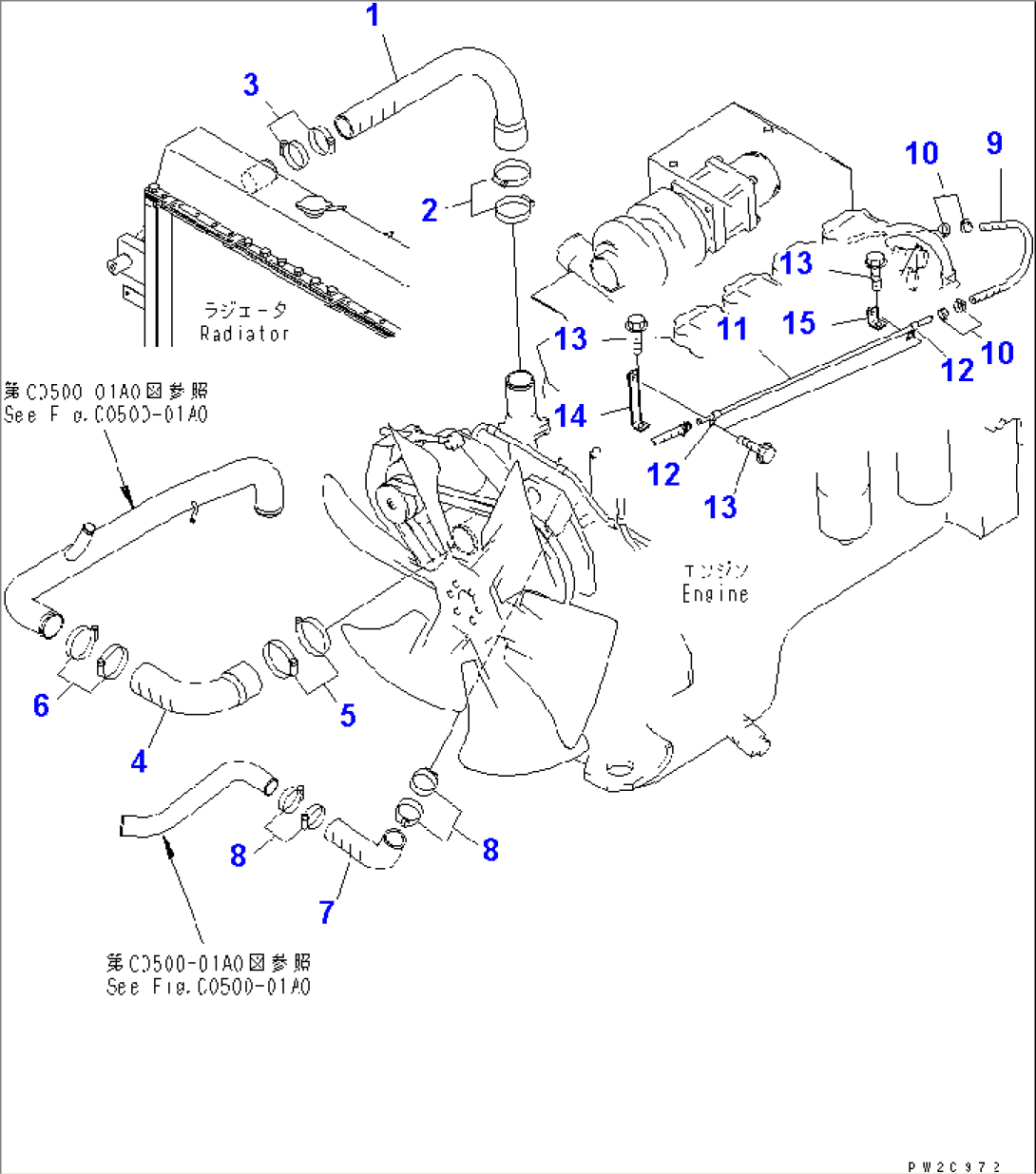

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-03-11611 | HOSE | 1001- | |
| 2 | 07289-00080 | CLAMP | 1001- | |
| 3 | 07289-00070 | CLAMP | 1001- | |
| 4 | 56D-03-11621 | HOSE | 1001- | |
| 5 | 07289-00080 | CLAMP | 1001- | |
| 6 | 07289-00070 | CLAMP | 1001- | |
| 7 | 56D-03-11632 | HOSE | 1001- | |
| 8 | 07289-00055 | CLAMP | 1001- | |
| 9 | 09483-40304 | HOSE | 1001- | |
| 10 | 07281-10197 | CLAMP | 1001- | |
| 11 | 56D-03-11920 | TUBE | 1001- | |
| 12 | 04434-51010 | CLIP | 1001- | |
| 13 | 01435-01016 | BOLT | 1001- | |
| 14 | 56D-03-11940 | BRACKET | 1001- | |
| 15 | 56D-03-11950 | BRACKET | 1001- |
