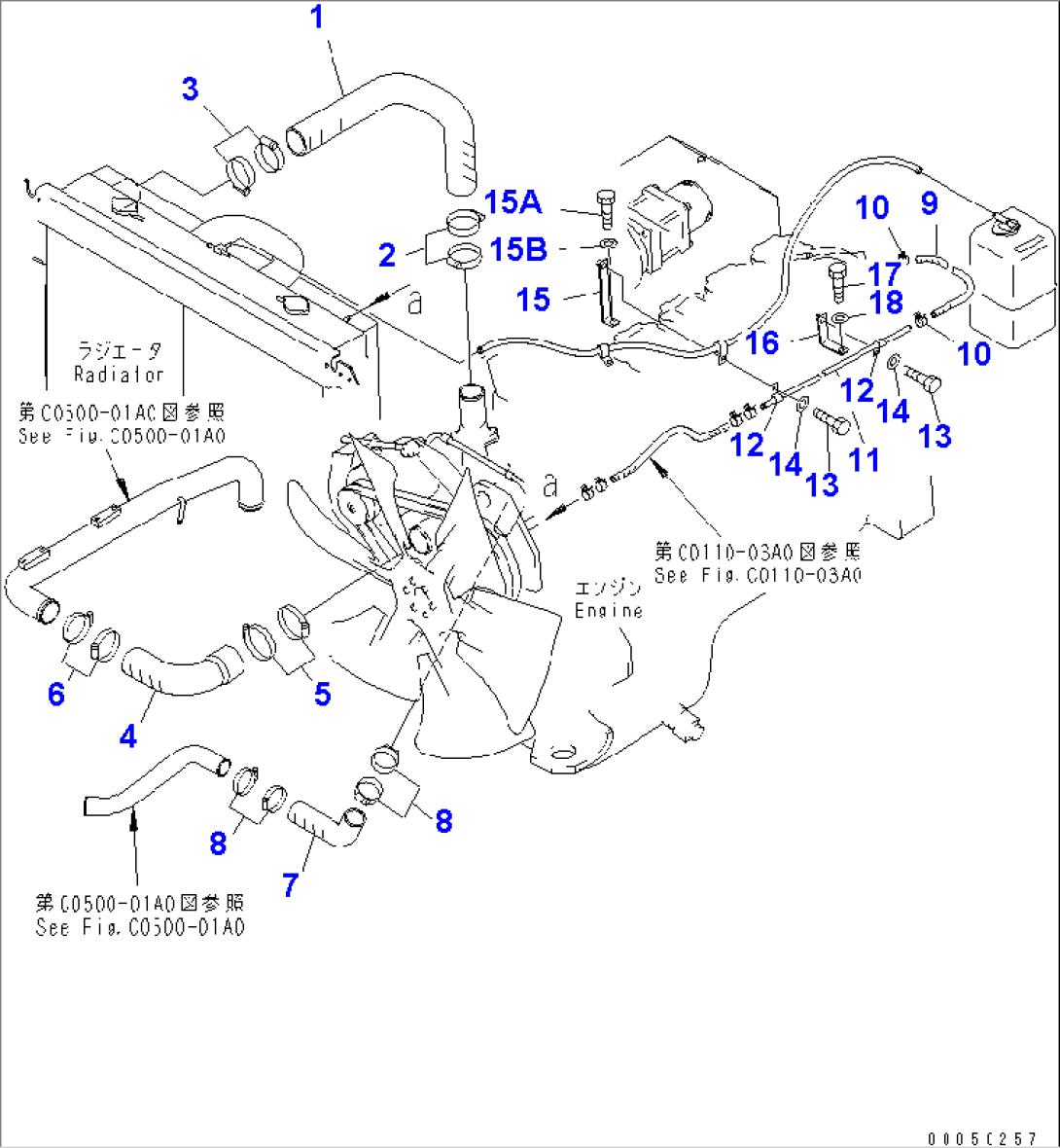

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-03-21610 | HOSE | 2001- | |
| 2 | 07299-00070 | CLAMP | 2001- | |
| 3 | 07299-00070 | CLAMP | 2001- | |
| 4 | 56D-03-11621 | HOSE | 2001- | |
| 5 | 07299-00080 | CLAMP | 2001- | |
| 6 | 07299-00070 | CLAMP | 2001- | |
| 7 | 56D-03-11632 | HOSE | 2001- | |
| 8 | 07299-00055 | CLAMP | 2001- | |
| 9 | 09483-40304 | HOSE | 2001- | |
| 10 | 11Y-09-11140 | CLIP | 2001- | |
| 11 | 56D-03-11920 | TUBE | 2001- | |
| 12 | 04434-51010 | CLIP | 2001- | |
| 13 | 01010-81020 | BOLT | 2001- | |
| 14 | 01643-31032 | WASHER | 2001- | |
| 15 | 56D-03-11941 | BRACKET | 2001- | |
| 15A | 01011-81065 | BOLT | 2001- | |
| 15B | 01643-31032 | WASHER | 2001- | |
| 16 | 56D-03-11951 | BRACKET | 2001- | |
| 17 | 01010-81025 | BOLT | 2001- | |
| 18 | 01643-31032 | WASHER | 2001- |
