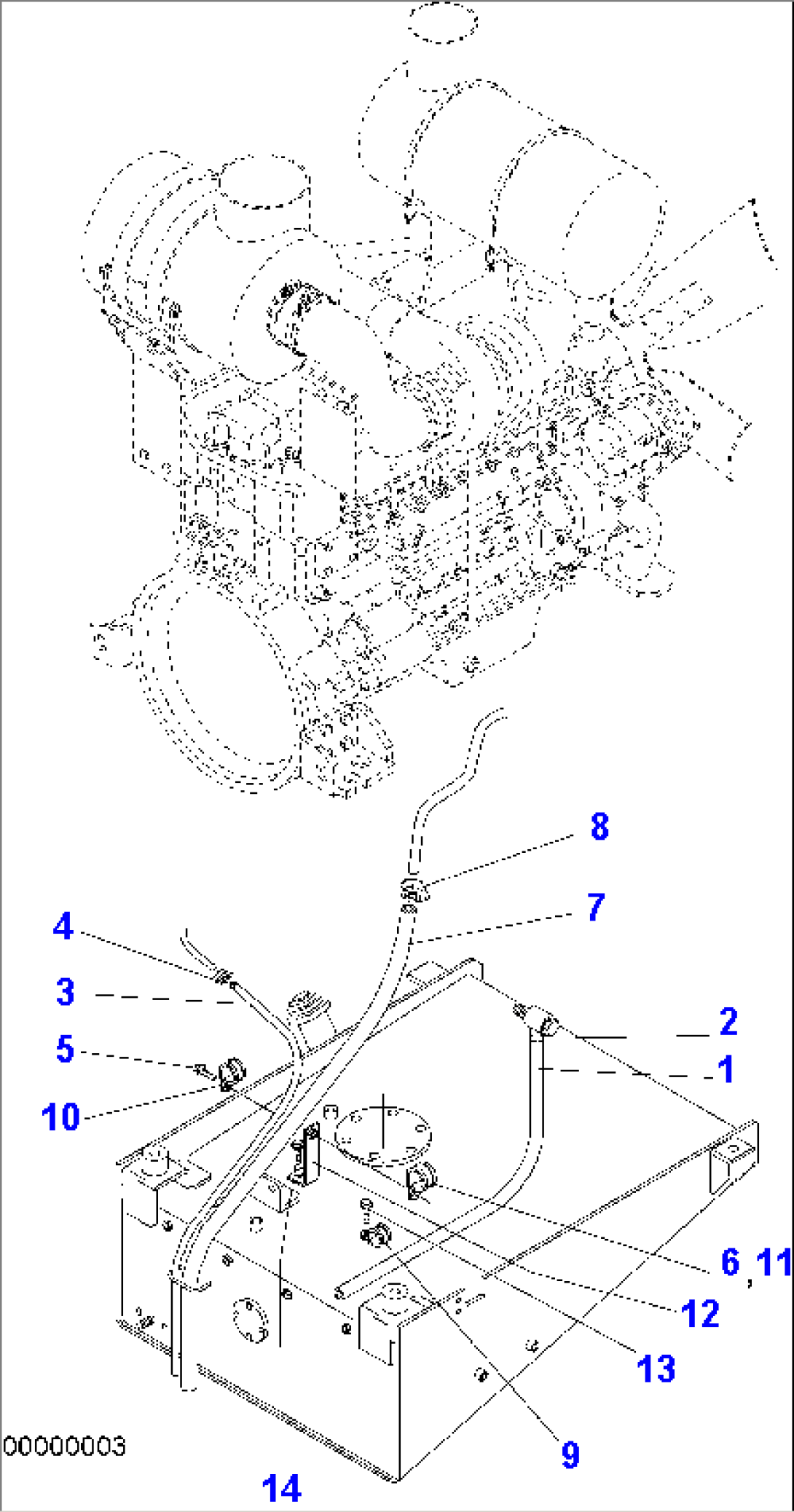

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07260-21490 | HOSE | 110001- | |
| 2 | 07281-00259 | CLAMP | 110001- | |
| 3 | 07270-01090 | TUBE | 110001- | |
| 4 | 07281-00167 | CLAMP | 110001- | |
| 5 | 01435-01020 | BOLT | 110001- | |
| 6 | 01435-01025 | BOLT | 110001- | |
| 7 | 07261-22012 | HOSE | 110001- | |
| 8 | 07281-00359 | CLAMP | 110001- | |
| 9 | 04434-52511 | CLIP | 110001- | |
| 10 | 04434-51310 | CLIP | 110001- | |
| 11 | 04434-53211 | CLIP | 110001- | |
| 12 | 363-43-37350 | BRACKET | 110001- | |
| 13 | 01435-01020 | BOLT | 110001- | |
| 14 | 01435-01016 | BOLT | 110001- |
