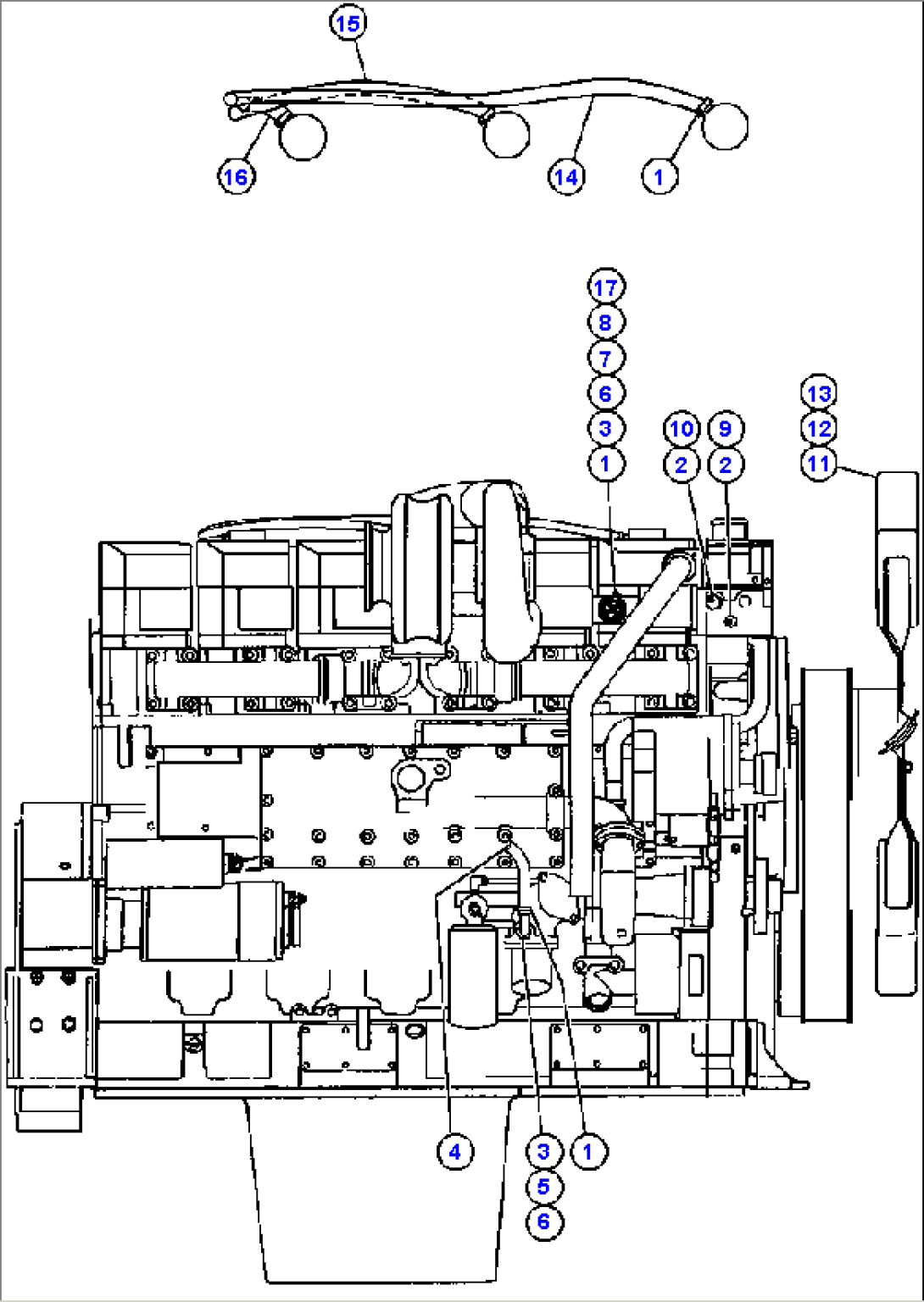

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HC0908 | CLAMP, HOSE | ||
| 2 | PB9579 | CONNECTOR | ||
| 3 | PB9578 | CONNECTOR | ||
| 4 | EB3014 | HOSE, HEATER | ||
| 5 | TV2642 | ELBOW | ||
| 6 | H3018 | BUSHING, PIPE | ||
| 7 | TR5989 | HOSE, HEATER | ||
| 8 | TC3706 | COCK, SHUT OFF | ||
| 9 | TD7507 | SWITCH, TEMPERATURE INDICATOR | ||
| 10 | PB6417 | SENDER | ||
| 11 | C1540 | LOCKWASHER - 1/2" | ||
| 12 | VL1222 | CAPSCREW - 3/4" - 10NC X 5 | ||
| 13 | PB7061 | FAN | ||
| 14 | VM6394 | HOSE | ||
| 15 | TL2184 | HOSE | ||
| 16 | VN5707 | HOSE | ||
| 17 | R5016 | ELBOW | ||
| NS|18 | NOTE: NS = NOT SHOWN | |||
| NS|19 | VZ4843 | STRAP, TIE | ||
| NS|20 | TF6924 | CLAMP, VINYL | ||
| NS|21 | TG9225 | LOCKNUT - 3/8" - 16UNC |
