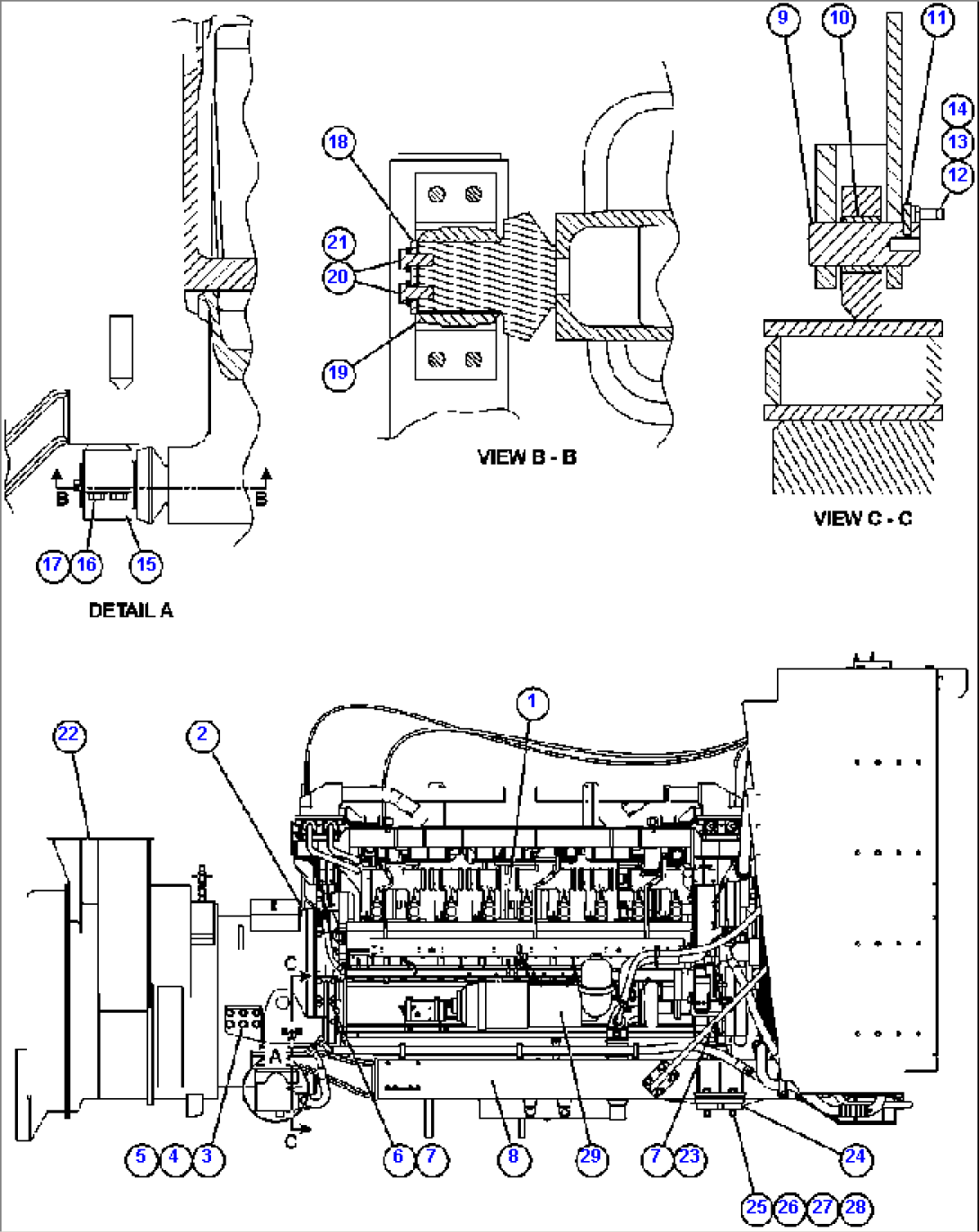

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PC2118 | ENGINE (ORDER FROM FACTORY) | ||
| 2 | EJ1033 | ADAPTER ASSEMBLY | ||
| 2 | EJ1055 | SHIM | ||
| 2 | EJ1056 | SHIM | ||
| 2 | EL3331 | SHIM | ||
| 2 | EL3332 | SHIM | ||
| 2 | MM0053 | CAPSCREW - M12 X 1.75 X 45 | ||
| 2 | MM0705 | FLAT WASHER - M12 (HARDENED) | ||
| 2 | VN9169 | CAPSCREW - 5/8" - 11NC X 5 1/2" | ||
| 2 | WA0361 | FLAT WASHER - 5/8" (HARDENED) | ||
| 3 | VN9079 | CAPSCREW - 1" - 8NC X 2 1/4" | ||
| 4 | C1544 | LOCKWASHER - 1" | ||
| 5 | EH7714 | CRADLE - R.H. | ||
| 5 | EH7713 | CRADLE - L.H. | ||
| 6 | MM0075 | CAPSCREW - M20 X 2.50 X 60 | ||
| 7 | MM0475 | LOCKWASHER - M20 | ||
| 8 | EM6787 | SUB-FRAME | ||
| 9 | TN1019 | PIN | ||
| 10 | PB4177 | RACE, INNER | ||
| 11 | TN1018 | PLATE | ||
| 12 | PC0936 | SET SCREW - 3/4" - 10NC X 2" | ||
| 13 | C1542 | LOCKWASHER - 3/4" | ||
| 14 | E5222 | JAM NUT - 3/4" - 10NC | ||
| 15 | EM5499 | MACHINED CAP | ||
| 16 | MM0055 | CAPSCREW - M20 X 2.50 X 50 | ||
| 17 | MM0707 | FLAT WASHER - M20 (HARDENED) | ||
| 18 | EM5444 | PLATE | ||
| 19 | VM3891 | BUSHING, RUBBER | ||
| 20 | MM0038 | CAPSCREW - M16 X 2.00 X 35 | ||
| 21 | MM0706 | FLAT WASHER - M16 (HARDENED) | ||
| 22 | PC2610 | ALTERNATOR/BLOWER ASSEMBLY (SEE FIG 64237) | ||
| 23 | WB1193 | CAPSCREW - M20 X 2.50 X 90 (12 PT) | ||
| 24 | PC1393 | MOUNT, RUBBER (TWO-PIECE) | ||
| 25 | VN9202 | CAPSCREW - 1" - 8NC X 7" | ||
| 26 | WA4732 | FLAT WASHER - 1" (HARDENED) | ||
| 27 | VC7828 | LOCKWASHER - 1" | ||
| 28 | VX1156 | NUT - 1" - 8NC | ||
| 29 | XA2215 | ELIMINATOR FILTER ASSEMBLY | ||
| 29 | XA2216 | FILTER / HOUSING KIT | ||
| 29 | XA2217 | CENTRIFUGE SERVICE KIT | ||
| NS|41 | NOTE: NS = NOT SHOWN | |||
| NS|42 | XA3847 | ELEMENT, FUEL FILTER/WATER SEPARATOR | ||
| NS|43 | XA2134 | ELEMENT, WATER CORROSION RESISTOR | ||
| NS|44 | EL1529 | PLATE, BENT (UNDER FAN GUARD) |
