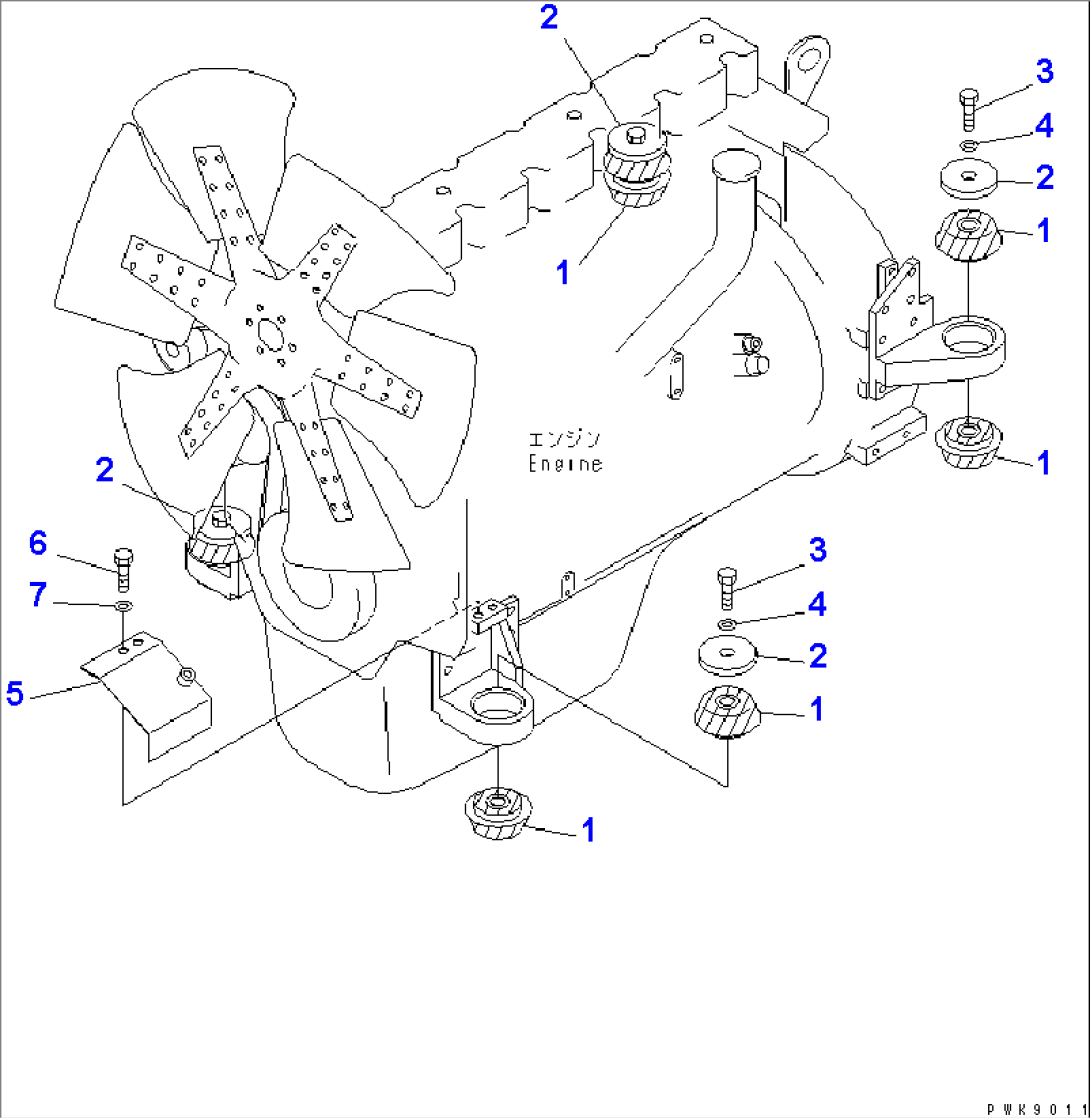

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-01-61452 | CUSHION | 1170- | |
| 1 | 134-01-61451 | CUSHION | 1001-1169 | |
| 2 | 134-01-61461 | WASHER | 1001- | |
| 3 | 01011-82035 | BOLT | 1163- | |
| 3 | 01011-82030 | BOLT | 1001-1163 | |
| 4 | 01643-32060 | WASHER | 1001- | |
| 5 | 134-01-61820 | COVER | 1001- | |
| 6 | 01010-81220 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- |
