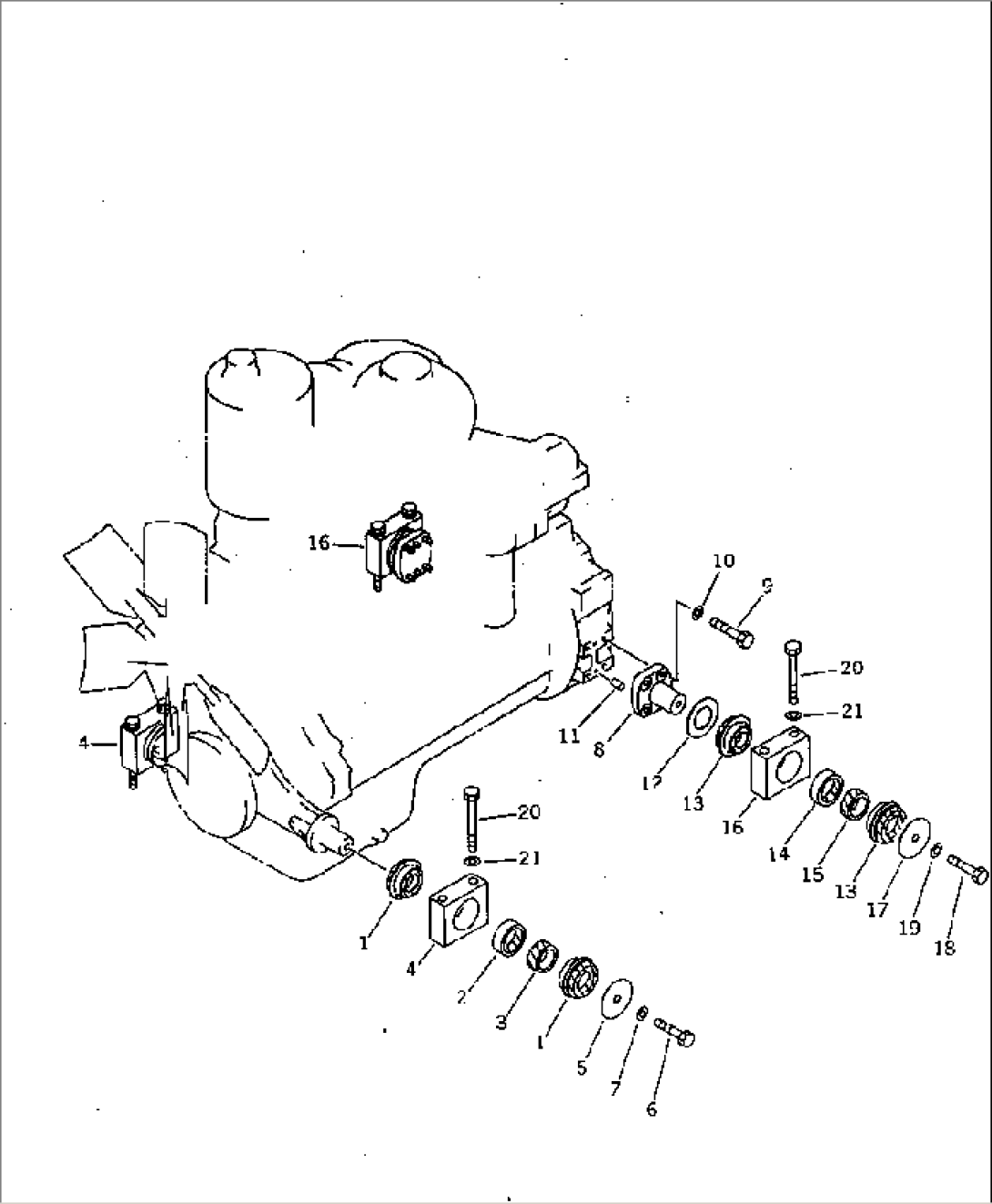

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-01-11180 | CUSHION | 3034- | |
| 2 | 154-01-21320 | CUSHION | 3034- | |
| 3 | 154-01-21330 | CUSHION | 3034- | |
| 4 | 14X-01-11130 | CAP | 3034- | |
| 5 | 14X-01-11150 | PLATE | 3034- | |
| 6 | 01010-81645 | BOLT | 3034- | |
| 7 | 01643-31645 | WASHER | 3034- | |
| 8 | 14X-01-11122 | PIN | 3034- | |
| 9 | 01010-81645 | BOLT | 3034- | |
| 10 | 01643-31645 | WASHER | 3034- | |
| 11 | 04020-01228 | PIN | 3034- | |
| 12 | 14X-01-11140 | SPACER | 3034- | |
| 13 | 14X-01-11180 | CUSHION | 3034- | |
| 14 | 154-01-21320 | CUSHION | 3034- | |
| 15 | 154-01-21330 | CUSHION | 3034- | |
| 16 | 14X-01-11130 | CAP | 3034- | |
| 17 | 14X-01-11150 | PLATE | 3034- | |
| 18 | 01010-81635 | BOLT | 3034- | |
| 19 | 01643-31645 | WASHER | 3034- | |
| 20 | 01011-82080 | BOLT | 3034- | |
| 21 | 01643-32060 | WASHER | 3034- |
