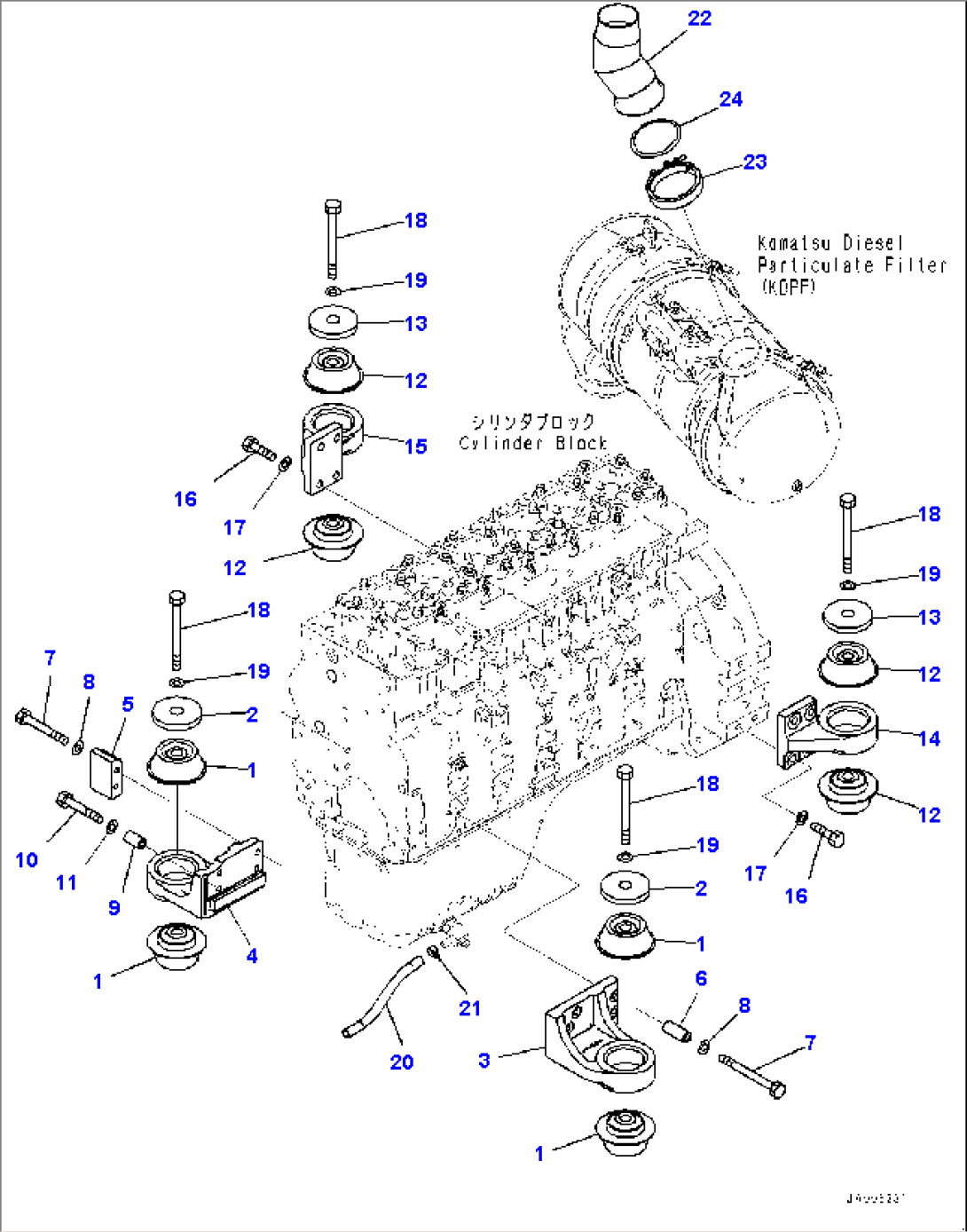

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-01-35140 | Cushion | 1001- | |
| 2 | 14X-01-65150 | Washer | 1001- | |
| 3 | 14X-01-61111 | Bracket, L.H. | 1001- | |
| 4 | 14X-01-61121 | Bracket, R.H. | 1001- | |
| 5 | 14X-01-65171 | Spacer | 1001- | |
| 6 | 14X-01-35180 | Spacer | 1001- | |
| 7 | 14X-01-51150 | Bolt | 1001- | |
| 8 | 01643-31232 | Washer | 1001- | |
| 9 | 205-03-71331 | Collar | 1001- | |
| 10 | 14X-01-61150 | Bolt | 1001- | |
| 11 | 01643-31232 | Washer | 1001- | |
| 12 | 207-01-35140 | Cushion | 1001- | |
| 13 | 14X-01-65150 | Washer | 1001- | |
| 14 | 14X-01-51131 | Bracket | 1001- | |
| 15 | 14X-01-51141 | Bracket | 1001- | |
| 16 | 01010-81650 | Bolt | 1001- | |
| 17 | 01643-31645 | Washer | 1001- | |
| 18 | 01011-82480 | Bolt | 1001- | |
| 19 | 01643-32460 | Washer | 1001- | |
| 20 | 07270-21530 | Tube | 1001- | |
| 21 | 07285-00180 | Clip | 1001- | |
| 22 | 14X-01-61311 | Pipe | 1001- | |
| 23 | 6520-91-1020 | Clamp | 1001- | |
| 24 | 6520-91-1030 | Gasket | 1001- |
