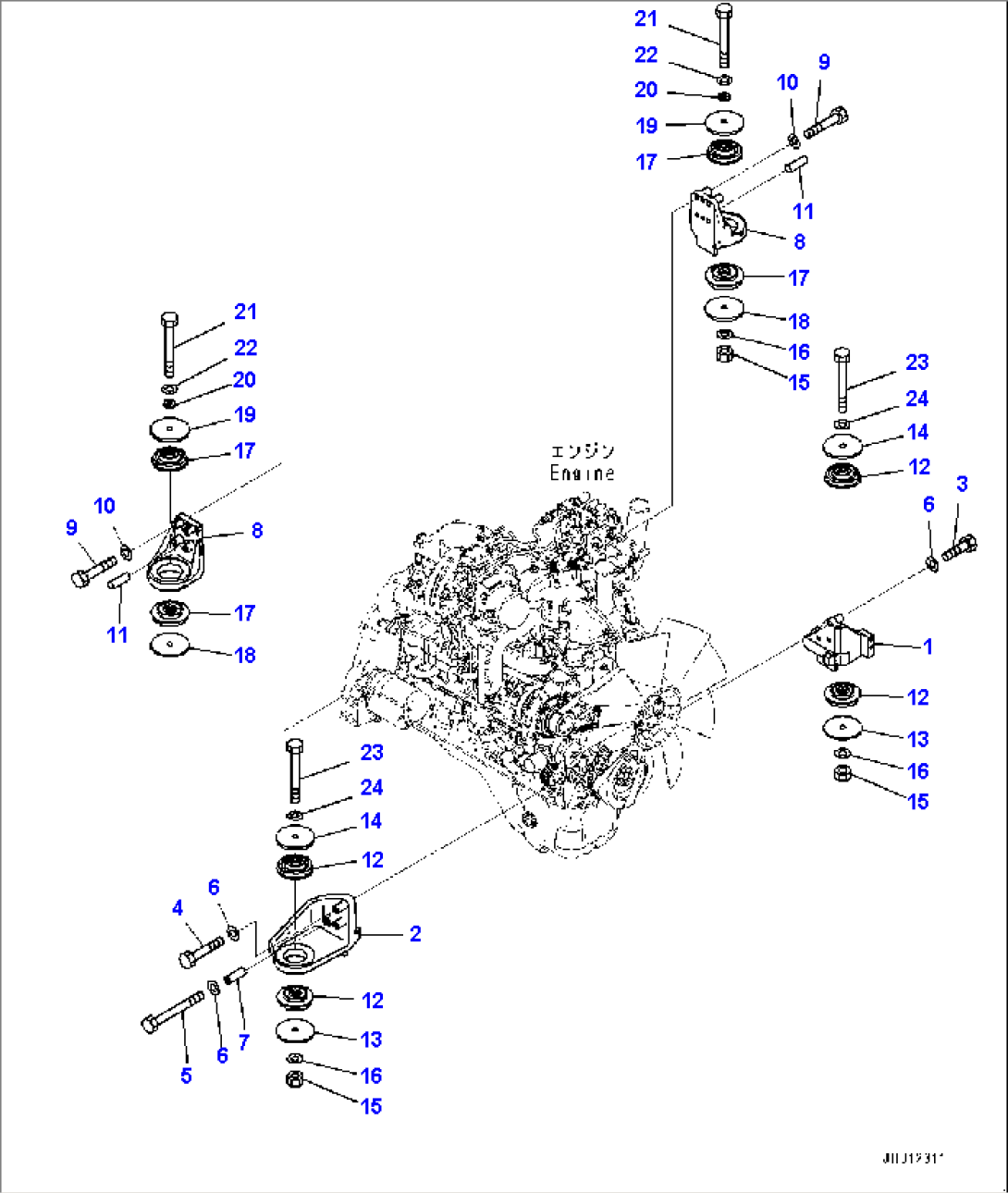

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 2A5-01-11880 | Bracket | 500470- | |
| 2 | 2A6-01-11121 | Bracket | 500470- | |
| 3 | 2A5-01-11230 | Bolt | 500470- | |
| 4 | 2A6-01-11130 | Bolt | 500470- | |
| 5 | 2A6-01-11650 | Bolt | 500470- | |
| 6 | 01643-31232 | Washer | 500470- | |
| 7 | 2A6-01-11680 | Spacer | 500470- | |
| 8 | 2A5-01-11910 | Bracket | 500470- | |
| 9 | 2A5-01-11230 | Bolt | 500470- | |
| 10 | 01643-31232 | Washer | 500470- | |
| 11 | 04020-01228 | Pin, Dowel | 500470- | |
| 12 | 2A5-01-11320 | Cushion | 500470- | |
| 13 | 2A5-01-11261 | Plate | 500470- | |
| 14 | 2A5-01-11271 | Plate | 500470- | |
| 15 | 01580-11613 | Nut | 500470- | |
| 16 | 01643-31645 | Washer | 500470- | |
| 17 | 2A6-01-11710 | Cushion | 500470- | |
| 18 | 2A5-01-11261 | Plate | 500470- | |
| 19 | 2A5-01-11271 | Plate | 500470- | |
| 20 | 2A5-01-11590 | Plate | 500470- | |
| 21 | 01011-81655 | Bolt | 500470- | |
| 22 | 01643-31645 | Washer | 500470- | |
| 23 | 20Y-01-12270 | Bolt | 500470- | |
| 24 | 01643-31645 | Washer | 500470- |
