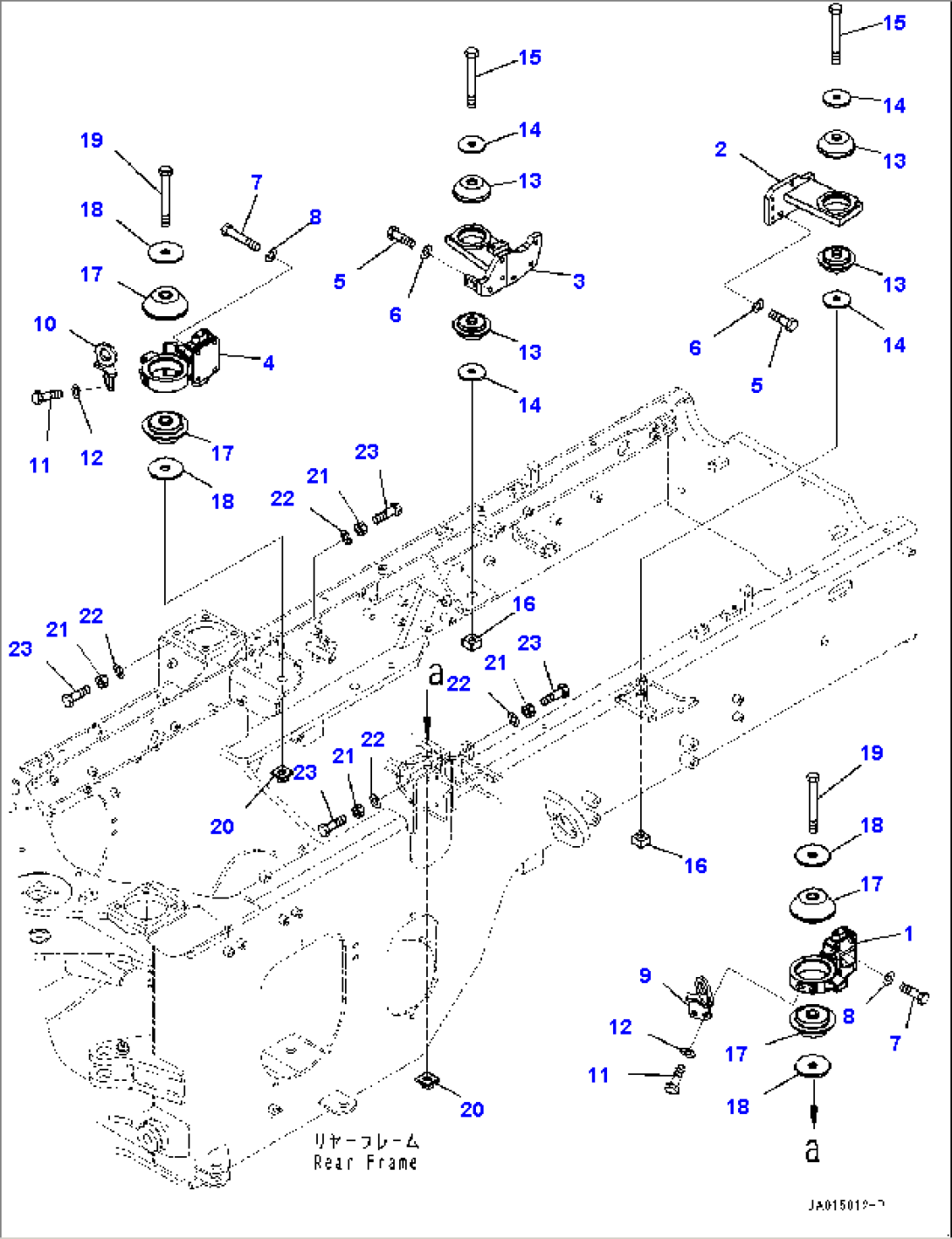

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-01-51140 | Bracket | 80001- | |
| 2 | 417-01-51150 | Bracket | 80001- | |
| 3 | 417-01-51160 | Bracket | 80001- | |
| 4 | 417-01-51140 | Bracket | 80001- | |
| 5 | 01010-81245 | Bolt | 80001- | |
| 6 | 01643-31232 | Washer | 80001- | |
| 7 | 01010-81265 | Bolt | 80001- | |
| 8 | 01643-31232 | Washer | 80001- | |
| 9 | 417-01-51711 | Bracket | 80001- | |
| 10 | 417-01-51721 | Bracket | 80001- | |
| 11 | 01010-81230 | Bolt | 80001- | |
| 12 | 01643-31232 | Washer | 80001- | |
| 13 | 21K-01-41711 | Cushion | 80001- | |
| 14 | 418-01-41180 | Plate | 80001- | |
| 15 | 01011-61645 | Bolt | 80001- | |
| 16 | 416-01-51250 | Seat | 80001- | |
| 17 | 417-01-51270 | Cushion | 80001- | |
| 18 | 419-01-11162 | Washer | 80001- | |
| 19 | 01011-62070 | Bolt | 80001- | |
| 20 | 419-01-51160 | Plate | 80001- | |
| 21 | 01580-11411 | Nut | 80001- | |
| 22 | 01643-31445 | Washer, Flat | 80001- | |
| 23 | 01016-51455 | Bolt | 80001- |
