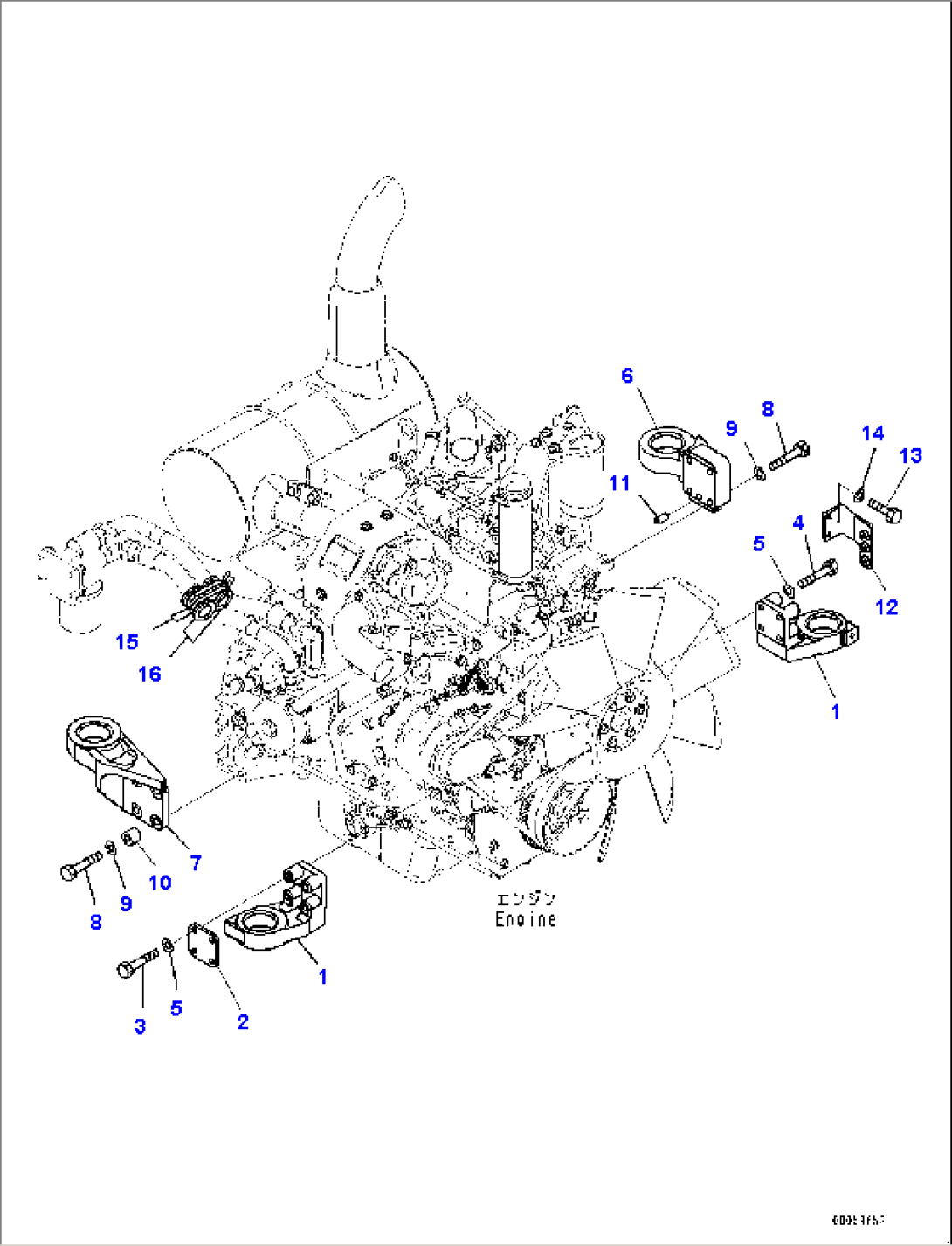

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22B-01-21510 | Bracket | 24510- | |
| 2 | 22B-01-21520 | Plate | 24510- | |
| 3 | 22B-01-21380 | Bolt | 24510- | |
| 4 | 22B-01-21190 | Bolt | 24510- | |
| 5 | 01643-31032 | Washer | 24510- | |
| 6 | 203-01-61110 | Bracket | 24510- | |
| 7 | 203-01-61120 | Bracket | 24510- | |
| 8 | 22B-01-11190 | Bolt | 24510- | |
| 9 | 01643-31232 | Washer | 24510- | |
| 10 | 6131-22-3750 | Boss | 24510- | |
| 11 | 04020-01228 | Pin, Dowel | 24510- | |
| 12 | 22B-01-21211 | Bracket | 24510- | |
| 13 | 01010-80820 | Bolt | 24510- | |
| 14 | 01643-30823 | Washer | 24510- | |
| 15 | 08034-20519 | Band | 24510- | |
| 16 | 07095-00526 | Cushion | 24510- |
