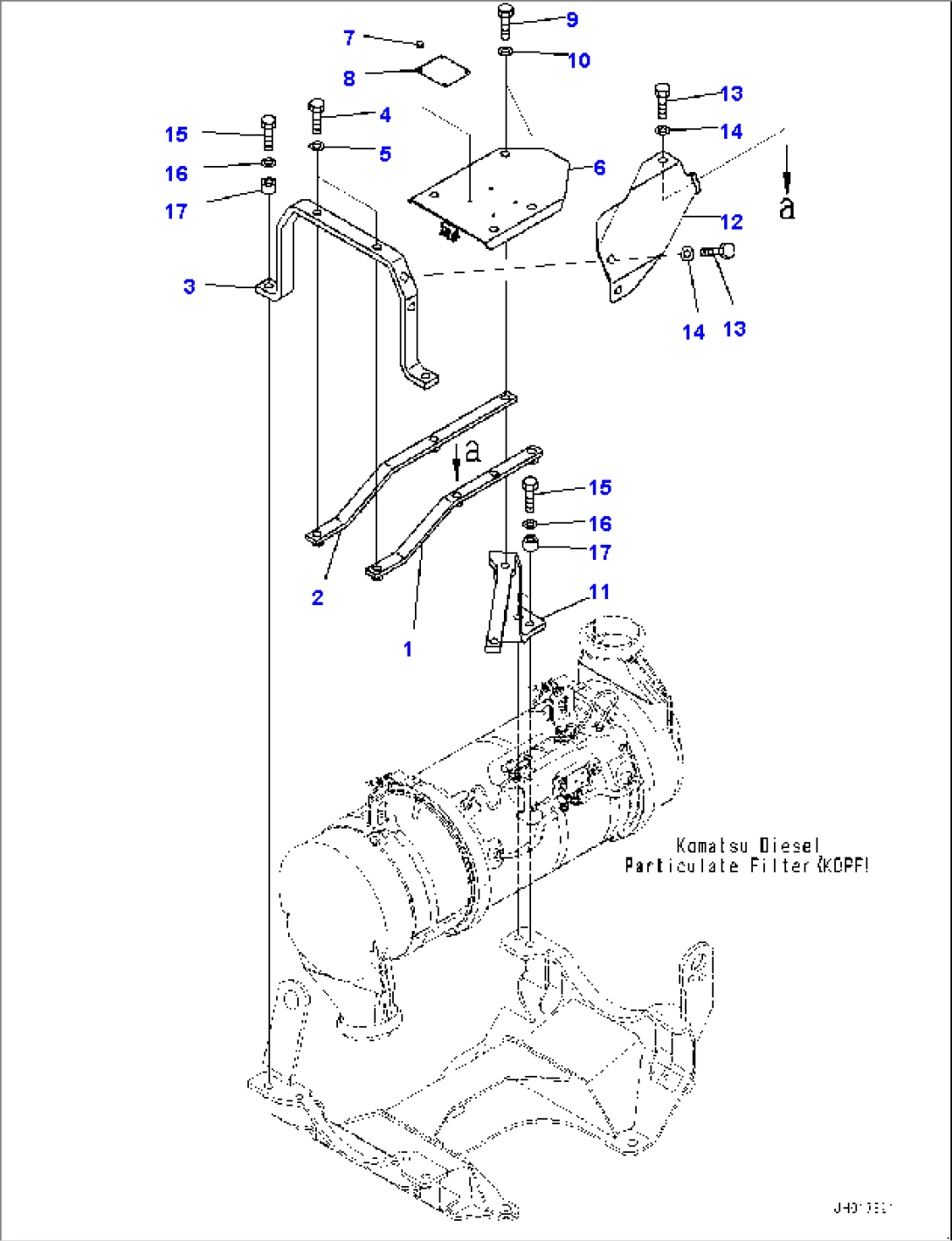

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 2A5-01-11661 | Bracket | 454229- | |
| 2 | 2A5-01-11691 | Bracket | 454229- | |
| 3 | 2A5-01-11641 | Bracket | 454229- | |
| 4 | 01010-81235 | Bolt | 454229- | |
| 5 | 01643-31232 | Washer | 454229- | |
| 5 | 2A5-01-11782 | Cover Assembly | 454229- | |
| 6 | Cover | 454229- | ||
| 7 | 6251-11-8850 | Rivet | 454229- | |
| 8 | 09817-A0753 | Plate, Warning, High Temperature | 454229- | |
| 9 | 01010-81235 | Bolt | 454229- | |
| 10 | 01643-31232 | Washer | 454229- | |
| 11 | 2A5-01-11651 | Bracket | 454229- | |
| 12 | 2A5-01-11681 | Cover | 454229- | |
| 13 | 01010-81235 | Bolt | 454229- | |
| 14 | 01643-31232 | Washer | 454229- | |
| 15 | 01010-81260 | Bolt | 454229- | |
| 16 | 01643-31232 | Washer | 454229- | |
| 17 | 2A5-01-11790 | Spacer | 454229- |
