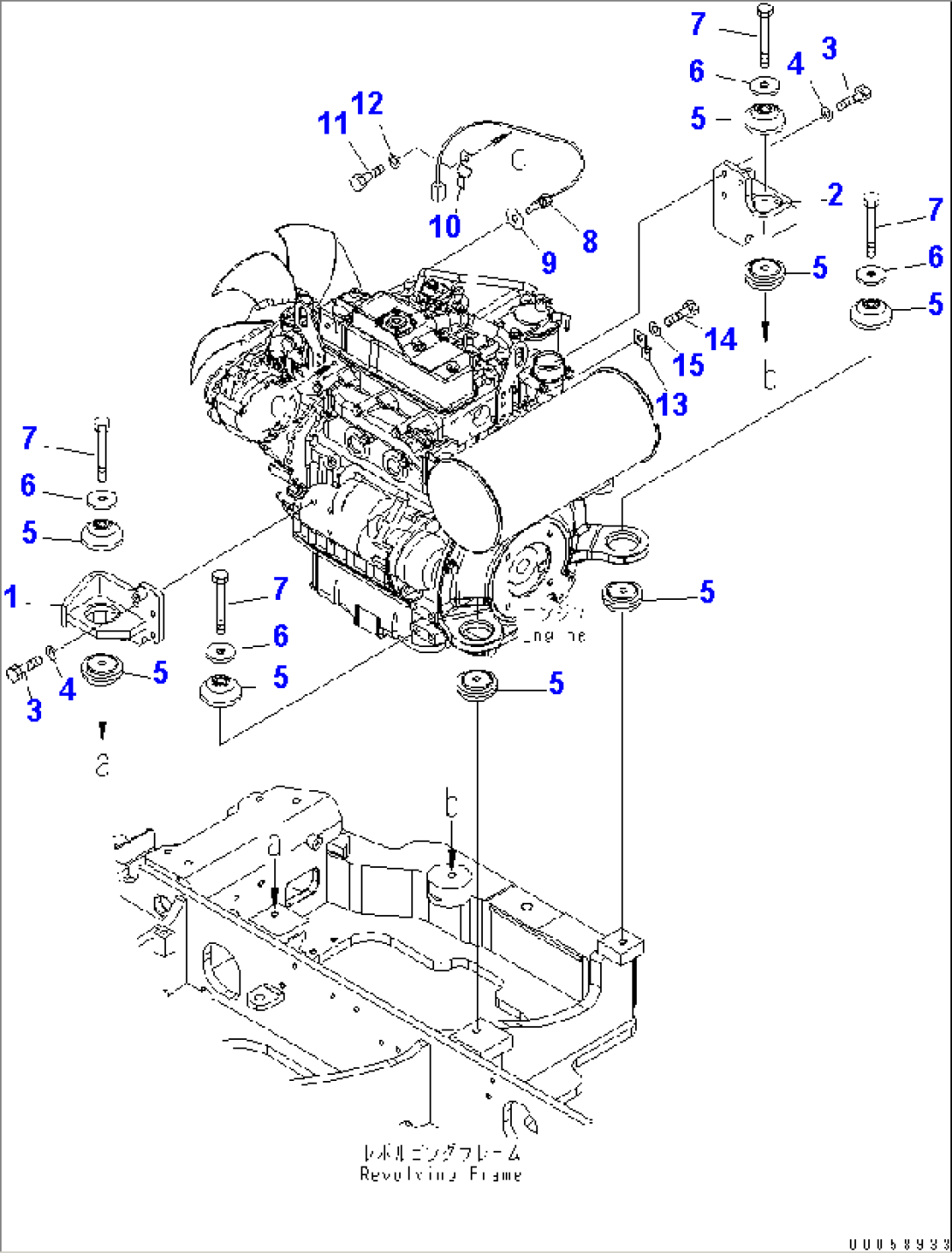

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22L-01-21113 | BRACKET | 23432- | |
| 1 | 22L-01-21112 | BRACKET | 20001-23431 | |
| 2 | 22L-01-21123 | BRACKET | 23432- | |
| 2 | 22L-01-21122 | BRACKET | 20001-23431 | |
| 3 | 01010-81025 | BOLT | 20001- | |
| 4 | 01643-31032 | WASHER | 20001- | |
| 5 | 21U-01-31211 | CUSHION | 20001- | |
| 6 | 21U-01-31221 | WASHER | 20001- | |
| 7 | 01011-81200 | BOLT | 20001- | |
| 8 | YM129150-49360 | GASKET | 20001- | |
| 9 | 7861-93-3320 | SENSOR,WATER TEMPERATURE | 20001- | |
| 10 | 08193-20010 | CLIP | 20001- | |
| 11 | 01010-80616 | BOLT | 20001- | |
| 12 | 01643-30623 | WASHER | 20001- | |
| 13 | 08053-01510 | CLIP | 20001- | |
| 14 | 01010-81016 | BOLT | 20001- | |
| 15 | 01643-31032 | WASHER | 20001- |
