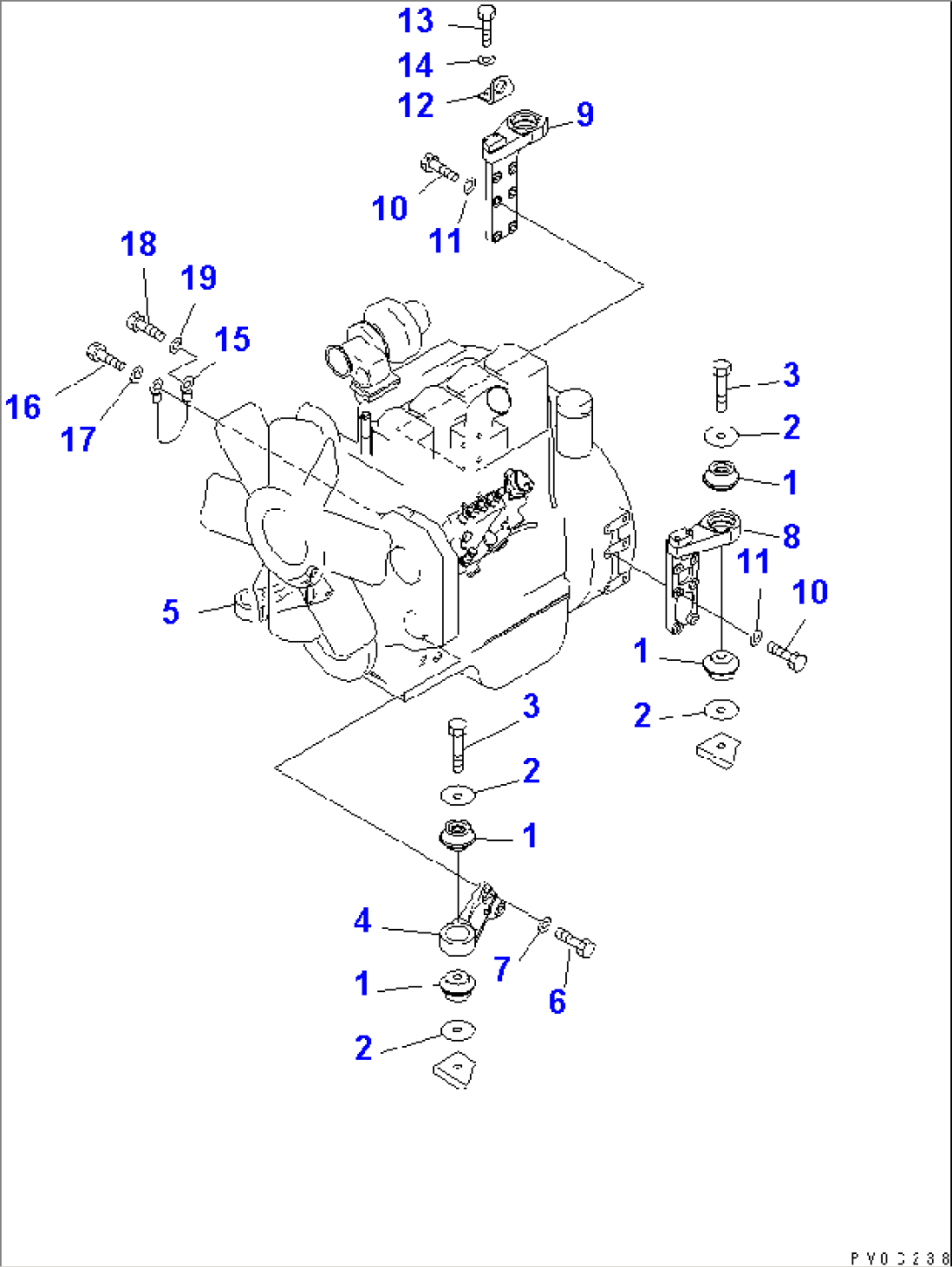

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 124-01-51450 | CUSHION | 1001- | |
| 2 | 113-01-21120 | WASHER | 1001- | |
| 3 | 01011-81620 | BOLT | 1001- | |
| 4 | 114-01-48111 | SUPPORT | 1001- | |
| 5 | 114-01-48121 | SUPPORT | 1001- | |
| 6 | 01010-81235 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- | |
| 8 | 11Y-01-11121 | BRACKET | 1001- | |
| 9 | 11Y-01-11131 | BRACKET | 1001- | |
| 10 | 01010-81250 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 11Y-01-11231 | PLATE | 1001- | |
| 13 | 01010-81025 | BOLT | 1001- | |
| 14 | 01643-31032 | WASHER | 1001- | |
| 15 | 11Y-06-11250 | CABLE | 1001- | |
| 16 | 01010-81020 | BOLT | 1001- | |
| 17 | 01643-31032 | WASHER | 1001- | |
| 18 | 01010-81220 | BOLT | 1001- | |
| 19 | 01643-31232 | WASHER | 1001- |
