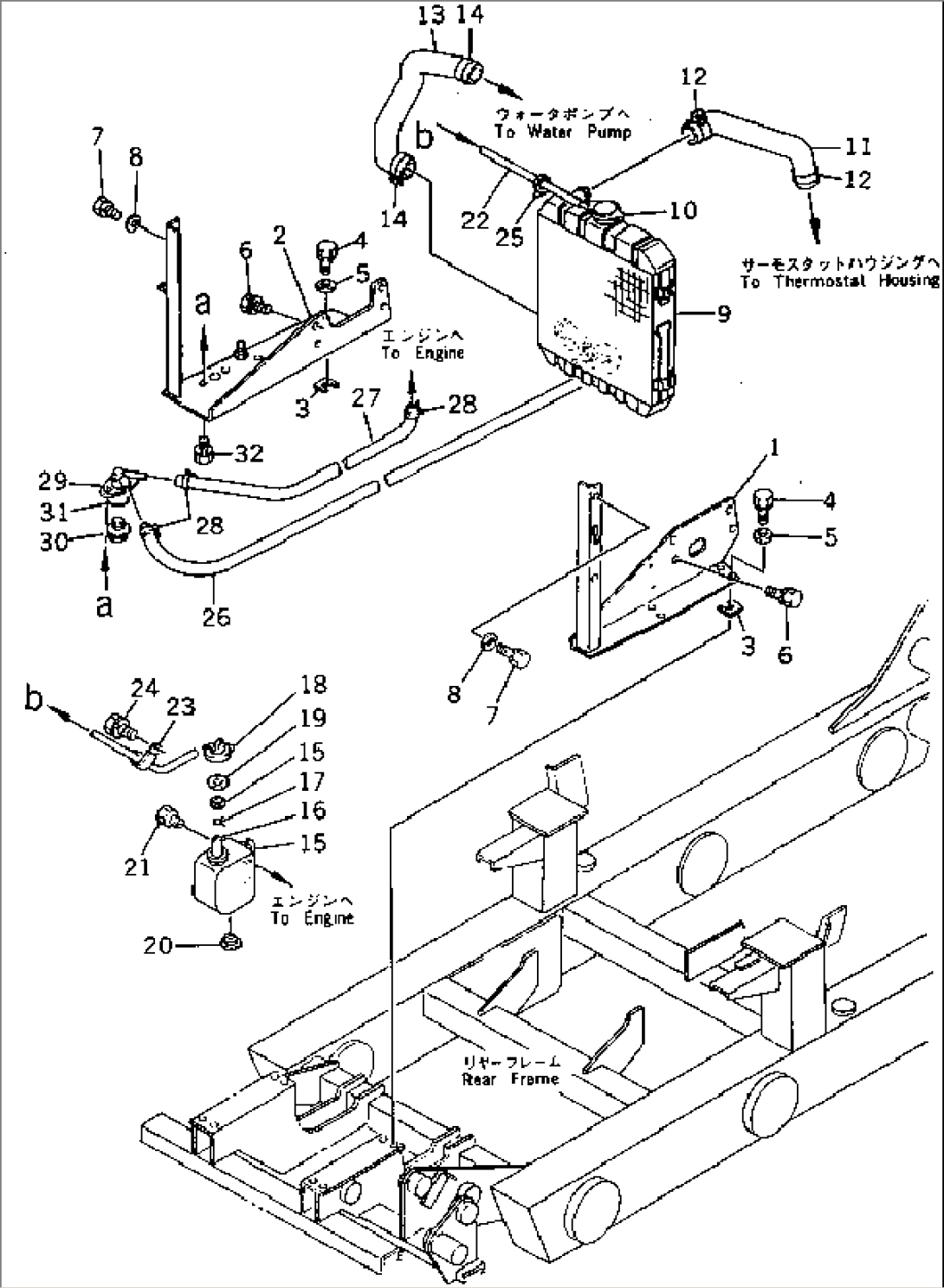

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | YM172647-13110 | BRACKET,L.H. | 00501- | |
| 2 | YM172647-13160 | BRACKET,R.H. | 00501- | |
| 3 | YM933171-17760 | SHIM | 00501- | |
| YM933171-17780 | SHIM | 00501- | ||
| YM933171-17790 | SHIM | 00501- | ||
| 4 | YM29013-120302 | BOLT | 00501- | |
| 5 | YM172730-05250 | WASHER | 00501- | |
| 6 | YM26013-120202 | BOLT | 00501- | |
| 7 | YM26013-080162 | BOLT | 00501- | |
| 8 | YM22137-080000 | WASHER | 00501- | |
| 9 | YM119812-44500 | RADIATOR ASS'Y | 00501- | |
| 10 | YM123682-44210 | CAP | 00501- | |
| 11 | YM119645-49010 | HOSE,WATER INLET | 00501- | |
| 12 | YM23010-038000 | CLAMP | 00501- | |
| 13 | YM171301-49020 | HOSE,WATER OUTLET | 00501- | |
| 14 | YM23010-038000 | CLAMP | 00501- | |
| 15 | YM121468-44510 | TANK ASS'Y | 00501- | |
| 16 | YM23065-070130 | PIPE | 00501- | |
| 17 | YM124450-44560 | CLAMP | 00501- | |
| 18 | YM121450-44531 | CAP | 00501- | |
| 19 | YM121470-44581 | GASKET | 00501- | |
| 20 | YM121468-44540 | PLUG | 00501- | |
| 21 | YM26018-060204 | BOLT | 00501- | |
| 22 | YM172647-13310 | PIPE | 00501- | |
| 23 | YM1E6020-83890 | CLIP | 00501- | |
| 24 | YM26013-080162 | BOLT | 00501- | |
| 25 | YM1E6150-83910 | BAND | 00501- | |
| 26 | YM172137-14630 | HOSE,FUEL | 00501- | |
| 27 | YM172116-14620 | HOSE,FUEL | 00501- | |
| 28 | YM23080-012000 | CLAMP | 00501- | |
| 29 | YM121450-49110 | VALVE ASS'Y | 00501- | |
| 30 | YM121250-49121 | PLUG | 00501- | |
| 31 | YM24311-000160 | O-RING | 00501- | |
| 32 | YM26013-080162 | BOLT | 00501- |
