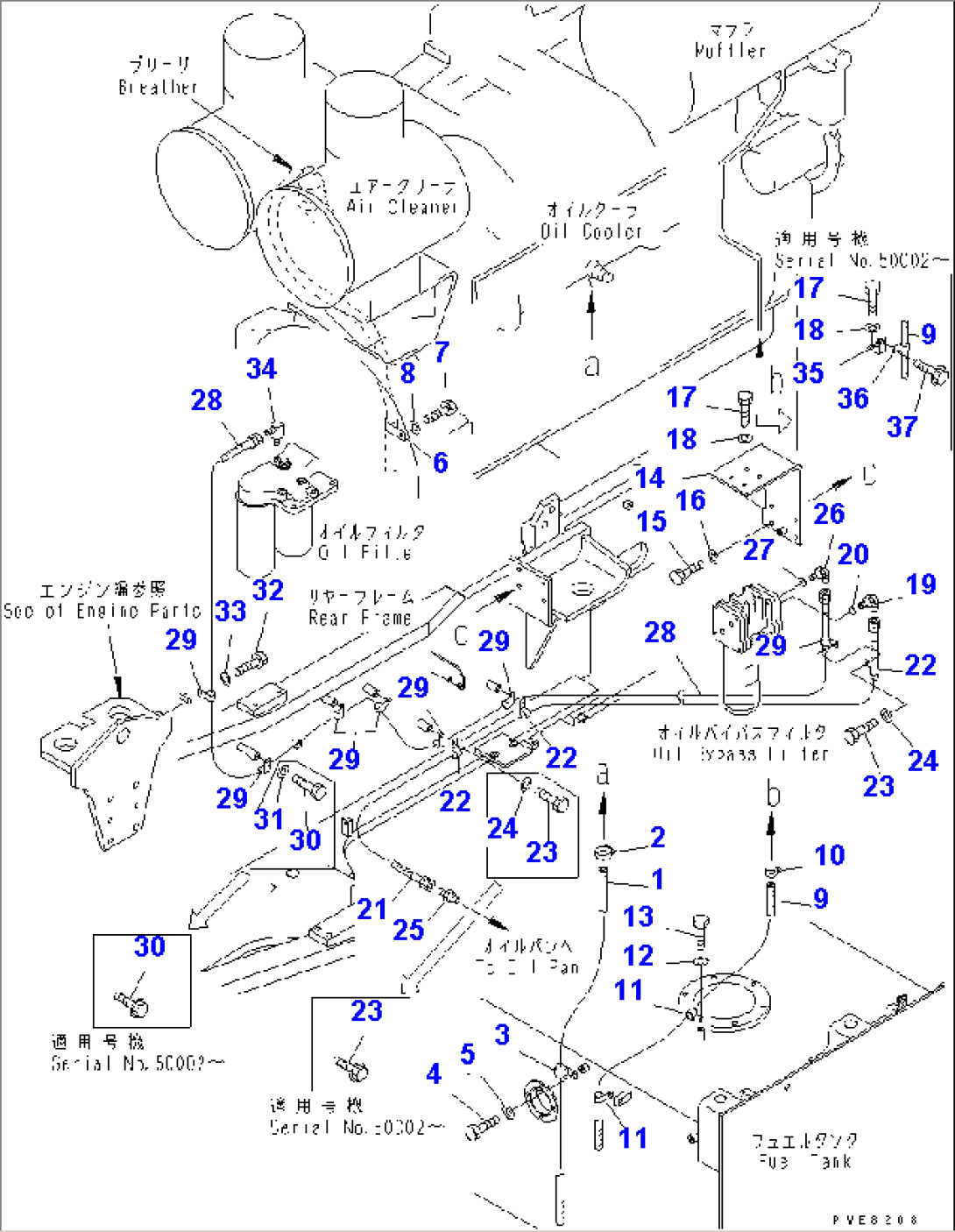

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09483-00514 | HOSE | 50001-51000 | |
| 2 | 07281-00259 | CLAMP | 50001-51000 | |
| 3 | 08036-02514 | CLIP | 50001-51000 | |
| 4 | 01010-81020 | BOLT | 50001-51000 | |
| 5 | 01643-31032 | WASHER | 50001-51000 | |
| 6 | 08036-03014 | CLIP | 50001-51000 | |
| 7 | 01010-81016 | BOLT | 50001-51000 | |
| 8 | 01643-31032 | WASHER | 50001-51000 | |
| 9 | 09483-00312 | HOSE | 50001-51000 | |
| 10 | 07281-00197 | CLAMP | 50001-@ | |
| 11 | 08036-01814 | CLIP | 50001-@ | |
| 12 | 01643-31032 | WASHER | 50001-@ | |
| 13 | 01010-81020 | BOLT | 50001-@ | |
| 14 | 428-01-11661 | PLATE | 50001-51000 | |
| 15 | 01010-81035 | BOLT | 50001-51000 | |
| 16 | 01643-31032 | WASHER | 50001-51000 | |
| 17 | 01010-81030 | BOLT | 50001-51000 | |
| 18 | 01643-31032 | WASHER | 50001-51000 | |
| 19 | 07235-10315 | ELBOW | 50001-51000 | |
| 20 | 07002-22034 | O-RING | 50001-51000 | |
| 21 | 07102-20312 | HOSE | 50001-51000 | |
| 22 | 04434-51810 | CLIP | 50002-51000 | |
| 22 | \0\04434-52212 | CLIP | 50001-50001 | |
| 23 | 01435-01016 | BOLT | 50002-51000 | |
| 23 | \0\01010-81020 | BOLT | 50001-50001 | |
| 24 | 01643-31032 | WASHER | 50001-50001 | |
| 25 | 07238-10315 | CONNECTOR | 50001-51000 | |
| 26 | 07235-10315 | ELBOW | 50001-51000 | |
| 27 | 07002-22034 | O-RING | 50001-51000 | |
| 28 | 07102-20325 | HOSE | 50001-51000 | |
| 29 | 04434-51810 | CLIP | 50002-51000 | |
| 29 | \0\04434-52212 | CLIP | 50001-50001 | |
| 30 | 01435-01016 | BOLT | 50002-51000 | |
| 30 | \0\01010-81020 | BOLT | 50001-50001 | |
| 31 | 01643-31032 | WASHER | 50001-50001 | |
| 32 | 01010-81025 | BOLT | 50001-51000 | |
| 33 | 01643-31032 | WASHER | 50001-51000 | |
| 34 | 195-78-22570 | ELBOW | 50001-51000 | |
| 35 | 427-43-11370 | BRACKET | 50002-51000 | |
| 36 | 08036-93014 | CLIP | 50002-51000 | |
| 37 | 01435-01020 | BOLT | 50002-51000 |
