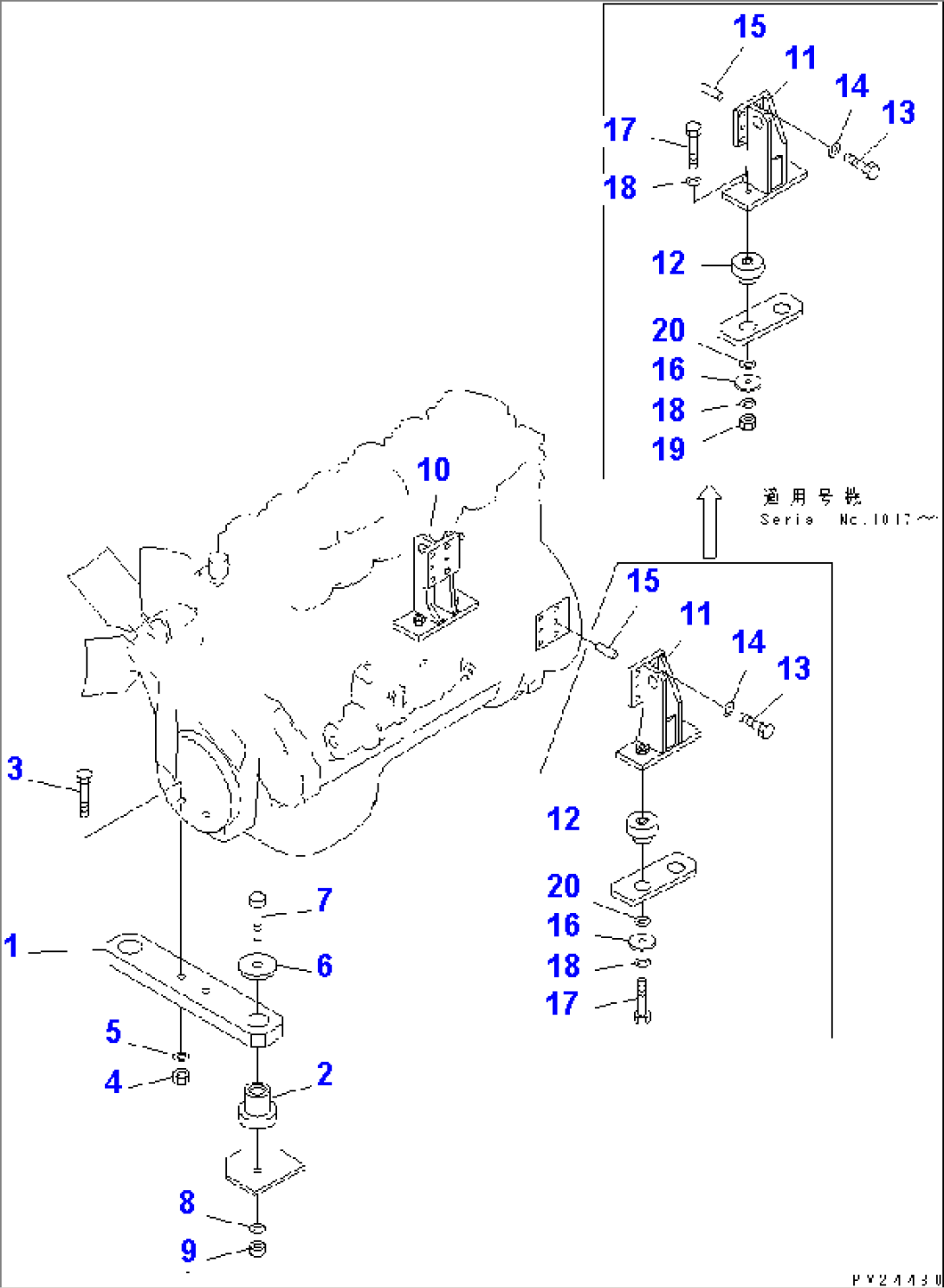

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-01-71110 | SUPPORT,FRONT | 1001-1600 | |
| 2 | 567-01-71140 | CUSHION | 1001-1600 | |
| 3 | 01010-81885 | BOLT | 1001-1600 | |
| 4 | 01643-31845 | WASHER | 1001-1600 | |
| 5 | 01580-11815 | NUT | 1001-1600 | |
| 6 | 425-01-11130 | PLATE | 1001-1600 | |
| 7 | 01011-82450 | BOLT | 1001-1600 | |
| 8 | 01643-32460 | WASHER | 1001-1600 | |
| 9 | 01580-12419 | NUT | 1001-1600 | |
| 10 | 567-01-71122 | BRACKET,R.H. | 1017-@ | |
| 567-01-71121 | BRACKET,R.H. | 1001-1016 | ||
| 11 | 567-01-71132 | BRACKET,L.H. | 1017-@ | |
| 567-01-71131 | BRACKET,L.H. | 1001-1016 | ||
| 12 | 567-01-71150 | CUSHION | 1001-@ | |
| 13 | 01010-81445 | BOLT | 1001-@ | |
| 14 | 01643-31445 | WASHER | 1001-@ | |
| 15 | 04020-01228 | PIN | 1001-@ | |
| 16 | 567-01-41130 | PLATE | 1001-@ | |
| 17 | 01011-81815 | BOLT | 1017-@ | |
| 01011-81810 | BOLT | 1001-1016 | ||
| 18 | 01643-31845 | WASHER | 1017-@ | |
| 01643-31845 | WASHER | 1001-1016 | ||
| 19 | 01580-11815 | NUT | 1017-@ | |
| 20 | 01643-31845 | WASHER | 1001-@ |
