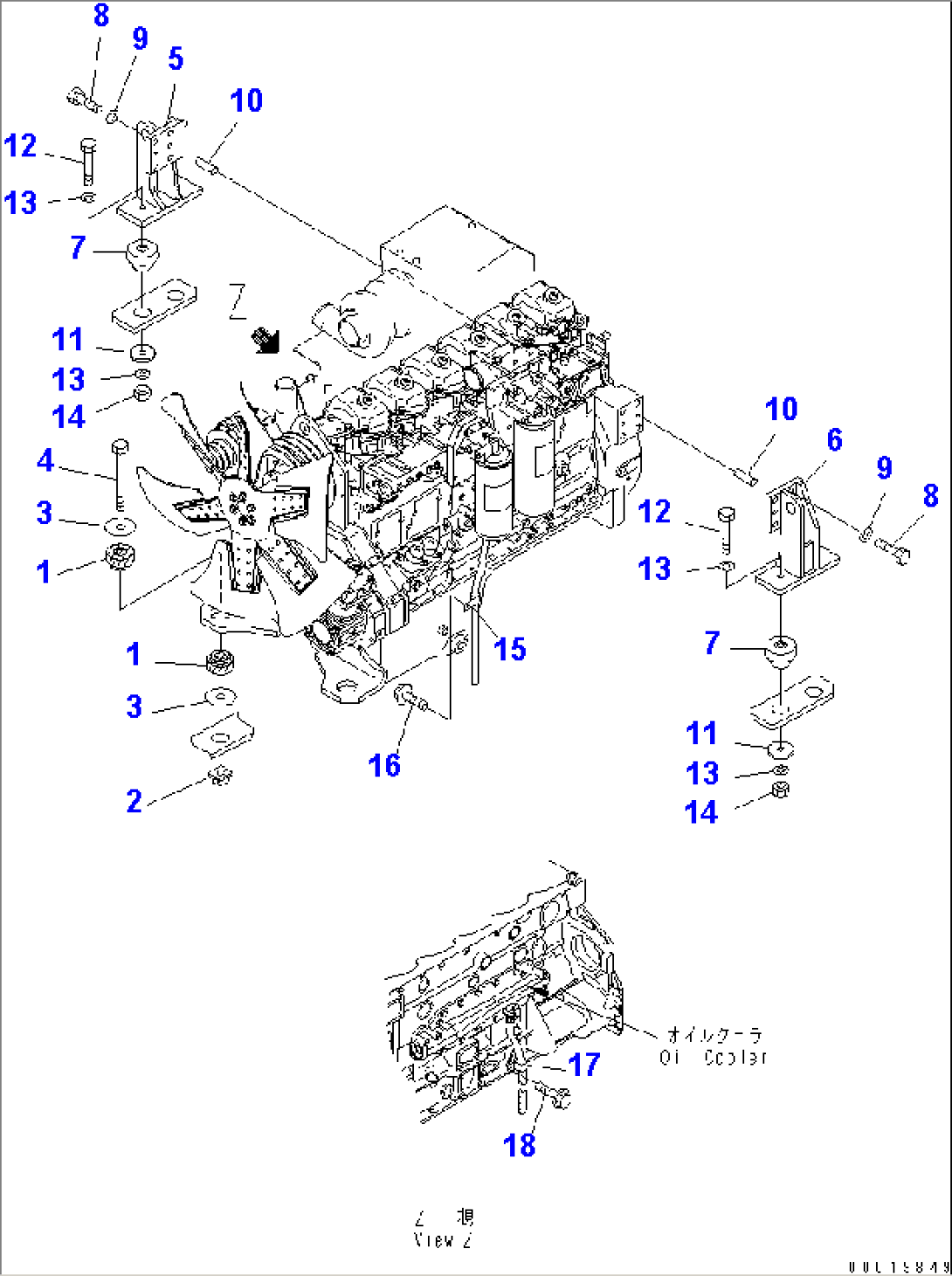

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-01-71170 | CUSHION | 1601- | |
| 2 | 425-01-11250 | PLATE | 1601- | |
| 3 | 567-01-71160 | WASHER | 1601- | |
| 4 | 01011-62225 | BOLT | 1601- | |
| 5 | 567-01-71122 | BRACKET | 1017- | |
| 6 | 567-01-71132 | BRACKET | 1017- | |
| 7 | 567-01-71150 | CUSHION | 1001- | |
| 8 | 01010-81445 | BOLT | 1001- | |
| 9 | 01643-31445 | WASHER | 1001- | |
| 10 | 04020-01228 | PIN | 1001- | |
| 11 | 567-01-41130 | PLATE | 1001- | |
| 12 | 01011-81815 | BOLT | 1017- | |
| 13 | 01643-31845 | WASHER | 1001- | |
| 14 | 01580-11815 | NUT | 1017- | |
| 15 | 04434-52210 | CLIP | 1601- | |
| 16 | 01435-01016 | BOLT | 1601- | |
| 17 | 04434-51310 | CLIP | 1601- | |
| 18 | 01435-01016 | BOLT | 1601- |
