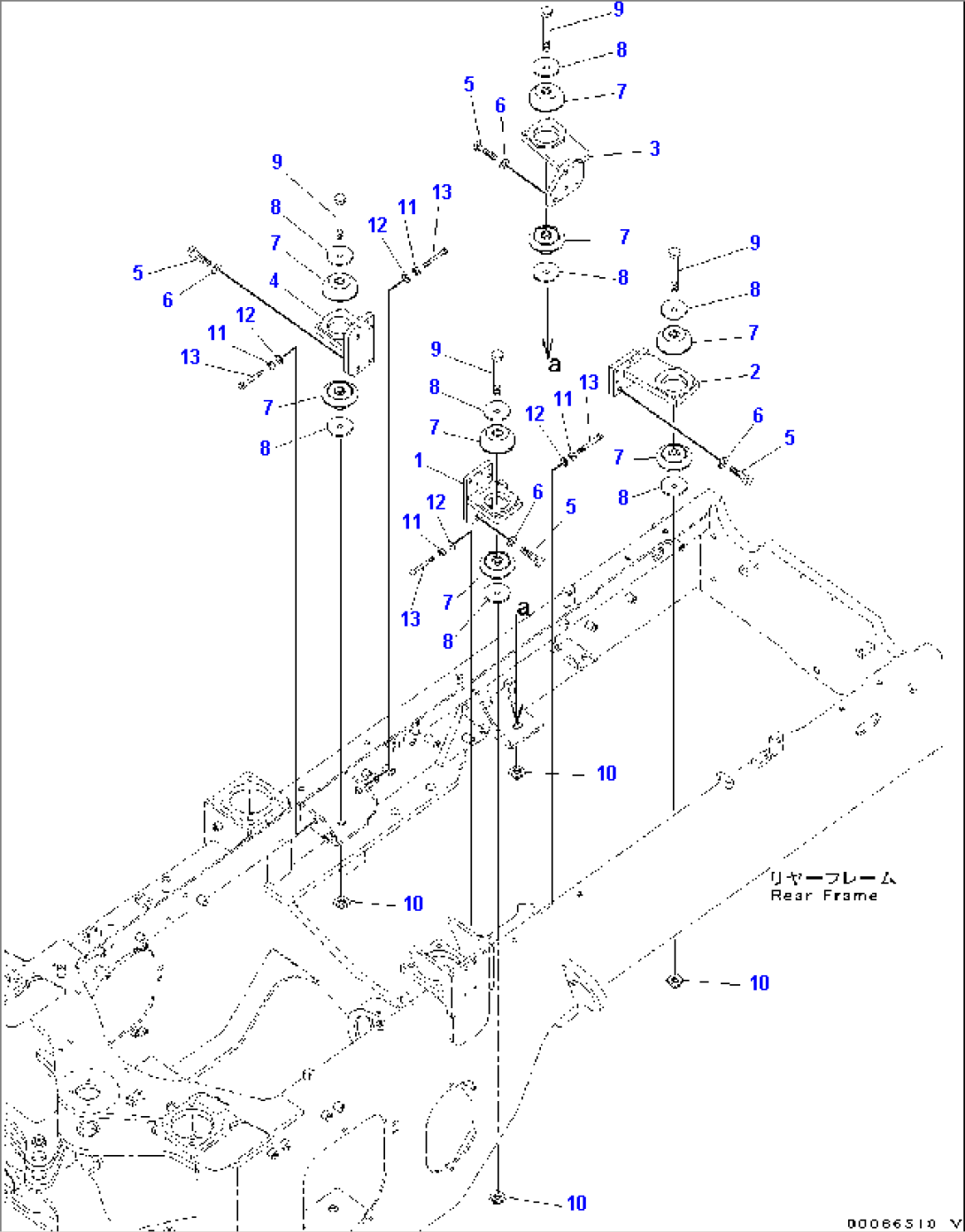

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-01-41140 | Bracket,LHS | C10001- | |
| 2 | 417-01-41150 | Bracket,LHS | C10001- | |
| 3 | 417-01-41160 | Bracket,RHS | C10001- | |
| 4 | 417-01-41170 | Bracket,RHS | C10001- | |
| 5 | 01010-81245 | Bolt | C10001- | |
| 6 | 01643-31232 | Washer | C10001- | |
| 7 | 417-01-41120 | Cushion | C10001- | |
| 8 | 418-01-41180 | Plate | C10001- | |
| 9 | 01011-61640 | Bolt | C10001- | |
| 10 | 418-01-41160 | Plate | C10001- | |
| 11 | 01580-11210 | Nut | C10001- | |
| 12 | 01643-31232 | Washer | C10001- | |
| 13 | 01016-51270 | Bolt | C10001- |
