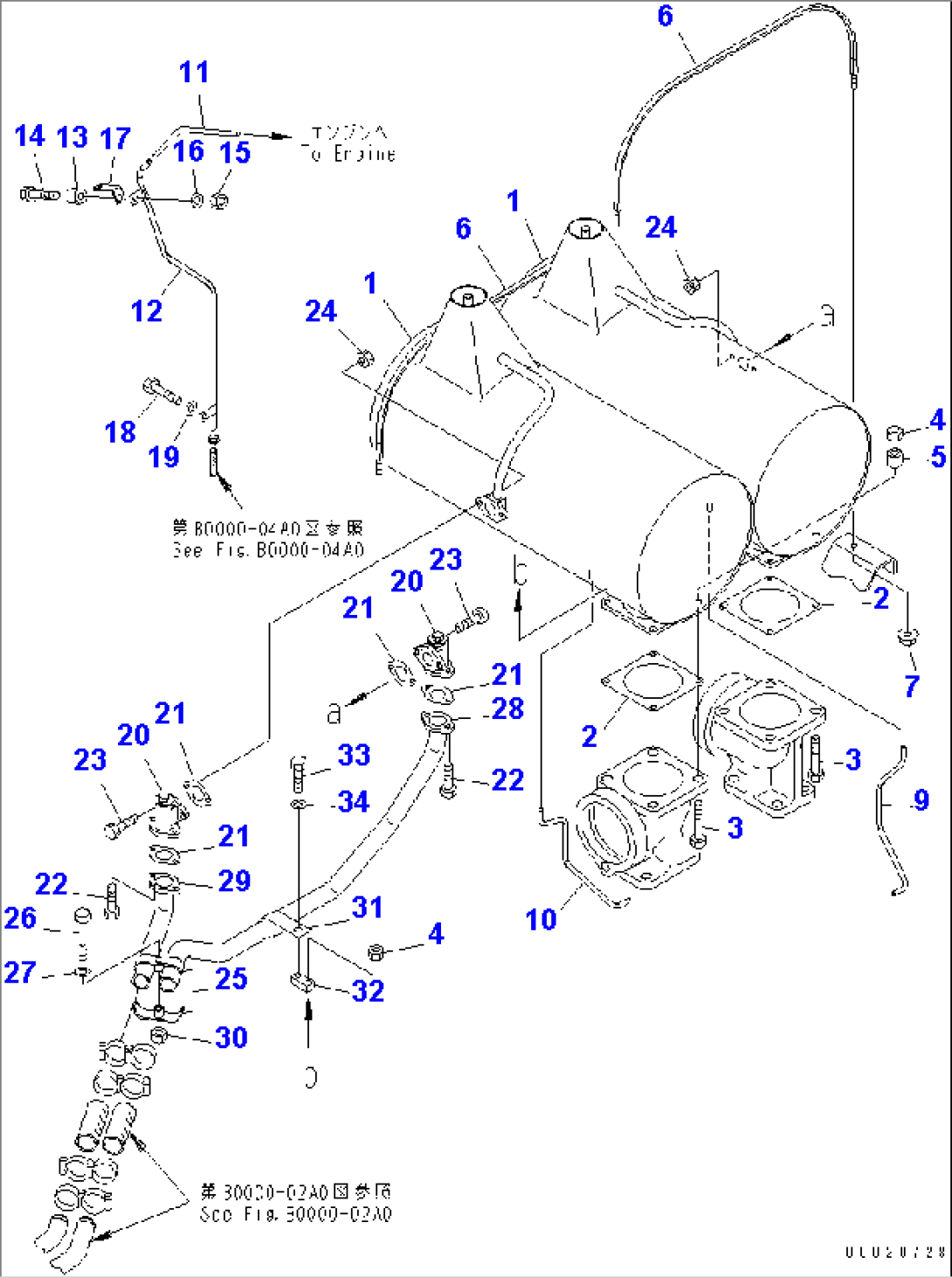

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-01-A1711 | MUFFLER,FRONT | 52001-@ | |
| 1 | 427-01-A1721 | MUFFLER,REAR | 52001-@ | |
| 2 | 6211-11-5890 | GASKET | 52001-@ | |
| 3 | 01010-E1055 | BOLT | 52001-@ | |
| 4 | 01580-01008 | NUT | 52001-@ | |
| 5 | 6631-11-5630 | SPACER | 52001-@ | |
| 6 | 6215-11-5220 | BAND | 52001-@ | |
| 7 | 01594-01008 | NUT | 52001-@ | |
| 9 | 427-01-A2170 | TUBE | 52001-@ | |
| 10 | 427-01-A2160 | TUBE | 52001-@ | |
| 11 | 6215-11-5682 | TUBE | 52001-@ | |
| 12 | 6215-11-5690 | TUBE | 52001-@ | |
| 13 | 175-06-31121 | SPACER | 52001-@ | |
| 14 | 01010-81045 | BOLT | 52001-@ | |
| 15 | 01580-01008 | NUT | 52001-@ | |
| 16 | 01640-21016 | WASHER | 52001-@ | |
| 17 | 6150-65-7440 | STAY | 52001-@ | |
| 18 | 01010-81050 | BOLT | 52001-@ | |
| 19 | 01643-31032 | WASHER | 52001-@ | |
| 20 | 6128-11-5304 | CHECK VALVE ASS'Y | 52001-52008 | |
| 21 | 6128-11-5611 | GASKET | 52001-52008 | |
| 22 | 01010-61030 | BOLT | 52001-52008 | |
| 23 | 01010-61035 | BOLT | 52001-52008 | |
| 24 | 01580-01008 | NUT | 52001-@ | |
| 25 | 175-914-2140 | CLAMP | 52001-52008 | |
| 26 | 01010-61065 | BOLT | 52001-52008 | |
| 27 | 01640-21016 | WASHER | 52001-@ | |
| 28 | 6215-11-5361 | TUBE | 52001-52008 | |
| 29 | 6215-11-5370 | TUBE | 52001-52008 | |
| 30 | 01580-01008 | NUT | 52001-@ | |
| 31 | 6128-11-5872 | CLAMP | 52001-52008 | |
| 32 | 6215-11-5390 | PLATE | 52001-@ | |
| 33 | 01010-81025 | BOLT | 52001-52008 | |
| 34 | 01640-21016 | WASHER | 52001-52008 |
