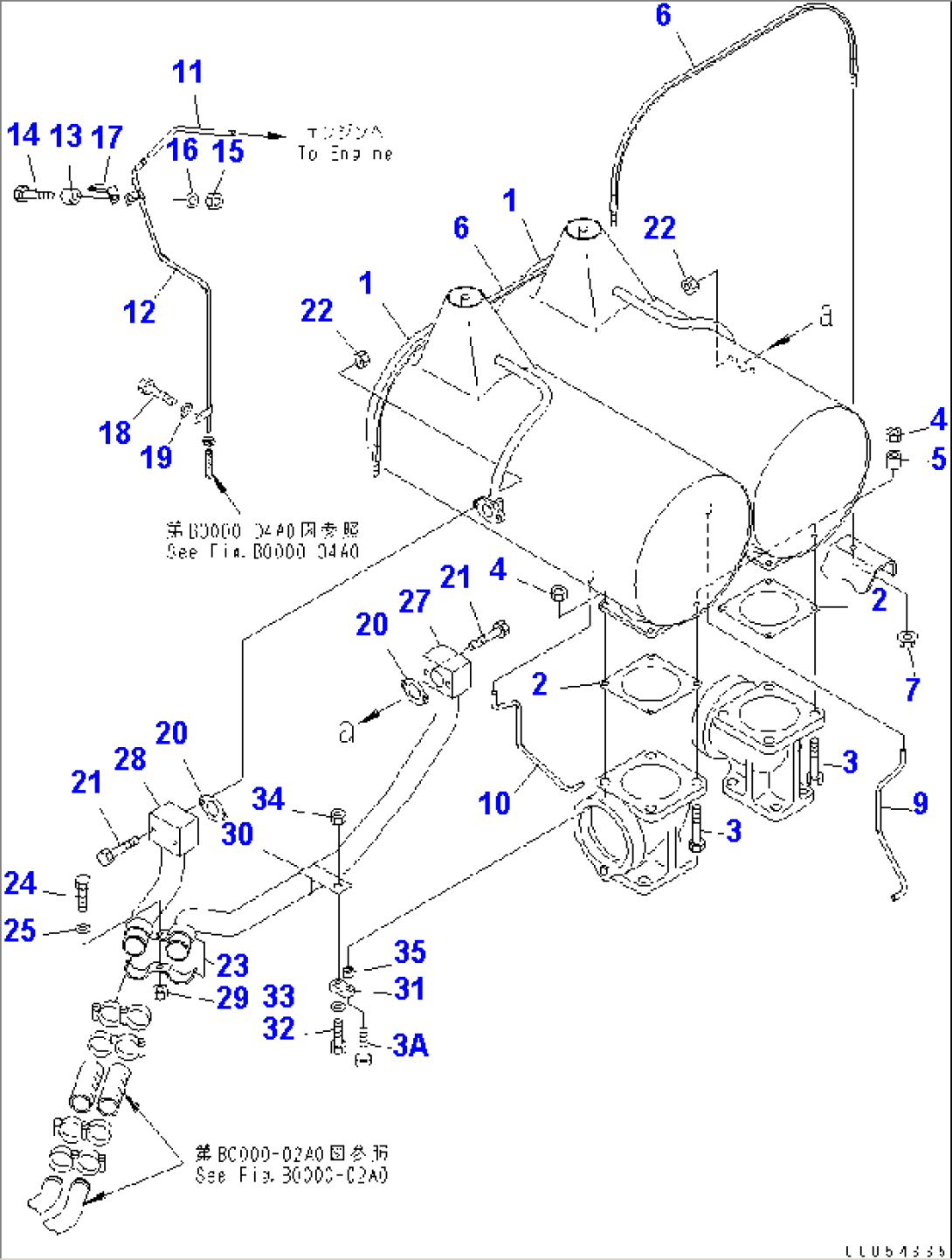

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-01-A1711 | MUFFLER,FRONT | 52001- | |
| 1 | 427-01-A1721 | MUFFLER,REAR | 52001- | |
| 2 | 6211-11-5890 | GASKET | 52001- | |
| 3 | 01010-E1055 | BOLT | 52008- | |
| 3A | 01010-E1060 | BOLT | 52008- | |
| 4 | 01580-01008 | NUT | 52001- | |
| 5 | 6631-11-5630 | SPACER | 52001- | |
| 6 | 6215-11-5220 | BAND | 52001- | |
| 7 | 01594-01008 | NUT | 52001- | |
| 9 | 427-01-A2170 | TUBE | 52001- | |
| 10 | 427-01-A2160 | TUBE | 52001- | |
| 11 | 6215-11-5682 | TUBE | 52001- | |
| 12 | 6215-11-5690 | TUBE | 52001- | |
| 13 | 175-06-31121 | SPACER | 52001- | |
| 14 | 01010-81045 | BOLT | 52001- | |
| 15 | 01580-01008 | NUT | 52001- | |
| 16 | 01640-21016 | WASHER | 52001- | |
| 17 | 6150-65-7440 | STAY | 52001- | |
| 18 | 01010-81050 | BOLT | 52001- | |
| 19 | 01643-31032 | WASHER | 52001- | |
| 20 | 6128-11-5611 | GASKET | 52009- | |
| 21 | 01010-61085 | BOLT | 52009- | |
| 22 | 01580-01008 | NUT | 52001- | |
| 23 | 283-62-11911 | CLAMP | 52009- | |
| 24 | 01010-61030 | BOLT | 52009- | |
| 25 | 01640-21016 | WASHER | 52001- | |
| 27 | 427-01-21351 | TUBE | 52009- | |
| 28 | 427-01-21340 | TUBE | 52009- | |
| 29 | 01580-01008 | NUT | 52001- | |
| 30 | 21T-04-12340 | CLIP | 52009- | |
| 31 | 6215-11-5390 | PLATE | 52001- | |
| 32 | 01010-81040 | BOLT | 52009- | |
| 33 | 01643-31032 | WASHER | 52009- | |
| 34 | 01580-01008 | NUT | 52009- | |
| 35 | 205-965-1310 | SPACER | 52009- |
