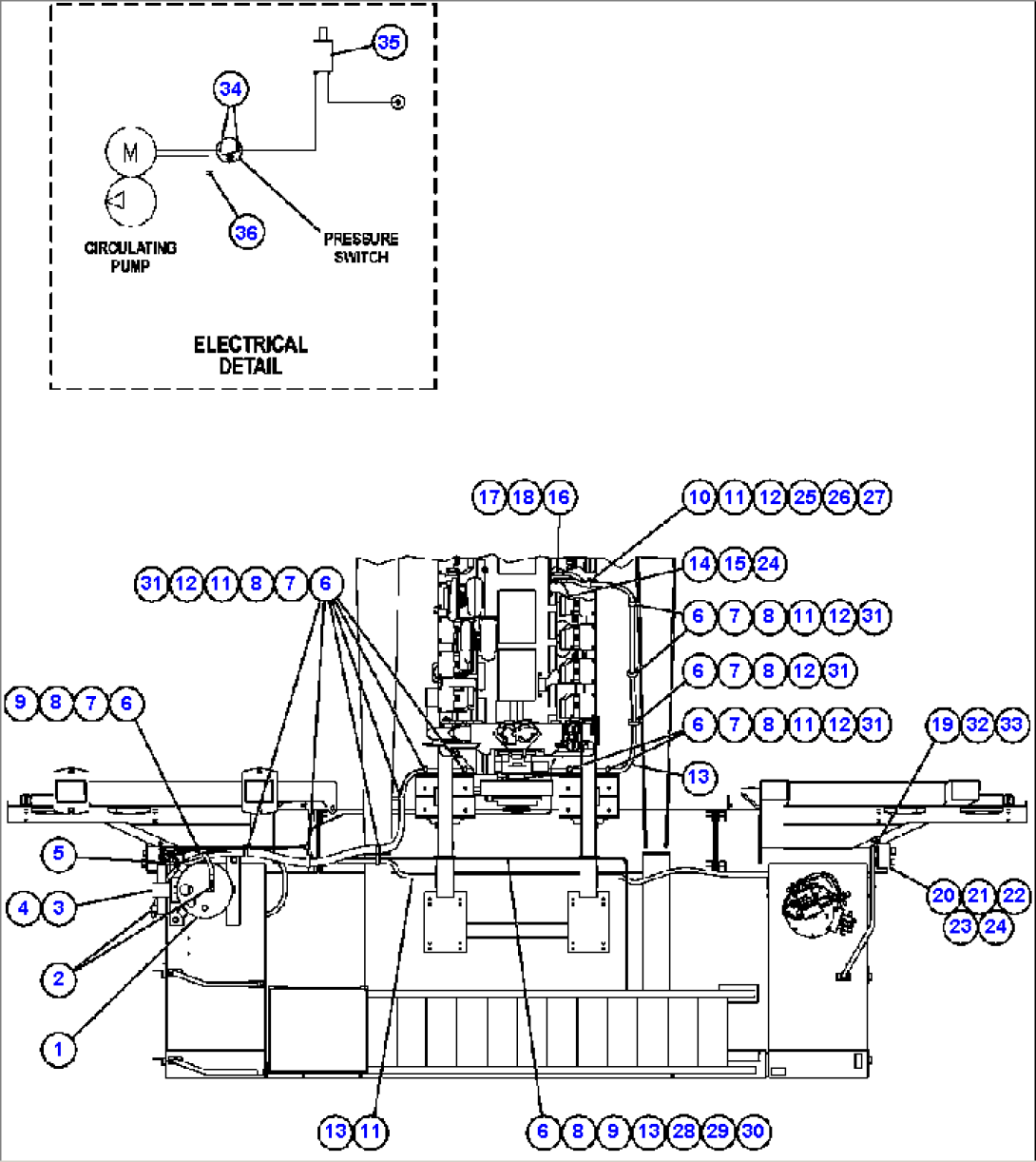

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XA1894 | TANK, OIL RESERVE (1) | | |
| 2 | WB0267 | FITTING, ELBOW - 90 DEG | | |
| 3 | SF9896 | KNIFE, DISCONNECT | | |
| 4 | DL4172 | SLEEVE, INSULATING | | |
| 5 | WB0266 | FITTING, ELBOW - 90 DEG | | |
| 6 | MM0461 | FLAT WASHER - M10 | | |
| 7 | MM0471 | LOCKWASHER - M10 | | |
| 8 | MM0178 | NUT - M10 X 1.50 | | |
| 9 | TR9441 | CLAMP, VINYL - 1 1/4" I.D. | | |
| 10 | EJ2605 | ROD, THREADED | | |
| 11 | EK9883 | SPACER | | |
| 12 | WB3096 | CLAMP, CUSHIONED - 1 1/4" | | |
| 13 | VH5017 | TYRAP | | |
| 14 | HA7858 | HOSE (TOP HOLE) | | |
| 15 | PC1918 | ADAPTER, SUMP | | |
| 16 | HA7859 | HOSE (BOTTOM HOLE) | | |
| 17 | PC1262 | ADAPTER, STRAIGHT | | |
| 18 | WA4896 | FITTING | | |
| 19 | EK0195 | PLATE, MOUNTING | | |
| 20 | BF3361 | BOX, AUTOMATIC TANK FILL CONTROL (2) | | |
| 21 | C5746 | CAPSCREW - 1/4" - 20NC X 3/4" | | |
| 22 | C1546 | FLAT WASHER - 1/4" | | |
| 23 | C5780 | NUT - 1/4" - 20NC | | |
| 24 | WB0467 | FITTING, STRAIGHT | | |
| 25 | TC1233 | NUT - 3/8" - 16NC | | |
| 26 | TC1231 | LOCKWASHER - 3/8" | | |
| 27 | TR4436 | FLAT WASHER - 3/8" | | |
| 28 | VN9913 | CLAMP, VINYL - 1 1/16" I.D. | | |
| 29 | TC1565 | CLAMP, VINYL - 15/16" I.D. | | |
| 30 | TF6925 | CLAMP, VINYL - 3/4" I.D. | | |
| 31 | WB1308 | CLAMP, CUSHIONED - 1 1/16" | | |
| 32 | MM0604 | CAPSCREW - M10 X 1.50 X 20 | | |
| 33 | MM0713 | FLAT WASHER - M10 (HARDENED) | | |
| 34 | VH2583 | TERMINAL, RING | | |
| 35 | 08041-01500 | FUSE - 15 AMP (LOCATED IN AUXILIARY CONTROL CABINET) | | |
| 36 | VH2586 | TERMINAL, RING | | |
| NS|37 | PC1641 | NOTE: (1) INCLUDED IN PC1641 RESERVE SYSTEM KIT. | | |
| NS|38 | | (2) LOCATED ON SAME SIDE AS SERVICE CENTER. | | |
