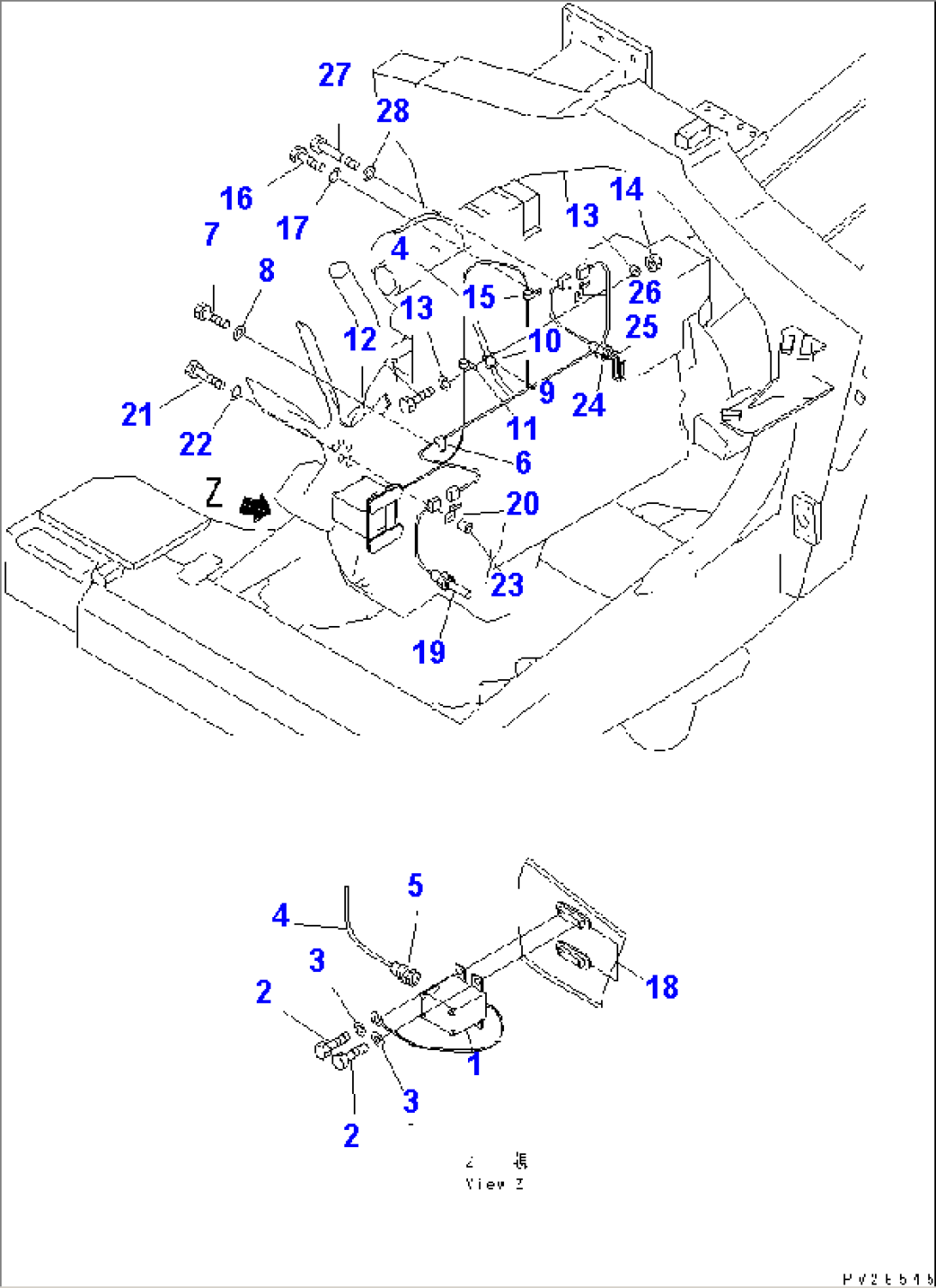

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 198-06-13600 | BOX ASS'Y | 1001- | |
| 2 | 01010-81020 | BOLT | 1001- | |
| 3 | 01643-31032 | WASHER | 1001- | |
| 4 | 566-84-6A930 | WIRING HARNESS | 1001- | |
| 5 | 175-06-37871 | PLUG | 1001- | |
| 6 | 08036-01414 | CLIP | 1001- | |
| 7 | 01010-81016 | BOLT | 1001- | |
| 8 | 01643-31032 | WASHER | 1001- | |
| 9 | 566-06-41290 | INSULATOR | 1001- | |
| 10 | 08036-02514 | CLIP | 1001- | |
| 11 | 08036-01414 | CLIP | 1001- | |
| 12 | 01010-81020 | BOLT | 1001- | |
| 13 | 01643-31032 | WASHER | 1001- | |
| 14 | 01580-11008 | NUT | 1001- | |
| 15 | 08036-01414 | CLIP | 1001- | |
| 16 | 01010-81016 | BOLT | 1001- | |
| 17 | 01643-31032 | WASHER | 1001- | |
| 18 | 566-84-41120 | SEAT WELDED | 1001- | |
| 19 | (600-815-8540) | HEATER | 1001- | |
| 20 | (08053-01510) | CLIP | 1001- | |
| 21 | (01010-81050) | BOLT | 1001- | |
| 22 | (01640-21016) | WASHER | 1001- | |
| 23 | (6144-11-5630) | SPACER | 1001- | |
| 24 | (600-815-8750) | HEATER | 1001- | |
| 25 | (6150-21-1190) | O-RING | 1001- | |
| 26 | (08053-01510) | CLIP | 1001- | |
| 27 | (01010-81090) | BOLT | 1001- | |
| 28 | (01640-21016) | WASHER | 1001- |
