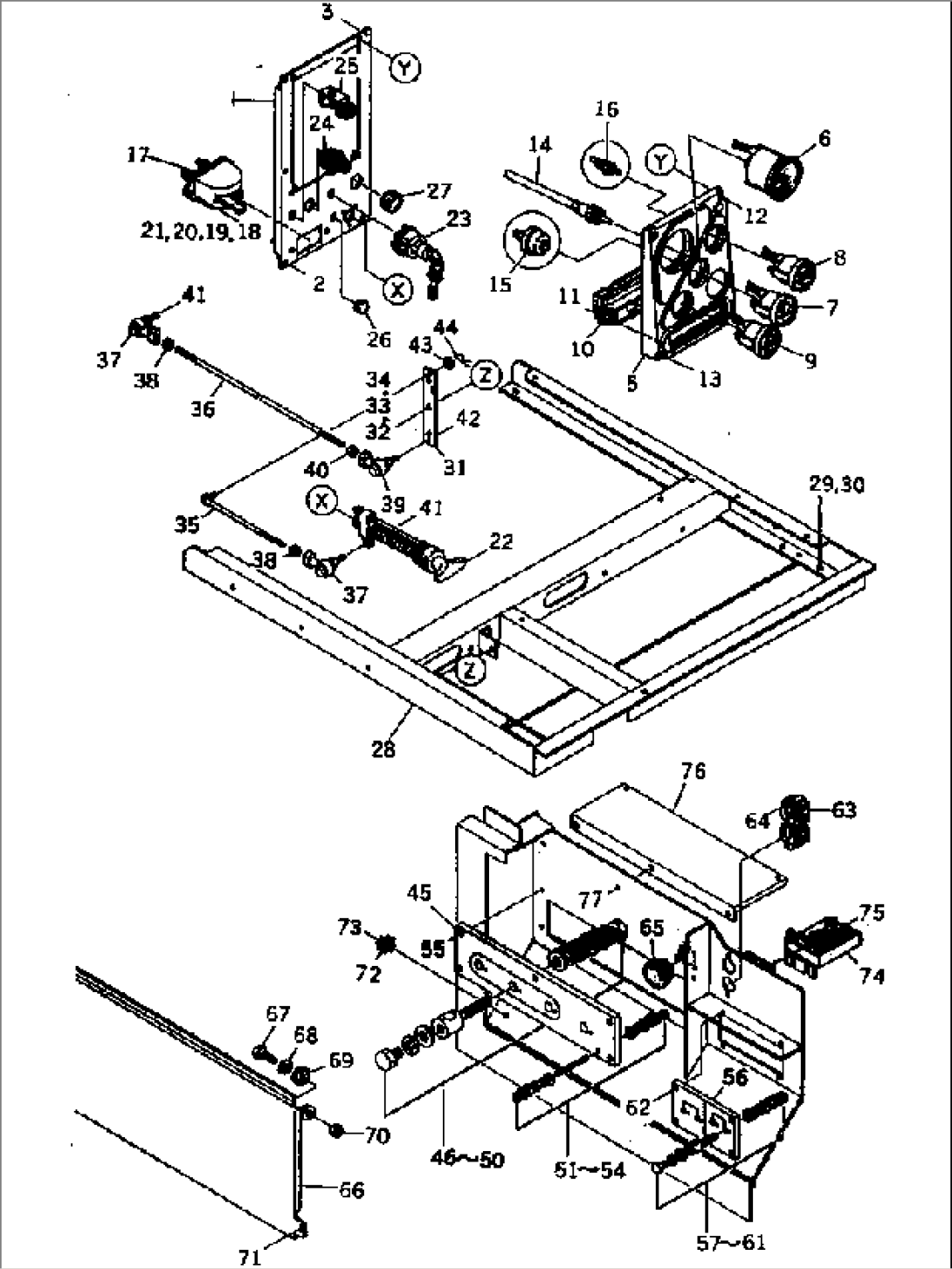

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | DYC03521-00903 | PANEL,OPERATING | 5001- | |
| 2 | DY00171-06016 | BOLT,(NOT SHOWN) | 5001- | |
| 3 | DY02070-06000 | NUT,(NOT SHOWN) | 5001- | |
| DY06021-20554 | METER PANEL ASS'Y | 5001- | ||
| 4 | DY06021-20701 | WIRING HARNESS,(NOT SHOWN) | 5001- | |
| 5 | DY06021-29032 | PANEL,METER | 5001- | |
| 6 | DY06021-20065 | TACHOMETER | 5001- | |
| 7 | DY06021-22036 | GAUGE,OIL PRESSURE | 5001- | |
| 8 | DY06021-23086 | GAUGE,WATER TEMPERATURE | 5001- | |
| 9 | DY06021-21060 | AMMETER,CHARGING | 5001- | |
| 10 | DY06021-15031 | INDICATOR ASS'Y | 5001- | |
| 11 | DY06021-29031 | SCREW,(NOT SHOWN) | 5001- | |
| 12 | DY00218-06020 | SCREW,(NOT SHOWN) | 5001- | |
| 13 | DY00218-06050 | SCREW,(NOT SHOWN) | 5001- | |
| 14 | DY06021-20126 | CABLE,TACHOMETER | 5001- | |
| 15 | DY06021-22251 | UNIT,OIL PRESSURE | 5001- | |
| 16 | DY06021-23250 | UNIT,WATER TEMPERATURE | 5001- | |
| 17 | DY06021-01000 | SWITCH,BATTERY | 5001- | |
| 18 | DY00210-08080 | SCREW,(NOT SHOWN) | 5001- | |
| 19 | DY02070-08000 | NUT,(NOT SHOWN) | 5001- | |
| 20 | DY00400-08000 | WASHER,(NOT SHOWN) | 5001- | |
| 21 | DY00412-08000 | WASHER,(NOT SHOWN) | 5001- | |
| 22 | DY08402-01200 | HANDLE,THROTTLE | 5001- | |
| 23 | (600-815-5390) | SWITCH,(SEE FIG.A9630-01A0) | 5001- | |
| 24 | DY06018-30449 | BUTTON,EMERGENCY STOP | 5001- | |
| 25 | (600-815-3730) | SIGNAL,(SEE FIG.A9050-01A0) | 5001- | |
| 26 | DY06018-50275 | GROMMET | 5001- | |
| 27 | DY06018-51781 | GROMMET | 5001- | |
| 28 | DYC04840-00403 | SUPPORT,LEG | 5001- | |
| 29 | DY00171-10025 | BOLT,(NOT SHOWN) | 5001- | |
| 30 | DY02070-10000 | NUT,(NOT SHOWN) | 5001- | |
| 31 | DYC03551-00304 | LINK,GOVERNOR ROD | 5001- | |
| 32 | DY00100-10035 | BOLT,(NOT SHOWN) | 5001- | |
| 33 | DY00300-10000 | NUT,(NOT SHOWN) | 5001- | |
| 34 | DY00412-10000 | WASHER,(NOT SHOWN) | 5001- | |
| 35 | DY83621-52004 | ROD,GOVERNOR | 5001- | |
| 36 | DY82921-52004 | ROD,GOVERNOR | 5001- | |
| 37 | DY06021-80106 | JOINT,BALL | 5001- | |
| 38 | DY00300-08000 | NUT | 5001- | |
| 39 | DY06021-80107 | JOINT,BALL | 5001- | |
| 40 | DY00365-08000 | NUT | 5001- | |
| 41 | DY02070-06000 | NUT,(NOT SHOWN) | 5001- | |
| 42 | DY00412-06000 | WASHER,(NOT SHOWN) | 5001- | |
| 43 | DY00412-06000 | WASHER,PLAIN | 5001- | |
| 44 | DY06050-10502 | SNAP PIN | 5001- | |
| 45 | DY81318-60103 | BOARD,OUTPUT TERMINAL | 5001- | |
| 46 | DY08018-30304 | TERMINAL,OUTPUT | 5001- | |
| 47 | DY08018-30804 | BOLT | 5001- | |
| 48 | DY00393-16000 | NUT | 5001- | |
| 49 | DY00400-16000 | WASHER,SPRING | 5001- | |
| 50 | DY00414-16000 | WASHER,PLAIN | 5001- | |
| 51 | DY08018-32304 | SCREW,TERMINAL | 5001- | |
| 52 | DY00393-06000 | NUT | 5001- | |
| 53 | DY00400-06000 | WASHER,SPRING | 5001- | |
| 54 | DY00414-06000 | WASHER,PLAIN | 5001- | |
| 55 | DY00171-08035 | BOLT,(NOT SHOWN) | 5001- | |
| 56 | DY08403-08903 | BOARD,OUTPUT TERMINAL | 5001- | |
| 57 | DY08018-31704 | TERMINAL,OUTPUT | 5001- | |
| 58 | DY08018-31804 | BOLT | 5001- | |
| 59 | DY00393-10000 | NUT | 5001- | |
| 60 | DY00400-10000 | WASHER,SPRING | 5001- | |
| 61 | DY00414-10000 | WASHER,PLAIN | 5001- | |
| 62 | DY00171-06025 | BOLT,(NOT SHOWN) | 5001- | |
| 63 | DY06018-11018 | RECEPTACLE,AUX. POWER | 5001- | |
| 64 | DY00271-04016 | SCREW,(NOT SHOWN) | 5001- | |
| 65 | DY06018-51780 | GROMMET | 5001- | |
| 66 | DY81651-82013 | COVER,OUTPUT TERMINAL | 5001- | |
| 67 | DY00100-12045 | BOLT | 5001- | |
| 68 | DY00412-12000 | WASHER,PLAIN | 5001- | |
| 69 | DY08050-09804 | WASHER,RUBBER | 5001- | |
| 70 | DY00300-12000 | NUT | 5001- | |
| 71 | DY00171-08020 | BOLT,(NOT SHOWN) | 5001- | |
| 72 | DY00405-06000 | WASHER,TOOTHED | 5001- | |
| 73 | DY00171-06020 | BOLT,(NOT SHOWN) | 5001- | |
| 74 | DY06018-02807 | CURRENT TRANSFORMER | 5001- | |
| 75 | DY00271-05012 | SCREW,(NOT SHOWN) | 5001- | |
| 76 | DYC02371-00704 | COVER | 5001- | |
| 77 | DY00171-08020 | BOLT,(NOT SHOWN) | 5001- |
