| Item | Part No. | Part Name | Qty | Serial No. |

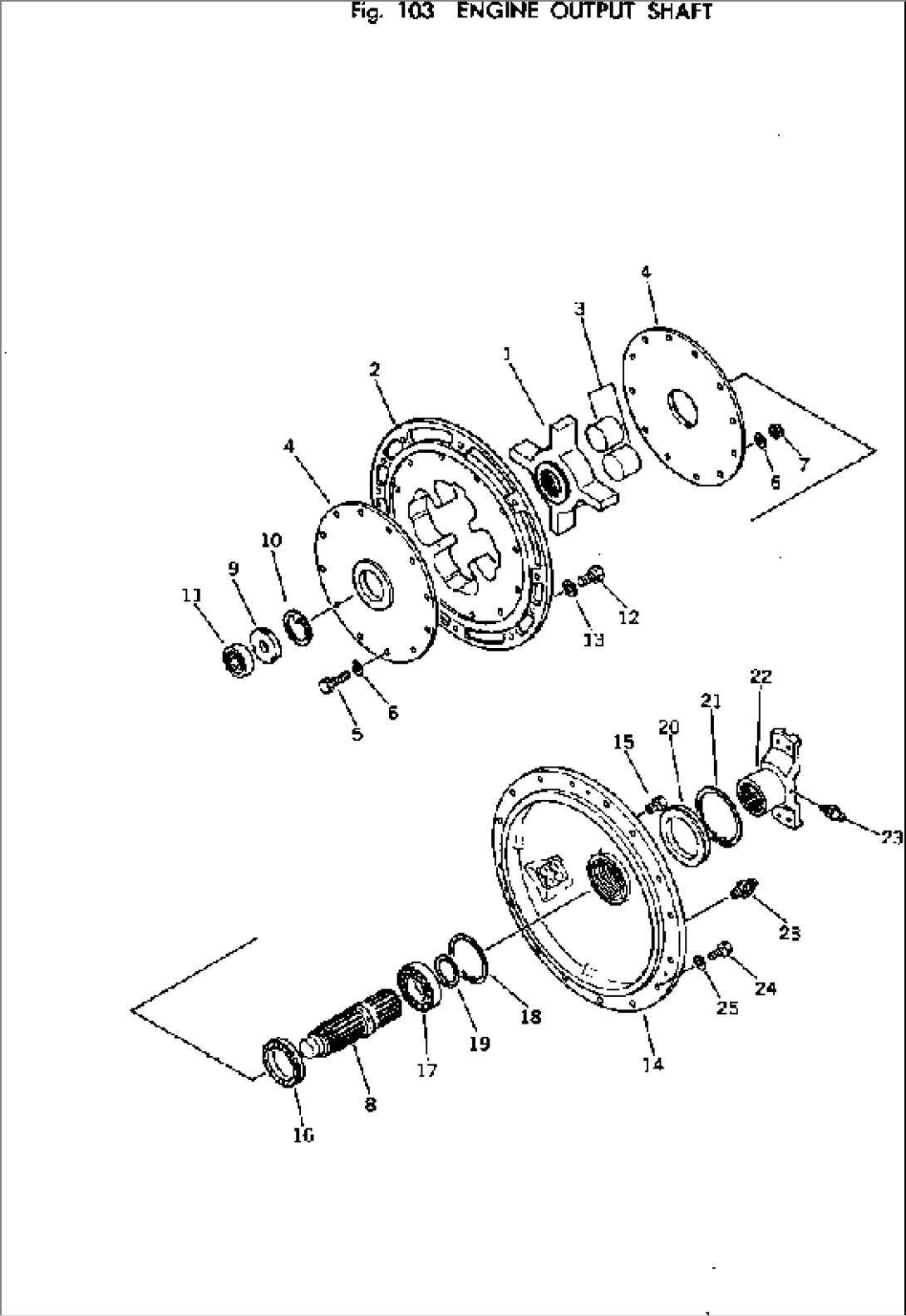

| 569-01-42000 | OUTPUT SHAFT ASS'Y | 1102- | ||
| 1 | 568-01-12152 | BODY,INNER | 1102- | |
| 2 | 568-01-12143 | BODY,OUTER | 1102- | |
| 3 | 285-01-12411 | CUSHION | 1102- | |
| 4 | 568-01-12161 | FLANGE | 1102- | |
| 5 | 01011-31210 | BOLT | 1102- | |
| 6 | 01643-31232 | WASHER | 1102- | |
| 7 | 01580-01210 | NUT | 1102- | |
| 8 | 569-01-12211 | SHAFT,OUTPUT | 1102- | |
| 9 | 569-01-12311 | NUT | 1102- | |
| 10 | 569-01-12321 | WASHER | 1102- | |
| 11 | 06004-06211 | BEARING | 1102- | |
| 12 | 02010-20838 | BOLT | 1102- | |
| 13 | 01643-31445 | WASHER | 1102- | |
| 14 | 569-01-12114 | COVER,OUTPUT SHAFT | 1102- | |
| 15 | 07029-00000 | VALVE | 1102- | |
| 16 | 566-01-22910 | SEAL (KIT) | 1102- | |
| 17 | 06000-06017 | BEARING | 1102- | |
| 18 | 04071-00130 | RING | 1102- | |
| 19 | 04064-08530 | RING | 1102- | |
| 20 | 569-01-12910 | SEAL (KIT) | 1102- | |
| 21 | 04071-00140 | RING | 1102- | |
| 22 | 568-01-12711 | COUPLING | 1102- | |
| 23 | 07020-00000 | FITTING | 1102- | |
| 24 | 02010-70838 | BOLT | 1102- | |
| 25 | 01602-21338 | WASHER | 1102- |
