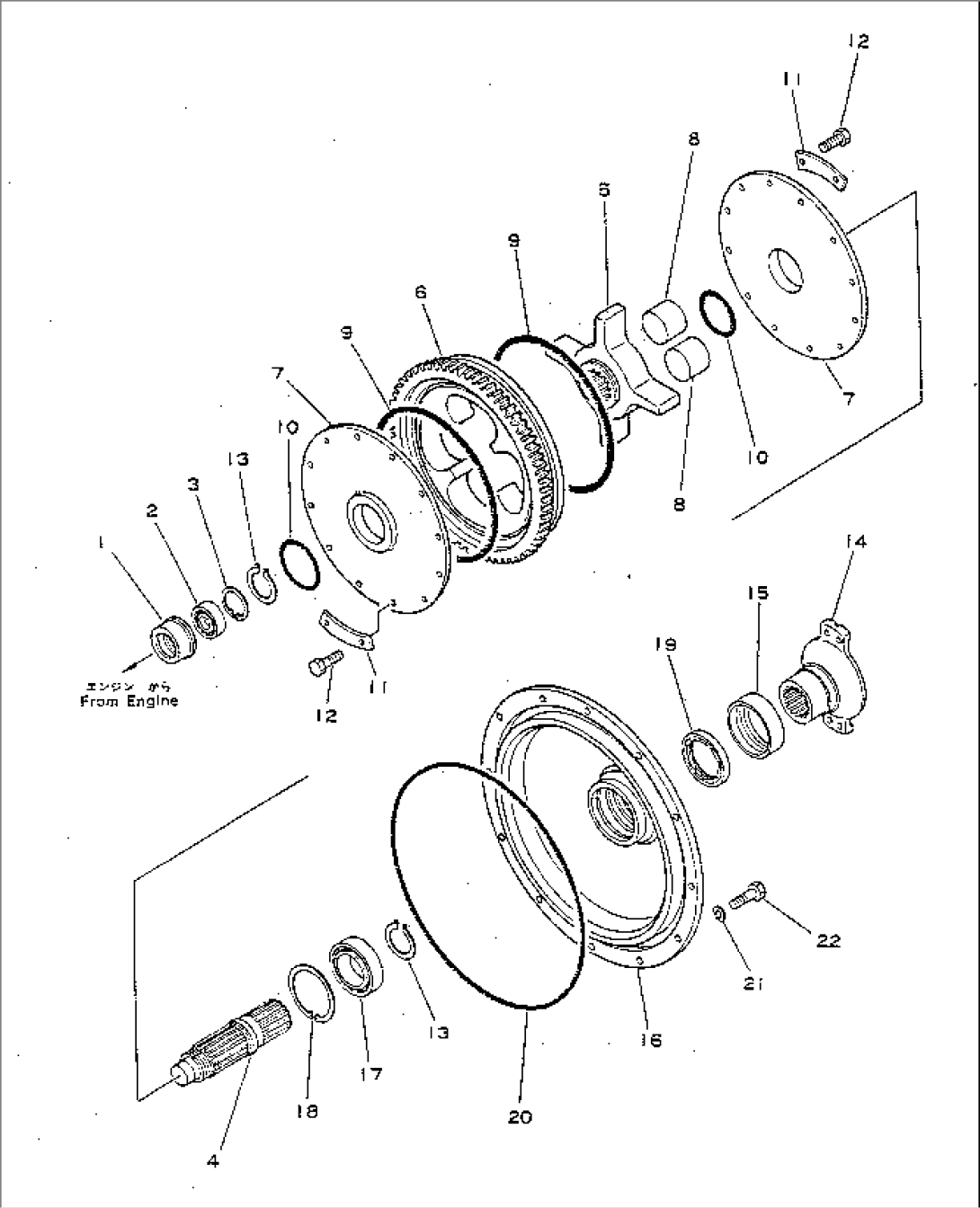

| Item | Part No. | Part Name | Qty | Serial No. |
| 568-01-12001 | SHAFT ASS'Y | 1002-1054 | ||
| 1 | 285-01-12250 | BUSHING | 1002-@ | |
| 2 | 06004-06008 | BEARING | 1002-@ | |
| 3 | 04065-06825 | RING | 1002-@ | |
| 4 | 285-01-12210 | SHAFT | 1002-1054 | |
| 568-01-00010 | BODY ASS'Y | 1002-@ | ||
| 5 | \6\ | BODY | 1002-1054 | |
| 6 | \6\ | BODY | 1002-1054 | |
| 7 | 568-01-12160 | FLANGE | 1002-@ | |
| 8 | 285-01-12410 | CUSHION | 1002-@ | |
| 9 | 07000-25335 | O-RING (KIT) | 1002-1054 | |
| 10 | 07000-25100 | O-RING (KIT) | 1002-1054 | |
| 11 | 285-01-12270 | PLATE | 1002-@ | |
| 12 | 01010-51230 | BOLT | 1002-@ | |
| 13 | 04064-08530 | RING | 1002-1054 | |
| 568-01-00020 | COUPLING ASS'Y | 1002-@ | ||
| 14 | \6\ | COUPLING | 1002-@ | |
| 15 | \6\ | PROTECTOR | 1002-@ | |
| 16 | 568-01-12110 | COVER | 1002-1054 | |
| 17 | 06000-06017 | BEARING | 1002-@ | |
| 18 | 04071-00130 | RING | 1002-@ | |
| 19 | 195-13-12760 | SEAL (KIT) | 1055-@ | |
| \0\568-01-12720 | SEAL (KIT) | 1013-1054 | ||
| \0\07012-10110 | SEAL | 1002-1012 | ||
| 20 | 566-01-12690 | O-RING (KIT) | 1002-1054 | |
| 21 | 01602-21236 | WASHER | 1002-1054 | |
| 22 | 01010-51235 | BOLT | 1002-1054 |
