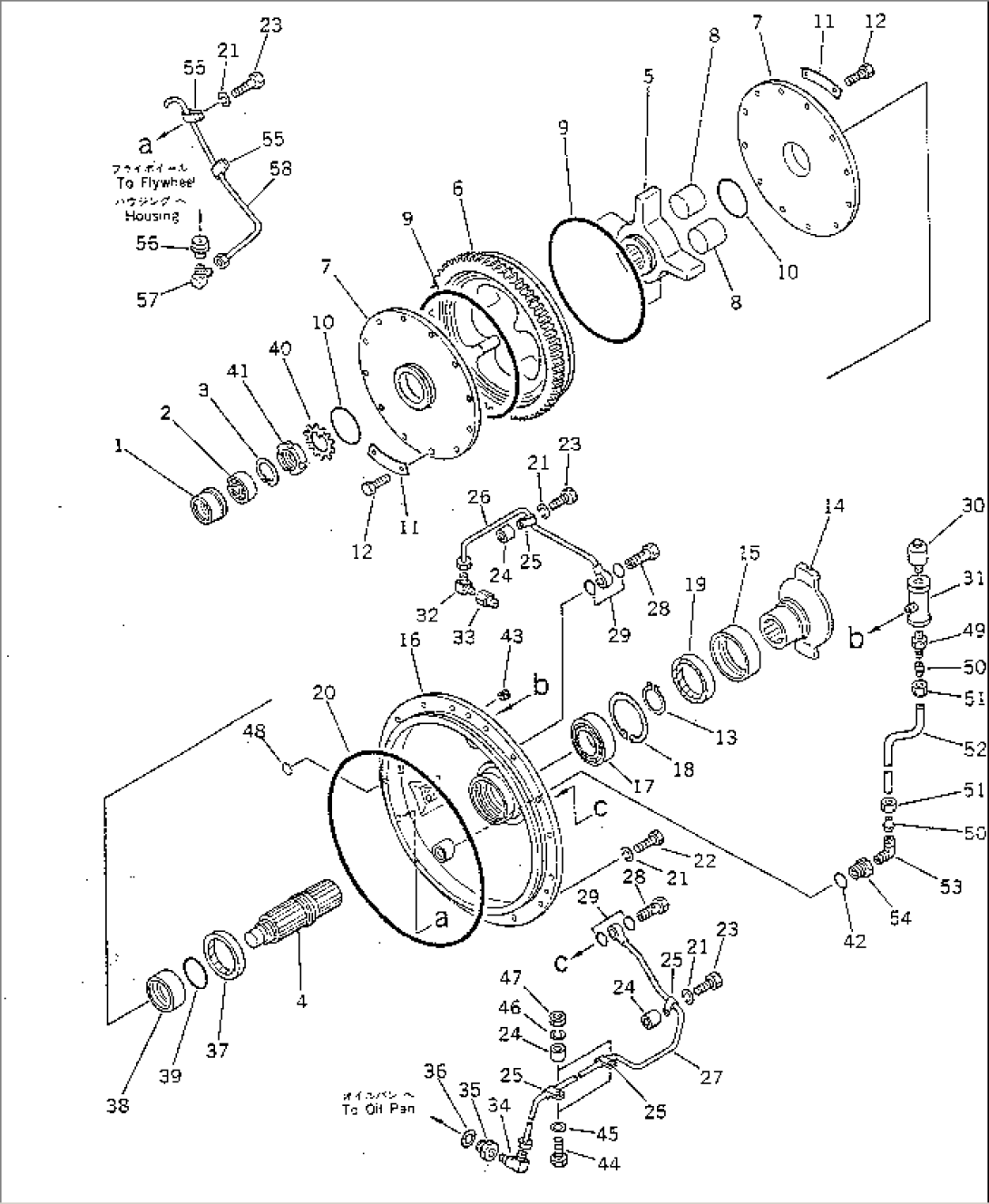

| Item | Part No. | Part Name | Qty | Serial No. |
| 569-01-00100 | OUTPUT SHAFT ASS'Y | 1055-@ | ||
| (\2\569-01-12001) | OUTPUT SHAFT ASS'Y | (1055-1078) | ||
| 1 | 285-01-12250 | BUSHING | 1002-@ | |
| 2 | 06004-06008 | BEARING | 1002-@ | |
| 3 | 04065-06825 | RING | 1002-@ | |
| 4 | 569-01-12210 | SHAFT | 1055-@ | |
| 5 | 568-01-00011 | BODY ASS'Y | 1002-@ | |
| (\2\568-01-00010) | BODY ASS'Y | (1061-1061) | ||
| (\2\568-01-00010) | BODY ASS'Y | (1002-1057) | ||
| 5 | \6\ | BODY | 1062- | |
| \6\ | BODY | 1061-1061 | ||
| \6\ | BODY | 1058-1060 | ||
| \6\ | BODY | 1002-1057 | ||
| 6 | \6\ | BODY | 1062- | |
| \6\ | BODY | 1061-1061 | ||
| \6\ | BODY | 1058-1060 | ||
| \6\ | BODY | 1002-1057 | ||
| 7 | 568-01-12160 | FLANGE | 1002-@ | |
| 8 | 285-01-12411 | CUSHION | 1002-@ | |
| (\2\285-01-12410) | CUSHION | (1002-1064) | ||
| 9 | 07000-05335 | O-RING (KIT) | 1055-@ | |
| 10 | 07000-05100 | O-RING (KIT) | 1055-@ | |
| 11 | 285-01-12270 | PLATE | 1002-@ | |
| 12 | 01010-51230 | BOLT | 1002-@ | |
| 13 | 04064-08530 | RING | 1055-@ | |
| 568-01-00020 | COUPLING ASS'Y | 1002-@ | ||
| 14 | \6\ | COUPLING | 1002-@ | |
| 15 | \6\ | PROTECTOR | 1002-@ | |
| 16 | \3\569-01-12111 | COVER | 1055-1078 | |
| (569-01-12112{07041-13012)} | ||||
| 17 | 06000-06017 | BEARING | 1002-@ | |
| 18 | 04071-00130 | RING | 1002-@ | |
| 19 | 195-13-12760 | SEAL (KIT) | 1055-@ | |
| 20 | 566-09-21110 | O-RING (KIT) | 1055-@ | |
| 21 | 01602-21338 | WASHER | 1055-@ | |
| 22 | 02010-70838 | BOLT | 1055-@ | |
| 23 | 02010-70864 | BOLT | 1055-@ | |
| 24 | 566-01-12350 | SPACER | 1055-@ | |
| 25 | 08036-10814 | CLIP | 1055-@ | |
| 26 | 569-01-12521 | TUBE | 1055-@ | |
| 27 | 569-01-12530 | TUBE | 1055-@ | |
| 28 | 569-01-12580 | BOLT | 1055-@ | |
| 29 | 07000-02012 | O-RING (KIT) | 1055-@ | |
| 30 | 07030-00252 | BREATHER | 1055-@ | |
| 31 | 569-01-12930 | NIPPLE | 1055-1078 | |
| 32 | 569-01-12590 | ELBOW | 1055-@ | |
| 33 | 569-01-12570 | NIPPLE | 1055-@ | |
| 34 | 569-01-12510 | ELBOW | 1055-@ | |
| 35 | 6715-21-5930 | CONNECTOR | 1055-@ | |
| 36 | 6610-81-4150 | GASKET (KIT) | 1055-@ | |
| 37 | 568-13-13340 | SEAL (KIT) | 1055-@ | |
| 38 | 569-01-12220 | SPACER | 1055-@ | |
| 39 | 07000-02095 | O-RING (KIT) | 1055-@ | |
| 40 | 569-01-12321 | WASHER | 1055-@ | |
| 41 | 569-01-12311 | NUT | 1055-@ | |
| 42 | 07002-03034 | O-RING (KIT) | 1055-@ | |
| 43 | 07049-01215 | PLUG | 1055-@ | |
| 44 | 02010-70870 | BOLT | 1055-@ | |
| 45 | 01642-21216 | WASHER | 1055-@ | |
| 46 | 01602-21338 | WASHER | 1055-@ | |
| 47 | 02205-10812 | NUT | 1055-@ | |
| 48 | 07000-02018 | O-RING (KIT) | 1055-@ | |
| 49 | 07836-00817 | CONNECTOR | 1055-1078 | |
| 50 | 07831-00813 | SLEEVE | 1055-1078 | |
| 51 | 07832-00817 | NUT | 1055-1078 | |
| 52 | 07822-00805 | TUBE | 1055-1078 | |
| 53 | 07834-00817 | ELBOW | 1055-1078 | |
| 54 | 569-01-12960 | PLUG | 1055-1078 | |
| 55 | 08036-11214 | CLIP | 1055-@ | |
| 56 | 569-01-12950 | PLUG | 1055-@ | |
| 57 | 566-35-12260 | ELBOW | 1055-@ | |
| 58 | 569-01-12980 | TUBE | 1055-@ |
