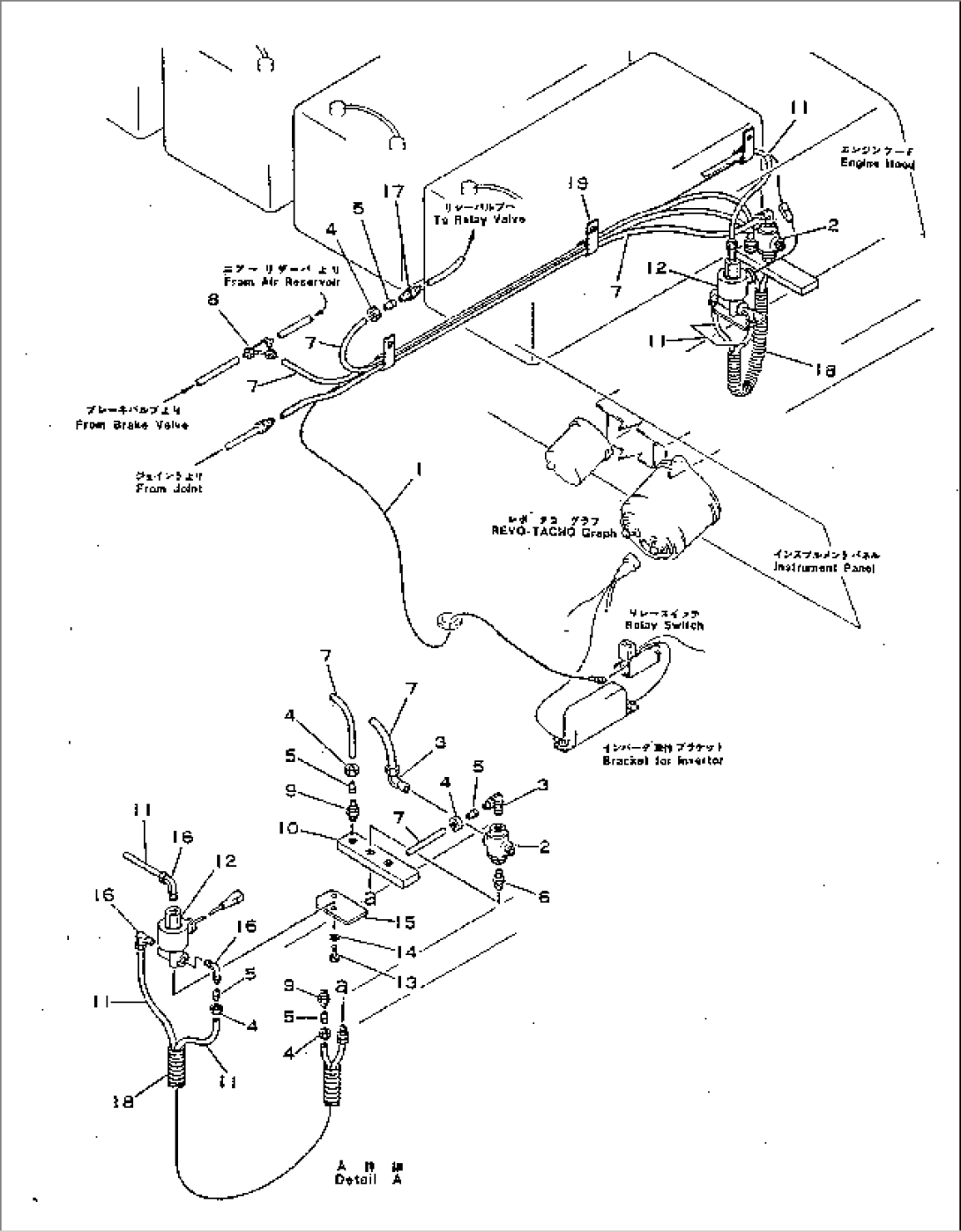

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 568-91-13130 | CABLE | 1002- | |
| 2 | 281-34-12300 | VALVE ASS'Y | 1002- | |
| 3 | 07834-00617 | ELBOW | 1002- | |
| 4 | 07832-00614 | NUT | 1002- | |
| 5 | 07831-00612 | SLEEVE | 1002- | |
| 6 | 07325-10300 | NIPPLE | 1002- | |
| 7 | 07822-00612 | TUBE | 1002- | |
| 8 | 566-35-15410 | TEE | 1002- | |
| 9 | 07836-00617 | CONNECTOR | 1002- | |
| 10 | 581-35-14510 | JOINT | 1002- | |
| 11 | 07822-00604 | TUBE | 1002- | |
| 12 | 569-35-11410 | SOLENOID VALVE ASS'Y | 1002- | |
| 13 | 01010-50620 | BOLT | 1002- | |
| 14 | 01602-20619 | WASHER | 1002- | |
| 15 | 568-91-13120 | PLATE | 1002- | |
| 16 | 07834-00613 | ELBOW | 1002- | |
| 17 | 07837-00614 | CONNECTOR | 1002- | |
| 18 | 565-04-11420 | TUBE | 1002- | |
| 19 | 08036-02514 | CLIP | 1002- |
