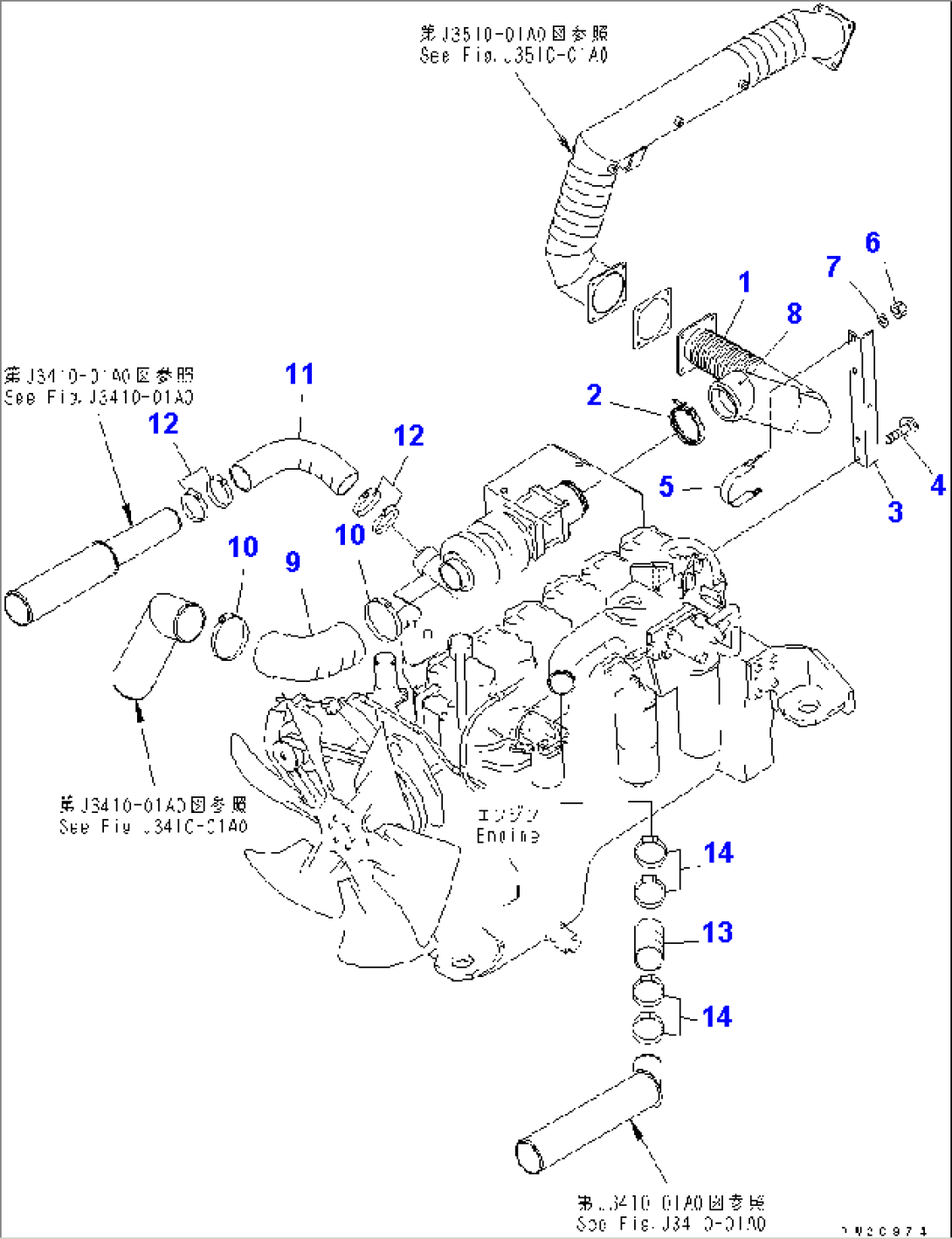

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-02-11111 | TUBE | 1001- | |
| 2 | 6151-11-5361 | CLAMP | 1001- | |
| 3 | 56D-02-11120 | BRACKET | 1001- | |
| 4 | 01435-01020 | BOLT | 1001- | |
| 5 | 56D-02-11810 | CLAMP | 1001- | |
| 6 | 01580-11008 | NUT | 1001- | |
| 7 | 01643-31032 | WASHER | 1001- | |
| 8 | 56D-02-11131 | COVER | 1001- | |
| 9 | 569-02-6E140 | HOSE | 1001- | |
| 10 | 07289-00105 | CLAMP | 1001- | |
| 11 | 6152-12-4930 | HOSE | 1001- | |
| 12 | 07289-00080 | CLAMP | 1001- | |
| 13 | 56D-02-12250 | HOSE | 1001- | |
| 14 | 07289-00080 | CLAMP | 1001- |
