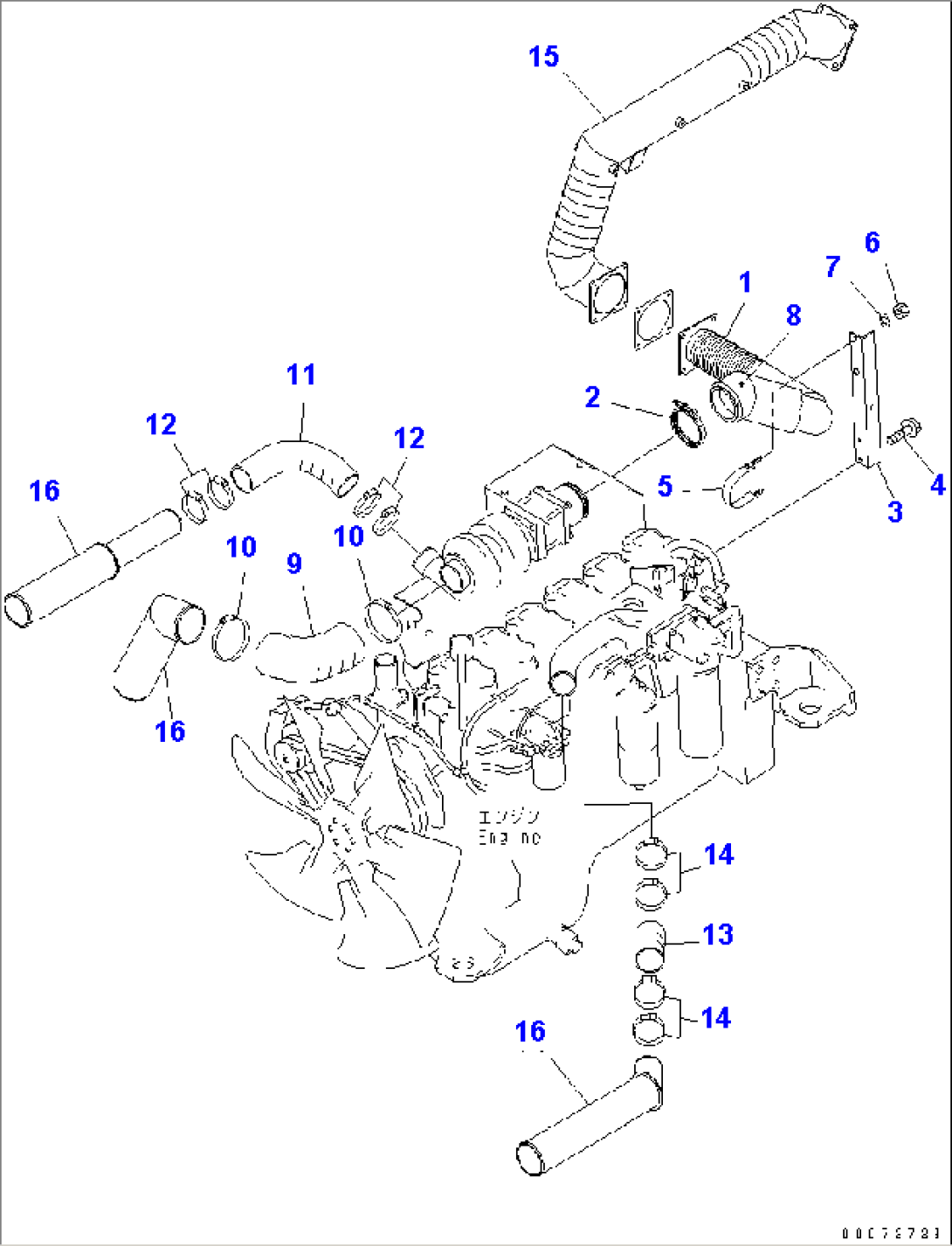

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-02-11111 | TUBE | A10001- | |
| 2 | 6151-11-5361 | CLAMP | A10001- | |
| 3 | 56D-02-11120 | BRACKET | A10001- | |
| 4 | 01435-01020 | BOLT | A10001- | |
| 5 | 56D-02-11810 | CLAMP | A10001- | |
| 6 | 01580-11008 | NUT | A10001- | |
| 7 | 01643-31032 | WASHER | A10001- | |
| 8 | 56D-02-11132 | COVER | A10001- | |
| 9 | 569-02-6E140 | HOSE | A10001- | |
| 10 | 07289-00120 | CLAMP | A10001- | |
| 11 | 6152-12-4930 | HOSE | A10001- | |
| 12 | 07299-00080 | CLAMP | A10001- | |
| 13 | 56D-02-12250 | HOSE | A10001- | |
| 14 | 07299-00080 | CLAMP | A10001- | |
| 15 | (56D-02-12143) | TUBE,(SEE FIG. J3410-01A0) | A10001- | |
| 16 | (56D-02-11142) | TUBE,(SEE FIG. J3510-01A0) | A10001- |
