| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-02-22290 | HOSE | 2001- | |
| 2 | 569-02-6E140 | HOSE | 2001- | |
| 3 | 569-02-82190 | CLAMP | 2116- | |
| 3 | \0\07299-00105 | CLAMP | 2001-2115 | |
| 4 | 569-02-82180 | CLAMP | 2116- | |
| 4 | \0\07299-00120 | CLAMP | 2001-2115 |
- Главная
- Каталог запчастей
- Самосвалы
- Hm400 2 s/n 2001 2632 (ecot3) (for eu)
- Engine related parts
- Engine piping (air intake)(#2001 )
Поиск по каталогу

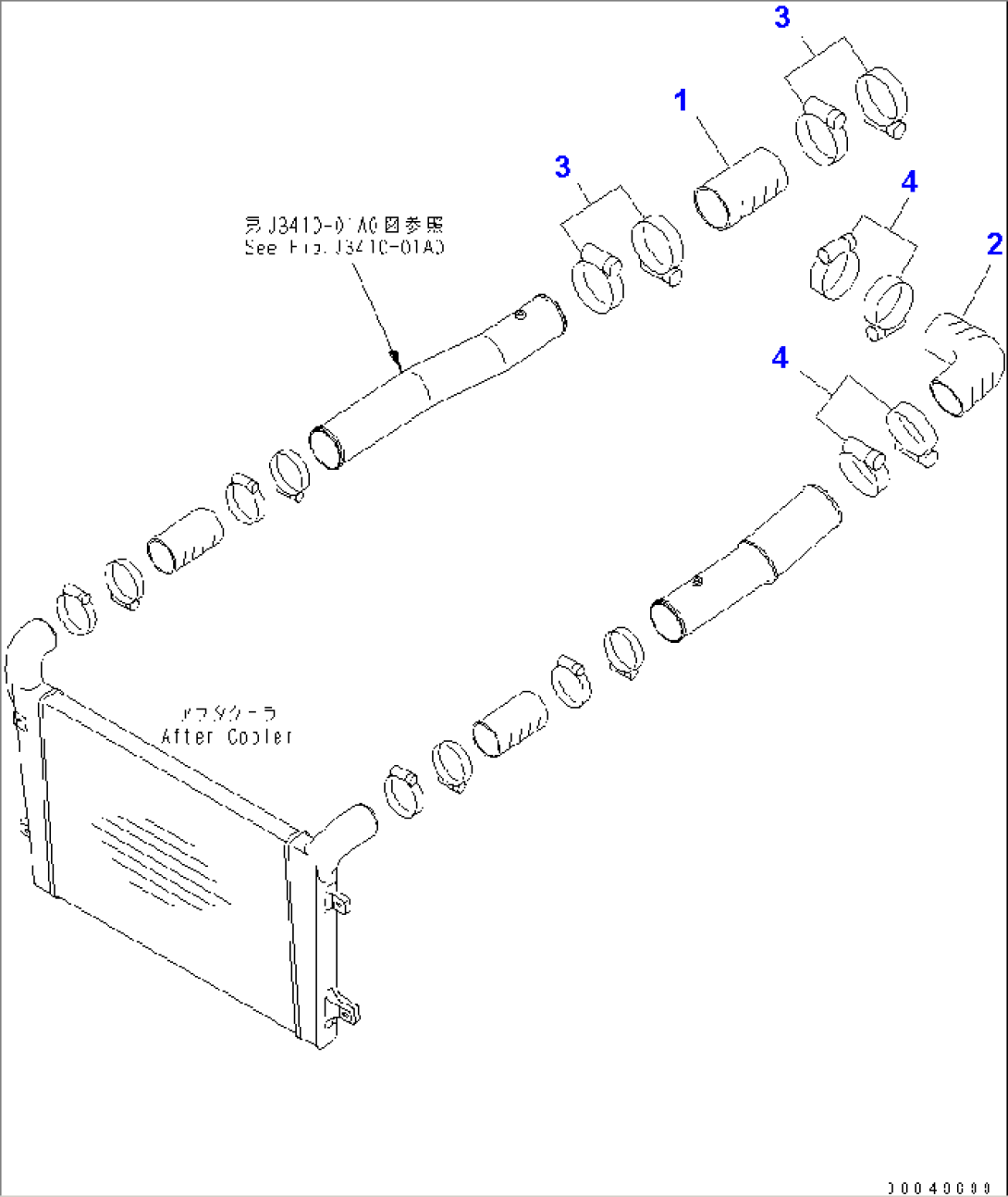

ENGINE PIPING (AIR INTAKE)(#2001-)
