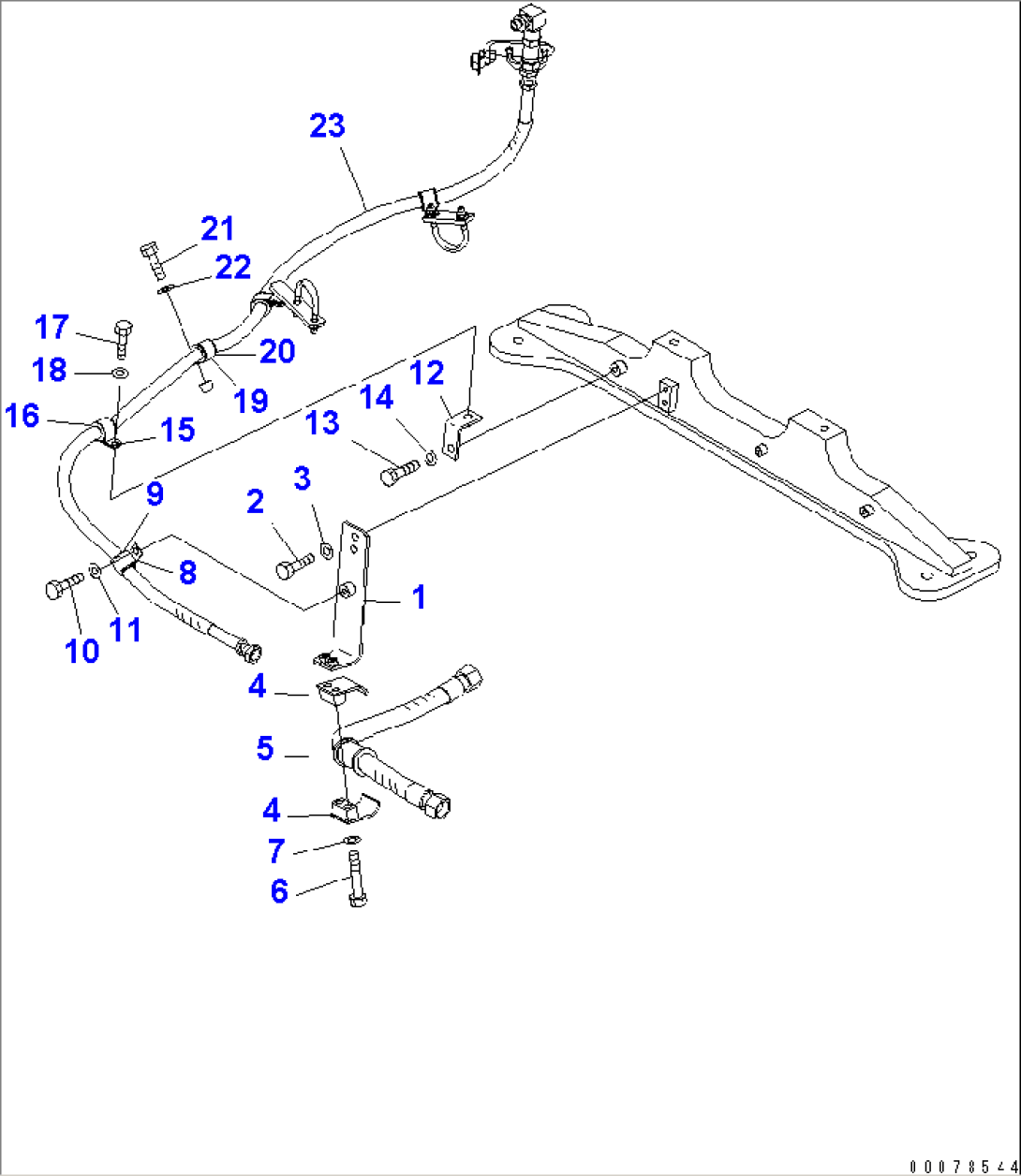

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-95-82322 | PLATE | A10001- | |
| 2 | 01010-81225 | BOLT | A10001- | |
| 3 | 01643-31232 | WASHER | A10001- | |
| 4 | 07094-11024 | CLAMP | A10001- | |
| 5 | 07095-01034 | CUSHION | A10001- | |
| 6 | 01010-81285 | BOLT | A10001- | |
| 7 | 01643-31232 | WASHER | A10001- | |
| 8 | 04434-53212 | CLIP | A10001- | |
| 9 | 07095-20522 | CUSHION | A10001- | |
| 10 | 01010-81220 | BOLT | A10001- | |
| 11 | 01643-31232 | WASHER | A10001- | |
| 12 | 417-855-1321 | PLATE | A10001- | |
| 13 | 01010-81225 | BOLT | A10001- | |
| 14 | 01643-31232 | WASHER | A10001- | |
| 15 | 04434-53212 | CLIP | A10001- | |
| 16 | 07095-20522 | CUSHION | A10001- | |
| 17 | 01010-81225 | BOLT | A10001- | |
| 18 | 01643-31232 | WASHER | A10001- | |
| 19 | 04434-53212 | CLIP | A10001- | |
| 20 | 07095-20522 | CUSHION | A10001- | |
| 21 | 01010-81220 | BOLT | A10001- | |
| 22 | 01643-31232 | WASHER | A10001- | |
| 23 | (02762-00522) | HOSE,(SEE FIG. B0740-03B0) | A10001- |
