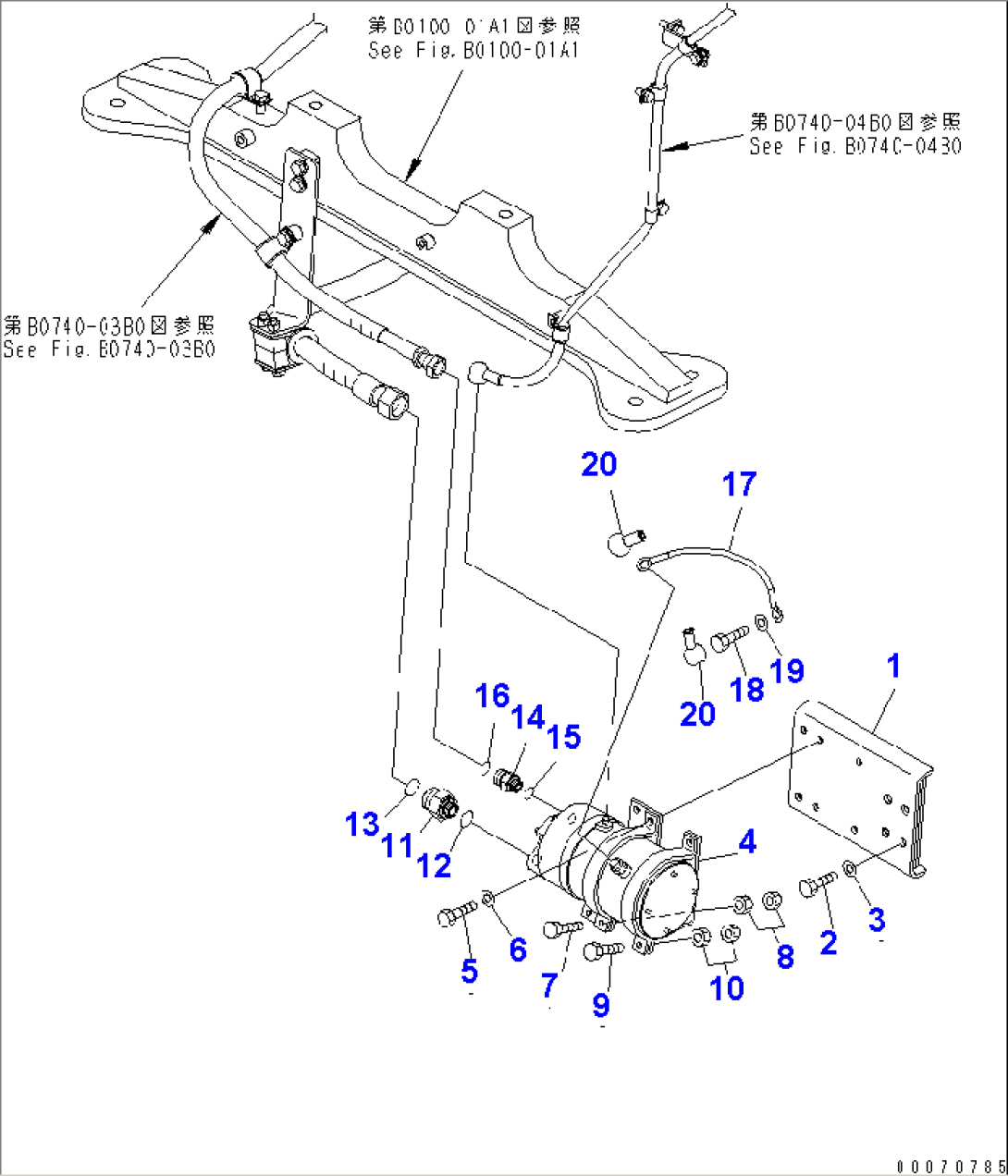

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-95-82311 | BRACKET | 7169- | |
| 2 | 01010-81225 | BOLT | 7169- | |
| 3 | 01643-31232 | WASHER | 7169- | |
| 4 | 600-815-9510 | PRE-LUBE PUMP ASS'Y | 7169- | |
| 5 | 01010-81035 | BOLT | 7169- | |
| 6 | 01643-31032 | WASHER | 7169- | |
| 7 | 01010-80840 | BOLT | 7169- | |
| 8 | 01580-10806 | NUT | 7169- | |
| 9 | 01010-80840 | BOLT | 7169- | |
| 10 | 01580-10806 | NUT | 7169- | |
| 11 | 561-95-82350 | JOINT | 7169- | |
| 12 | 207-62-64740 | O-RING | 7169- | |
| 13 | 6216-74-6220 | O-RING | 7169- | |
| 14 | 561-95-82380 | JOINT | 7169- | |
| 15 | 02896-61015 | O-RING | 7169- | |
| 16 | 6735-21-4160 | O-RING | 7169- | |
| 17 | 561-95-82440 | WIRING HARNESS | 7169- | |
| 18 | 01010-81220 | BOLT | 7169- | |
| 19 | 01643-31232 | WASHER | 7169- | |
| 20 | 08038-02027 | CAP | 7169- |
