| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-03-22141 | HOSE | 52406- | |
| 2 | 07299-00095 | CLAMP | 52406- | |
| 3 | 426-03-22521 | TUBE | 52406- | |
| 4 | 07042-70108 | PLUG | 52406- | |
| 5 | 6693-62-9242 | GASKET | 52406- | |
| 6 | 01010-81035 | BOLT | 52406- | |
| 7 | 01643-51032 | WASHER | 52406- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa600 3 s/n 50001 up
- Engine related parts
- Engine (radiator piping)(#52406 )
Поиск по каталогу

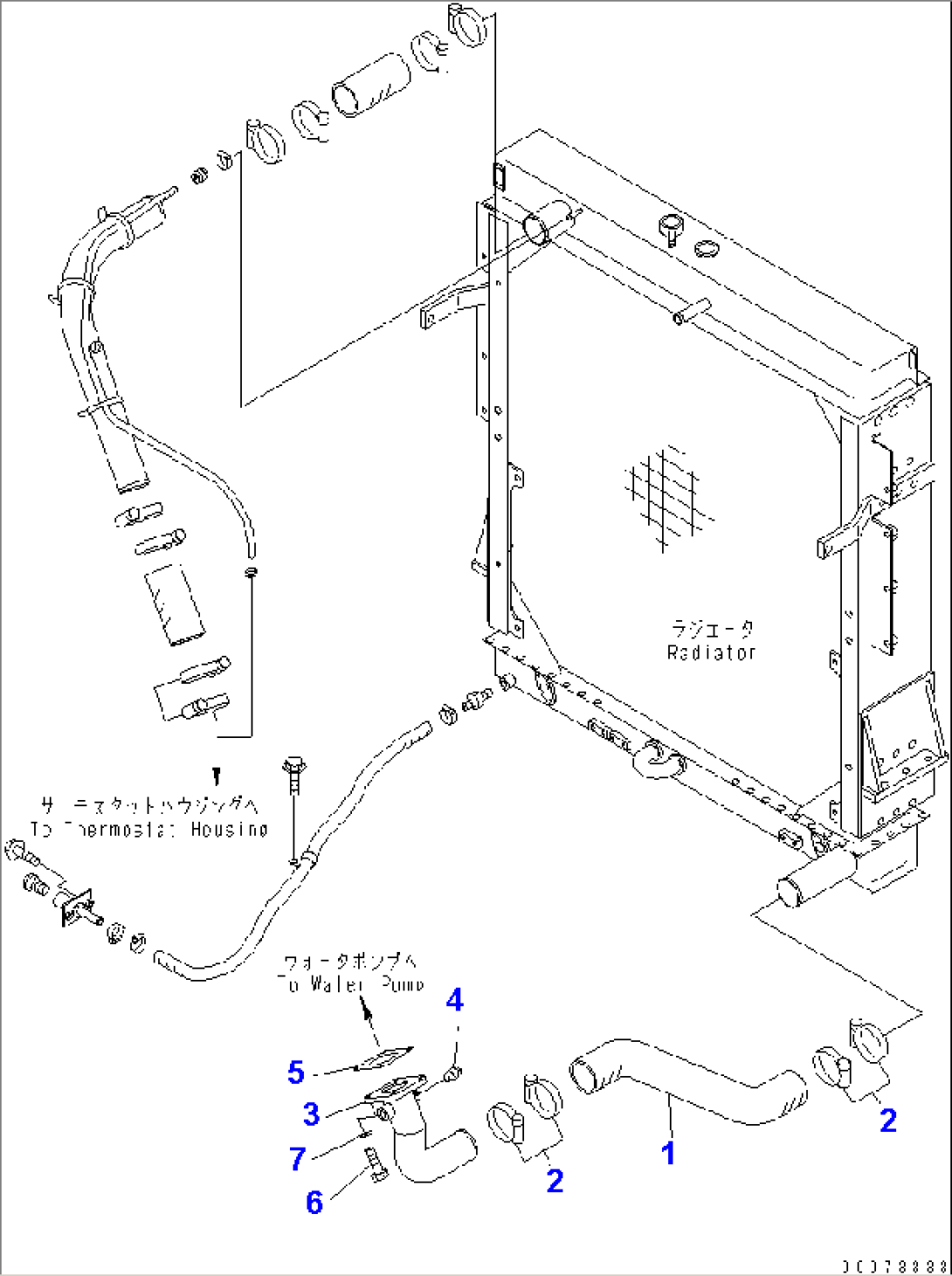

ENGINE (RADIATOR PIPING)(#52406-)
