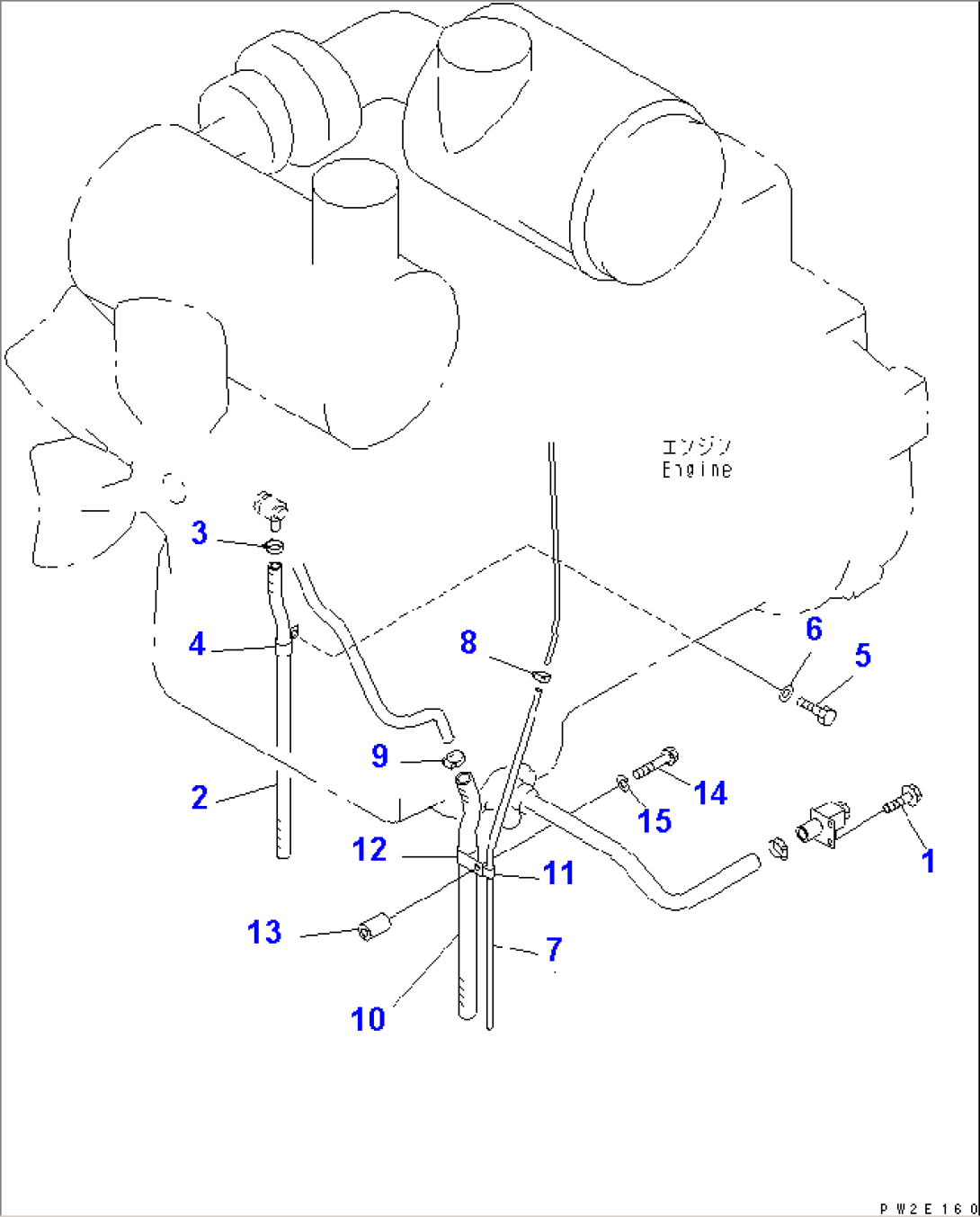

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01435-01025 | BOLT | 11087- | |
| 2 | 07260-21471 | HOSE | 11087- | |
| 3 | 07281-00259 | CLAMP | 11087- | |
| 4 | 04434-52512 | CLIP | 11087- | |
| 5 | 01010-81020 | BOLT | 11087- | |
| 6 | 01643-31032 | WASHER | 11087- | |
| 7 | 07270-01075 | TUBE | 11087- | |
| 8 | 07281-00167 | CLAMP | 11087- | |
| 9 | 07260-22080 | HOSE | 11087- | |
| 10 | 07281-00359 | CLAMP | 11087- | |
| 11 | 04434-53210 | CLIP | 11087- | |
| 12 | 04434-51310 | CLIP | 11087- | |
| 13 | 144-10-17250 | SEAT | 11087- | |
| 14 | 01010-81050 | BOLT | 11087- | |
| 15 | 01643-31032 | WASHER | 11087- |
