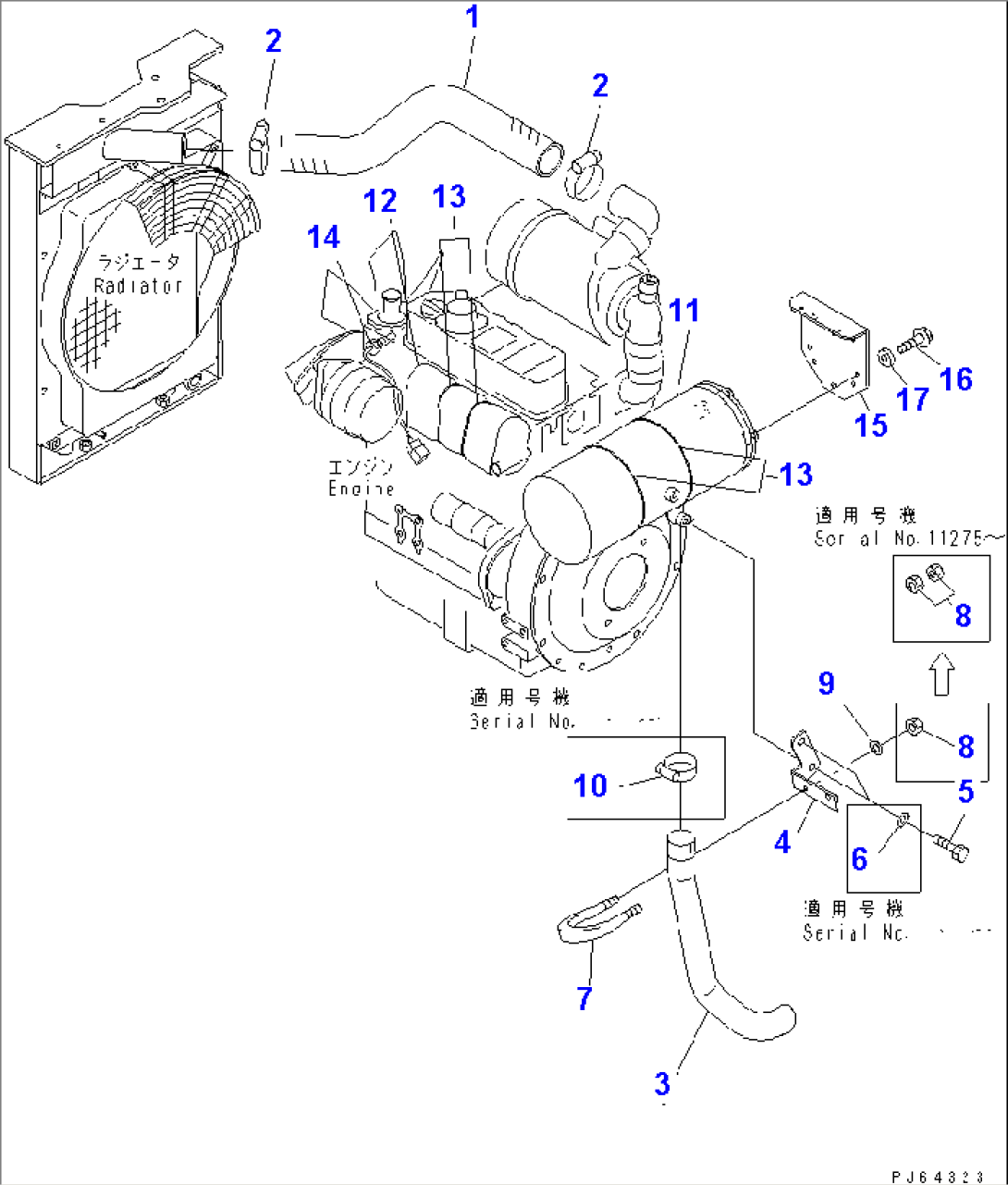

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21U-01-31313 | HOSE | 10001- | |
| 2 | 07280-06429 | CLAMP | 10001- | |
| 3 | 21U-01-32210 | PIPE,EXHAUST | 10001- | |
| 4 | 21U-01-32222 | BRACKET | 11005- | |
| 4 | \0\21U-01-32221 | BRACKET | .-11004 | |
| 4 | \0\21U-01-32220 | BRACKET | 10001-. | |
| 5 | 01010-81025 | BOLT | .- | |
| 5 | 01010-81030 | BOLT | 10001-. | |
| 6 | 01643-31032 | WASHER | .- | |
| 7 | 07283-34346 | CLIP | 11275- | |
| 7 | 07283-24346 | CLIP | 10001-11274 | |
| 8 | 01582-11008 | NUT | 11275- | |
| 8 | 01583-11006 | NUT | 10001-11274 | |
| 9 | 01643-31032 | WASHER | 10001- | |
| 10 | YM121120-13590 | CLAMP ASS'Y | 10001-. | |
| 11 | 21U-01-31391 | SHEET | 10001- | |
| 12 | 21U-01-32160 | SHEET | 10001- | |
| 13 | FF7817-02420 | WIRE | 10001- | |
| 14 | 7861-92-3320 | SENSOR | 10001- | |
| 15 | 21X-01-21410 | COVER | 10001- | |
| 16 | 01435-00820 | BOLT | 10001- | |
| 17 | 6201-81-6560 | SPACER | 10001- |
