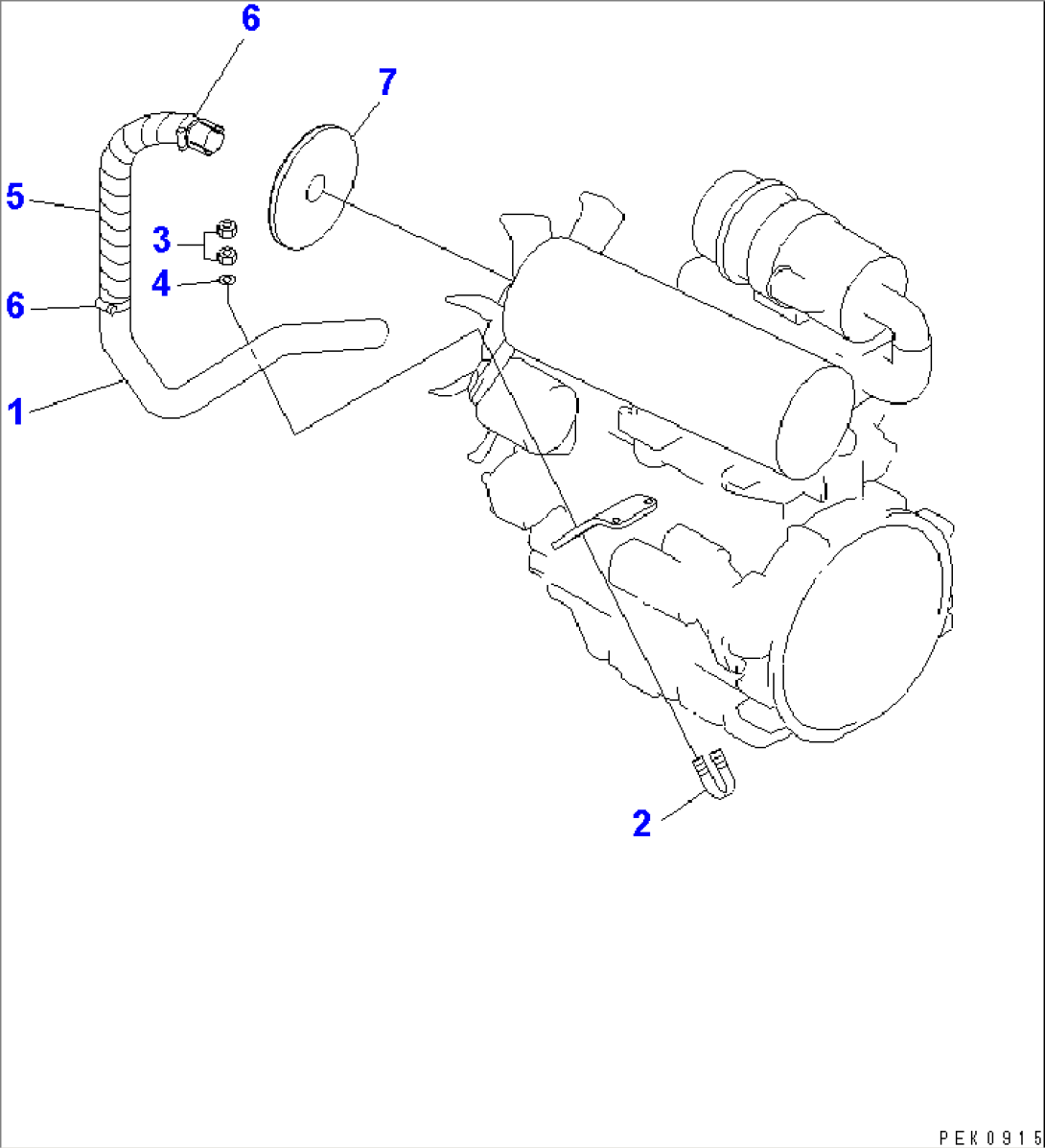

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20T-01-87511 | PIPE | 31710- | |
| 1 | 20T-01-87510 | PIPE | 30001-31709 | |
| 2 | 07283-34346 | CLIP | 30001- | |
| 3 | 01583-11006 | NUT | 30001- | |
| 4 | 01643-31032 | WASHER | 30001- | |
| 5 | 20T-01-81530 | TAPE | 30001- | |
| 6 | 07281-00549 | CLAMP | 30001- | |
| 7 | 20T-01-81520 | SHEET | 30001- |
