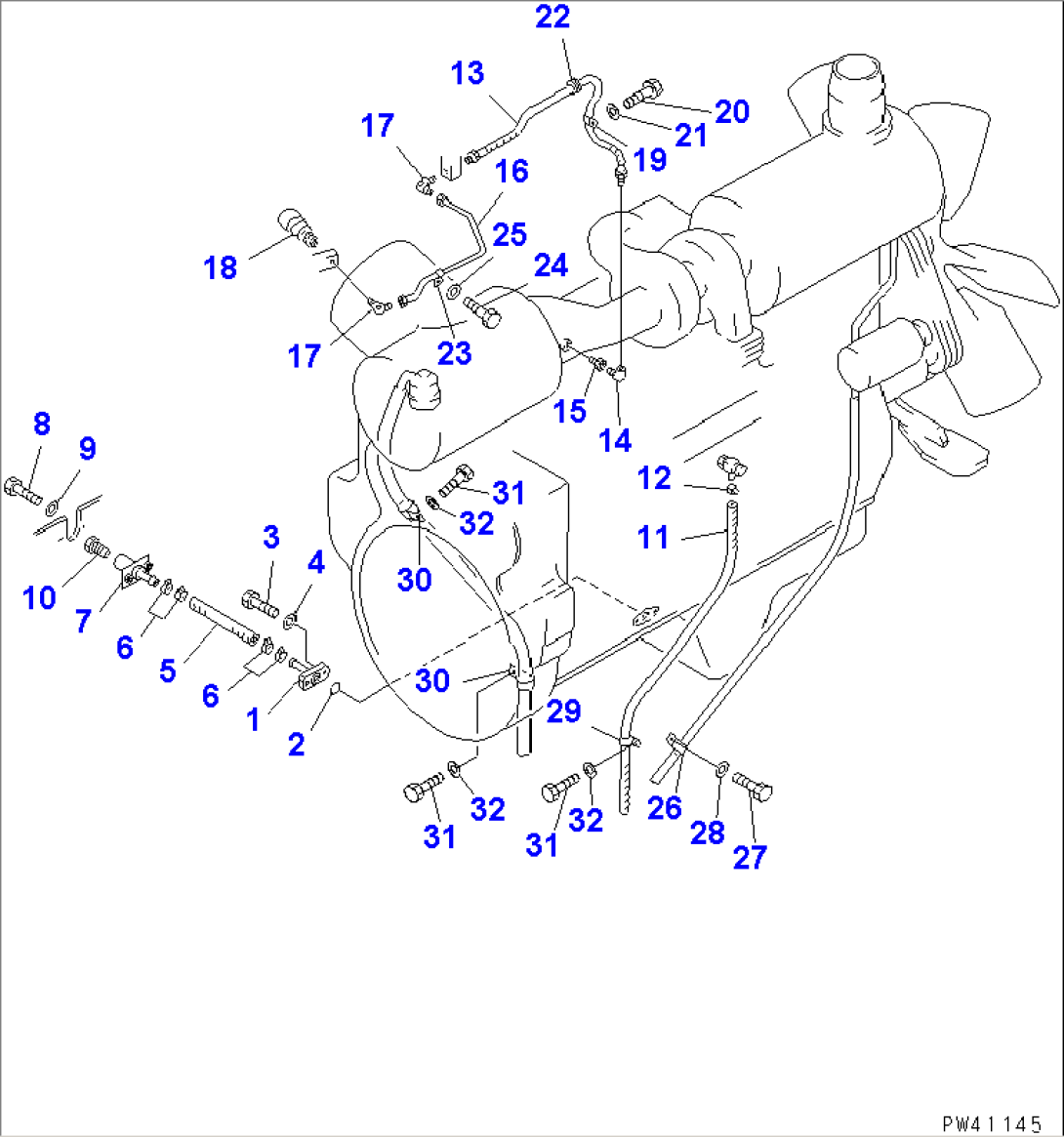

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-01-11211 | TUBE | 10001- | |
| 2 | 07000-43025 | O-RING | 10001- | |
| 3 | 01010-51030 | BOLT | 10001- | |
| 4 | 01643-31032 | WASHER | 10001- | |
| 5 | 426-01-12410 | HOSE | 10001- | |
| 6 | 07281-00359 | CLAMP | 10001- | |
| 7 | 426-01-11231 | TUBE | 10001- | |
| 8 | 01010-51025 | BOLT | 10001- | |
| 9 | 01643-31032 | WASHER | 10001- | |
| 10 | 424-01-11110 | PLUG | 10001- | |
| 11 | 09483-10512 | HOSE | 10001- | |
| 12 | 07281-00259 | CLAMP | 10001- | |
| 13 | 08671-40090 | HOSE | 10001- | |
| 14 | 08671-50721 | ELBOW | 10001- | |
| 15 | 20S-01-11310 | NIPPLE | 10001- | |
| 16 | 426-01-11250 | TUBE | 10001- | |
| 17 | 07217-50510 | ELBOW | 10001- | |
| 18 | 08670-02001 | INDICATOR,DUST | 10001- | |
| 19 | 04434-51410 | CLIP | 10001- | |
| 20 | 01010-51016 | BOLT | 10001- | |
| 21 | 01643-31032 | WASHER | 10001- | |
| 22 | 08037-01610 | GROMMET | 10001- | |
| 23 | 04434-50510 | CLIP | 10001- | |
| 24 | 01010-51016 | BOLT | 10001- | |
| 25 | 01643-31032 | WASHER | 10001- | |
| 26 | 04434-51810 | CLIP | 10001- | |
| 27 | 01010-51025 | BOLT | 10001- | |
| 28 | 01643-31032 | WASHER | 10001- | |
| 29 | 04434-52511 | CLIP | 10001- | |
| 30 | 08036-03014 | CLIP | 10001- | |
| 31 | 01010-51020 | BOLT | 10001- | |
| 32 | 01643-31032 | WASHER | 10001- |
