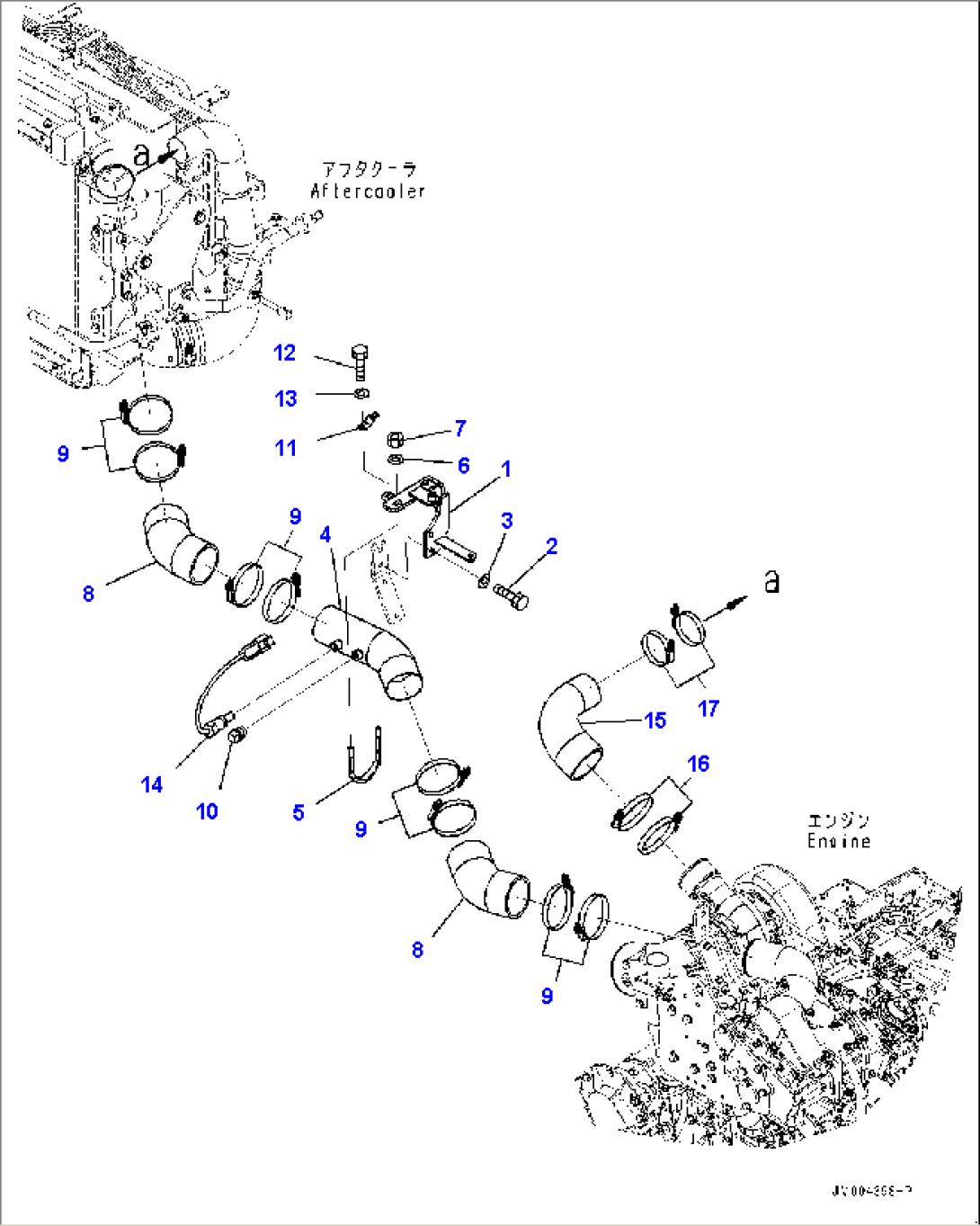

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-02-3A411 | Bracket | 5001- | |
| 2 | 01010-81240 | Bolt | 5001- | |
| 3 | 01643-31232 | Washer | 5001- | |
| 4 | 56B-02-3A150 | Tube | 5001- | |
| 5 | 07283-31079 | Clip, Pipe | 5001- | |
| 6 | 01643-31232 | Washer | 5001- | |
| 7 | 01597-01211 | Nut | 5001- | |
| 8 | 56B-02-32120 | Hose | 5001- | |
| 9 | 07299-00120 | Clamp | 5001- | |
| 10 | 07042-20108 | Plug | 5001- | |
| 11 | 08193-21012 | Clip | 5001- | |
| 12 | 01010-81020 | Bolt | 5001- | |
| 13 | 01643-31032 | Washer | 5001- | |
| 14 | 7861-93-3520 | Sensor, Temperature | 5001- | |
| 15 | 56B-02-32110 | Hose | 5001- | |
| 16 | 07299-00120 | Clamp | 5001- | |
| 17 | 07299-00095 | Clamp, Hose | 5001- |
