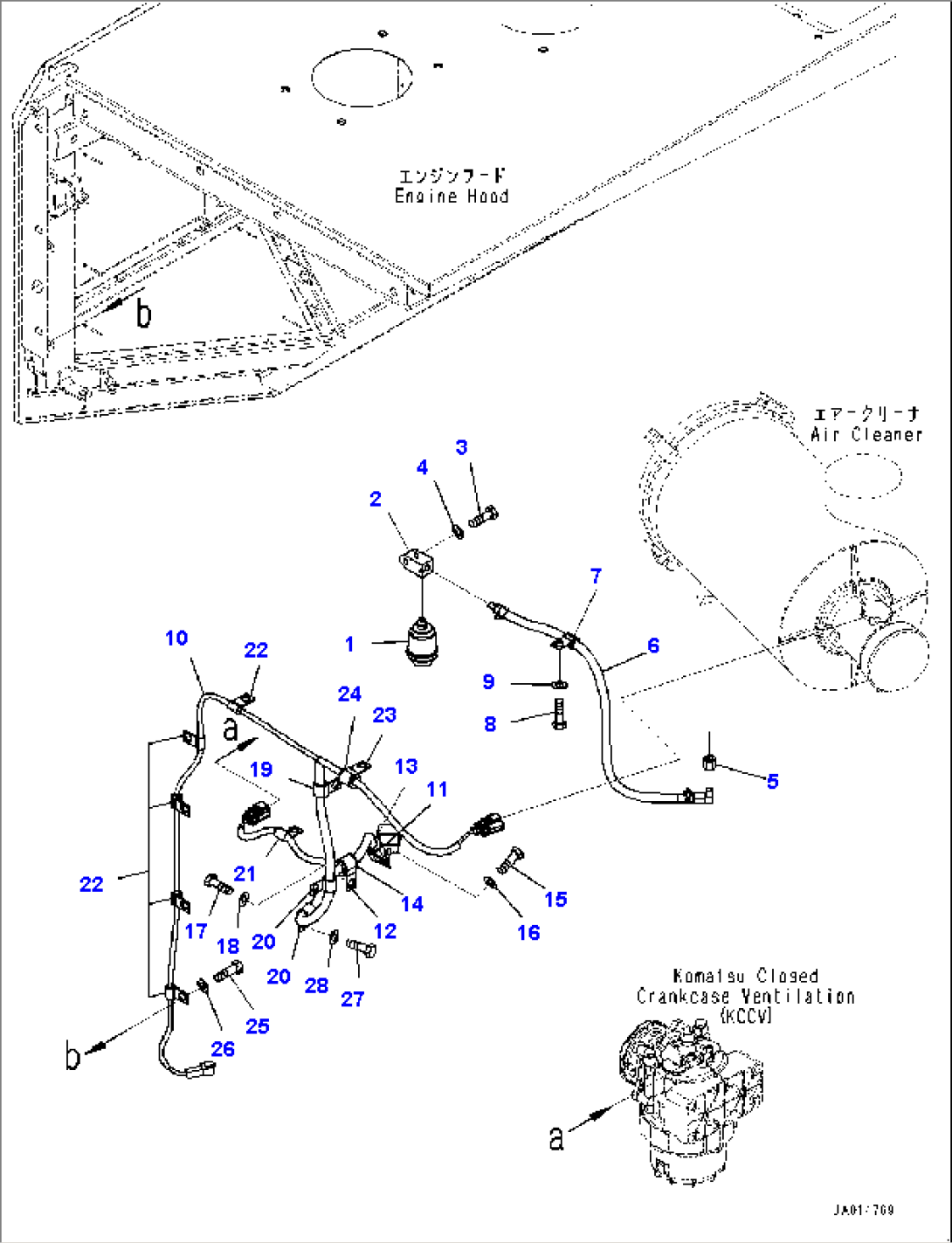

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08672-01000 | Indicator | 80001- | |
| 2 | 418-06-42170 | Block | 80001- | |
| 3 | 01010-81045 | Bolt | 80001- | |
| 4 | 01643-31032 | Washer | 80001- | |
| 5 | 6743-81-7530 | Adapter | 80001- | |
| 6 | 08671-50080 | Hose | 80001- | |
| 7 | 04434-51412 | Clip | 80001- | |
| 8 | 01010-81020 | Bolt | 80001- | |
| 9 | 01643-31032 | Washer | 80001- | |
| 10 | 418-06-52440 | Wiring Harness | 80001- | |
| 11 | 04434-52112 | Clip | 80001- | |
| 12 | 04434-52112 | Clip | 80001- | |
| 13 | 07095-20314 | Cushion | 80001- | |
| 14 | 07095-20314 | Cushion | 80001- | |
| 15 | 01010-81025 | Bolt | 80001- | |
| 16 | 01643-31032 | Washer | 80001- | |
| 17 | 01010-81025 | Bolt | 80001- | |
| 18 | 01643-31032 | Washer | 80001- | |
| 19 | 04434-51412 | Clip | 80001- | |
| 20 | 04434-51412 | Clip | 80001- | |
| 21 | 04434-51012 | Clip | 80001- | |
| 22 | 04434-50812 | Clip | 80001- | |
| 23 | 04434-51712 | Clip | 80001- | |
| 24 | 07095-20211 | Cushion | 80001- | |
| 25 | 01010-81020 | Bolt | 80001- | |
| 26 | 01643-31032 | Washer | 80001- | |
| 27 | 01010-81020 | Bolt | 80001- | |
| 28 | 01643-31032 | Washer | 80001- |
